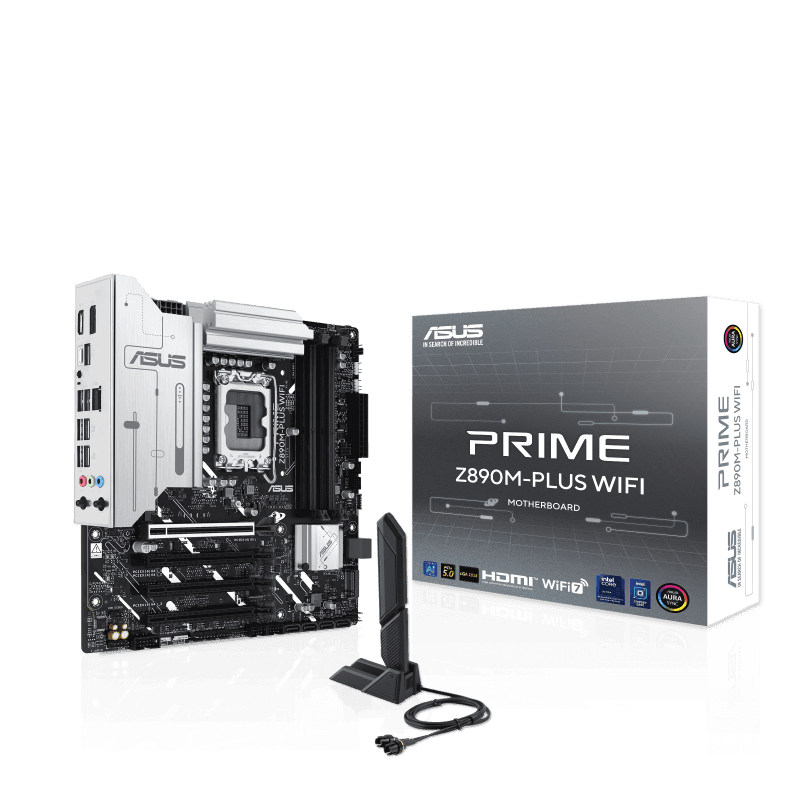

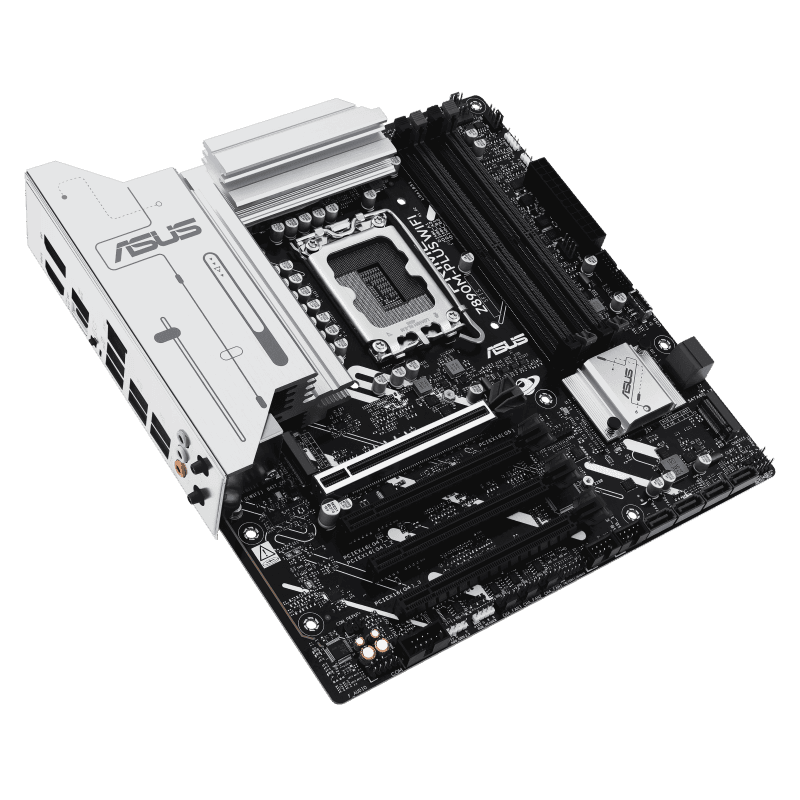

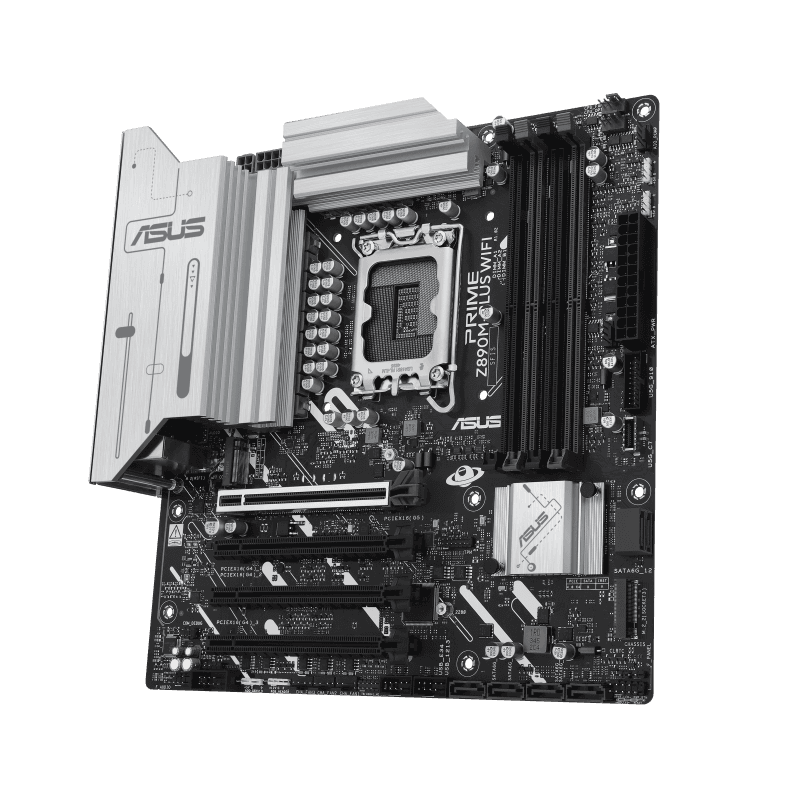

Placa de baza ASUS PRIME Z890M-PLUS WIFI, Socket 1851, DDR5, Micro-ATX

ASUS · NOD-PRIME Z890M-PLUS WIFI

Placa de baza ASUS PRIME Z890M-PLUS WIFI, Socket 1851, DDR5, Micro-ATX

Name: Placa de baza ASUS PRIME Z890M-PLUS WIFI, Socket 1851, DDR5, Micro-ATX
Brand: ASUS
SKU: NOD-PRIME Z890M-PLUS WIFI
Price: 1797 RON
Availability: BackOrder

Placa de Baza ASUS PRIME Z890M-PLUS WIFI LGA1851 4x DDR5, 1x DP 1x HDMI 1x USB Type-c, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 (suporta x4) 2x PCIE 4.0 x16 (suporta x1), 3x M.2, 6x SATA 6GB/s, mATX

1.485 lei

prețuri fără TVA · 1.797 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.485 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS PRIME Z890M-PLUS WIFI, Socket 1851, DDR5, Micro-ATX

SKU: NOD-PRIME Z890M-PLUS WIFI

Bluetooth: Nu
12V power connector: Yes
ATX Power connector (24-pin): Yes
Audio jacks: 3
Audio output channels: 7.1 channels
BIOS: 256 Mbit AMI UEFI BIOS

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.485 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-PRIME Z890M-PLUS WIFI

CategorieComponente

BluetoothNu

12V power connectorYes

ATX Power connector (24-pin)Yes

Audio jacks3

Audio output channels7.1 channels

BIOS256 Mbit AMI UEFI BIOS

BIOS FlashbackDa

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.4

Cables includedSATA

Canale audio7.1

Capacitate maxima memorie RAM192 GB

Chassis intrusion connectorYes

ChipsetZ890

Chipset audioRealtek

Chipset audio integratRealtek

Chipset reteaRealtek 2.5GbE LAN

Compatible processor seriesIntel Core Ultra (Series 2)

Component forPC

Conectori speciali1 x Wi-Fi Module

CPU fan connectorYes

CPU Socket1851

Depth24.4 mm

Dimensiuni (L x l, cm)24.4 x 24.4 cm

DisplayPort1

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityNon-ECC

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

FormatmATX

Frecvente suportate8666+ (OC) MHz

Front panel audio connectorYes

GamingNu

HDMI1

HDMI ports quantity1

Header USB 3.0Da

Interfata graficaPCI Express x16 4.0

Maximum internal memory192 GB

MB-Formatmicro-ATX

MB-SocketLGA1851

Memorie maxima192 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetZ890

Model memorieDDR5

Motherboard chipsetIntel Z890

Motherboard chipset familyIntel

Motherboard form factormicro ATX

mSATA ports quantity0

NGFF (M.2)3

Numar sloturi memorie4

Number of chassis fan connectors4

Number of COM connectors1

Number of HDDs supported6

Number of M.2 (M) slots3

Number of memory slots4

Number of SATA connectors0

Number of SATA II connectors0

Number of SATA III connectors6

Number of storage drives supported9

On-board graphics cardNo

Onboard-CPUNo

Package depth275 mm

Package height67.5 mm

Package weight1.64 kg

Package width275 mm

Parallel processing technology supportNot supported

PCI0

PCI Express 4.03 (x4 / x1 / x1)

PCI Express 5.01 (x16)

PCI Express x16 (Gen 4.x) slots3

PCI Express x16 (Gen 5.x) slots1

PCI-Ex10

PCI-Ex164

Placa audio integrata7.1 Audio

Placa retea integrata10/100/1000/2500 Mbps

Placa video integrataNecesita procesor cu tehnologia Intel Integrated Graphics

Procesoare suportateIntel Core Ultra a doua serie

Processor manufacturerIntel

Processor socketLGA 1851 (Socket V1)

Producator chipsetIntel

Product colourAluminium, Black

RAID0, 1, 5, 10

RAID levels0, 1, 5, 10

RAID supportYes

RAM-Slots4

Recomandat GamingDa

RJ-451

RJ-45 LAN1

S/PDIF out connectorYes

SATA III6

Screws includedYes

Serial-or-ParalelNo/No

Sloturi M.23

Sloturi memorie4

Soclu ProcesorSocket 1851

Suport audio7.1

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1851

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

TehnologieDual channel

ThunderboltNu

Thunderbolt headers1

Tip MemorieDDR5

Top Wi-Fi standardWi-Fi 7 (802.11be)

TPM connectorYes

Unbuffered memoryYes

USB 2.02

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 Type-C ports quantity1

USB 3.2 Gen1 tip A4

USB 3.2 Gen2 tip A1

USB Tip C1 x USB 3.2 (Gen2x2)

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity0

Wi-FIYes

Wi-Fi standardsWi-Fi 7 (802.11be)

Width244 mm

WiFi-AP antenna jack1

Windows operating systems supportedWindows 11

WirelessDa

Specificații

Brand	ASUS
Cod produs	NOD-PRIME Z890M-PLUS WIFI
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio jacks	3
Audio output channels	7.1 channels
BIOS	256 Mbit AMI UEFI BIOS
BIOS Flashback	Da
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.4
Cables included	SATA
Canale audio	7.1
Capacitate maxima memorie RAM	192 GB
Chassis intrusion connector	Yes
Chipset	Z890
Chipset audio	Realtek
Chipset audio integrat	Realtek
Chipset retea	Realtek 2.5GbE LAN
Compatible processor series	Intel Core Ultra (Series 2)
Component for	PC
Conectori speciali	1 x Wi-Fi Module
CPU fan connector	Yes
CPU Socket	1851
Depth	24.4 mm
Dimensiuni (L x l, cm)	24.4 x 24.4 cm
DisplayPort	1
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Format	mATX
Frecvente suportate	8666+ (OC) MHz
Front panel audio connector	Yes
Gaming	Nu
HDMI	1
HDMI ports quantity	1
Header USB 3.0	Da
Interfata grafica	PCI Express x16 4.0
Maximum internal memory	192 GB
MB-Format	micro-ATX
MB-Socket	LGA1851
Memorie maxima	192 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	Z890
Model memorie	DDR5
Motherboard chipset	Intel Z890
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
mSATA ports quantity	0
NGFF (M.2)	3
Numar sloturi memorie	4
Number of chassis fan connectors	4
Number of COM connectors	1
Number of HDDs supported	6
Number of M.2 (M) slots	3
Number of memory slots	4
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	6
Number of storage drives supported	9
On-board graphics card	No
Onboard-CPU	No
Package depth	275 mm
Package height	67.5 mm
Package weight	1.64 kg
Package width	275 mm
Parallel processing technology support	Not supported
PCI	0
PCI Express 4.0	3 (x4 / x1 / x1)
PCI Express 5.0	1 (x16)
PCI Express x16 (Gen 4.x) slots	3
PCI Express x16 (Gen 5.x) slots	1
PCI-Ex1	0
PCI-Ex16	4
Placa audio integrata	7.1 Audio
Placa retea integrata	10/100/1000/2500 Mbps
Placa video integrata	Necesita procesor cu tehnologia Intel Integrated Graphics
Procesoare suportate	Intel Core Ultra a doua serie
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Producator chipset	Intel
Product colour	Aluminium, Black
RAID	0, 1, 5, 10
RAID levels	0, 1, 5, 10
RAID support	Yes
RAM-Slots	4
Recomandat Gaming	Da
RJ-45	1
RJ-45 LAN	1
S/PDIF out connector	Yes
SATA III	6
Screws included	Yes
Serial-or-Paralel	No/No
Sloturi M.2	3
Sloturi memorie	4
Soclu Procesor	Socket 1851
Suport audio	7.1
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1851
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Tehnologie	Dual channel
Thunderbolt	Nu
Thunderbolt headers	1
Tip Memorie	DDR5
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0	2
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
USB 3.2 Gen1 tip A	4
USB 3.2 Gen2 tip A	1
USB Tip C	1 x USB 3.2 (Gen2x2)
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	0
Wi-FI	Yes
Wi-Fi standards	Wi-Fi 7 (802.11be)
Width	244 mm
WiFi-AP antenna jack	1
Windows operating systems supported	Windows 11
Wireless	Da

Configurație

Placa de Baza ASUS PRIME Z890M-PLUS WIFI LGA1851 4x DDR5, 1x DP 1x HDMI 1x USB Type-c, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 (suporta x4) 2x PCIE 4.0 x16 (suporta x1), 3x M.2, 6x SATA 6GB/s, mATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza ASUS PRIME Z890M-PLUS WIFI LGA1851 4x DDR5, 1x DP 1x HDMI 1x USB Type-c, 1x PCIE 5.0 x16 1x PCIE 4.0 x16 (suporta x4) 2x PCIE 4.0 x16 (suporta x1), 3x M.2, 6x SATA 6GB/s, mATX

Bluetooth: Nu12V power connector: YesATX Power connector (24-pin): YesAudio jacks: 3Audio output channels: 7.1 channelsBIOS: 256 Mbit AMI UEFI BIOS
