ASUS · NOD-PRIME H810M-A-CSM

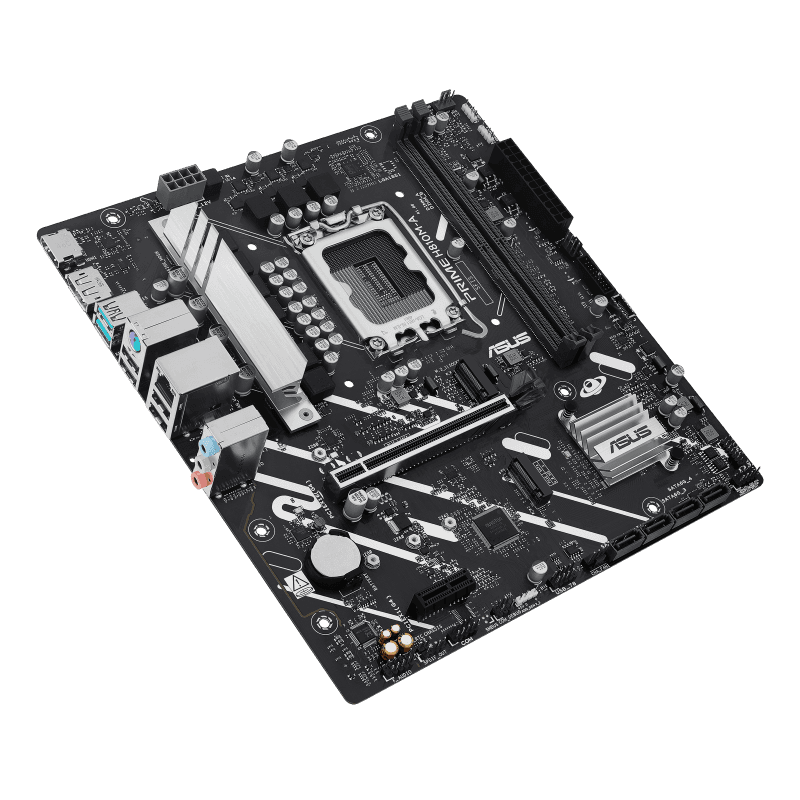

Placa de baza ASUS PRIME H810M-A-CSM, Socket 1851, DDR5, Micro-ATX

Name: Placa de baza ASUS PRIME H810M-A-CSM, Socket 1851, DDR5, Micro-ATX
Brand: ASUS
SKU: NOD-PRIME H810M-A-CSM
Price: 964 RON
Availability: BackOrder

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

797 lei

prețuri fără TVA · 964 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.797 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS PRIME H810M-A-CSM, Socket 1851, DDR5, Micro-ATX

SKU: NOD-PRIME H810M-A-CSM

Bluetooth: Nu
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
ATX Power connector (24-pin): Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

797 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-PRIME H810M-A-CSM

CategorieComponente

BluetoothNu

1st M.2 highest PCI Express generation4.0

1st M.2 largest key size2280

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size2280

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Canale audio7.1

Chipset audio integratRealtek

Compatible processor seriesIntel Core Ultra (Series 2)

Component forPC

CPU fan connectorYes

Depth222 mm

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingNu

HDMIDa

HDMI ports quantity1

HDMI version2.1

Height37 mm

LAN controllerIntel I219V

Line-inYes

Maximum internal memory128 GB

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetH810

Motherboard chipsetIntel H810

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of chassis fan connectors2

Number of COM connectors1

Number of CPU fan connectors1

Number of EPS power connectors (8-pin)1

Number of HDDs supported4

Number of M.2 (E) slots1

Number of M.2 (M) slots2

Number of memory slots2

Number of RGB LED pin headers3

Number of SATA III connectors4

Number of storage drives supported6

Onboard-CPUNo

Package depth263 mm

Package height51.5 mm

Package weight782 g

Package width270 mm

Parallel processing technology supportNot supported

PCI0

PCI Express x1 (Gen 4.x) slots1

PCI Express x16 (Gen 4.x) slots1

Power source typeATX

Processor manufacturerIntel

Processor socketLGA 1851 (Socket V1)

PS/2 ports quantity1

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out connectorYes

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket 1851

Supported memory clock speed (max)6400 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1851

Supported storage drive interfacesM.2, PCI Express 4.0, SATA III

Supported storage drive typesHDD & SSD

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 4.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors1

USB 2.0 ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI/DP

Wake-on-LAN readyYes

Weight534 g

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10 x64, Windows 11

WirelessNu

Specificații

Brand	ASUS
Cod produs	NOD-PRIME H810M-A-CSM
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Canale audio	7.1
Chipset audio integrat	Realtek
Compatible processor series	Intel Core Ultra (Series 2)
Component for	PC
CPU fan connector	Yes
Depth	222 mm
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Nu
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Height	37 mm
LAN controller	Intel I219V
Line-in	Yes
Maximum internal memory	128 GB
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	H810
Motherboard chipset	Intel H810
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of chassis fan connectors	2
Number of COM connectors	1
Number of CPU fan connectors	1
Number of EPS power connectors (8-pin)	1
Number of HDDs supported	4
Number of M.2 (E) slots	1
Number of M.2 (M) slots	2
Number of memory slots	2
Number of RGB LED pin headers	3
Number of SATA III connectors	4
Number of storage drives supported	6
Onboard-CPU	No
Package depth	263 mm
Package height	51.5 mm
Package weight	782 g
Package width	270 mm
Parallel processing technology support	Not supported
PCI	0
PCI Express x1 (Gen 4.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Power source type	ATX
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
PS/2 ports quantity	1
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out connector	Yes
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket 1851
Supported memory clock speed (max)	6400 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1851
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 4.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI/DP
Wake-on-LAN ready	Yes
Weight	534 g
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11
Wireless	Nu

Configurație

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza ASUS PRIME H810M-A-CSM LGA 1851, 2x DDR5, 1x DP 1x HDMI 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Bluetooth: Nu1st M.2 highest PCI Express generation: 4.01st M.2 largest key size: 22802nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 2280ATX Power connector (24-pin): Yes
