ASUS · NOD-90MB1N00-M0EAY0

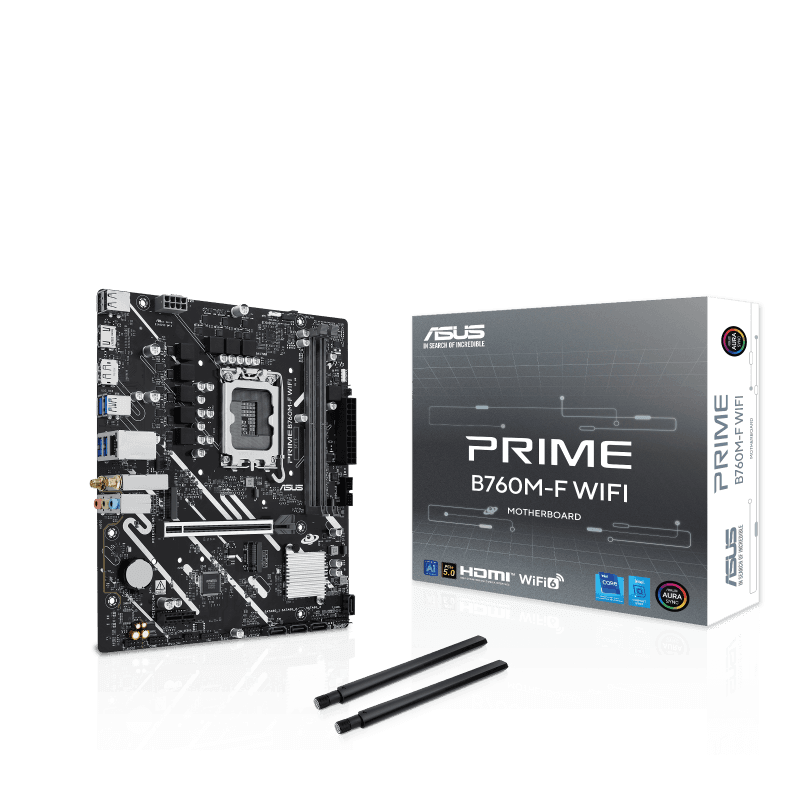

Placa de baza ASUS PRIME B760M-F WIFI, Socket 1700, DDR5, Micro-ATX

Name: Placa de baza ASUS PRIME B760M-F WIFI, Socket 1700, DDR5, Micro-ATX
Brand: ASUS
SKU: NOD-90MB1N00-M0EAY0
Price: 872 RON
Availability: BackOrder

PLaca de baza ASUS PRIME B760M-F WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

721 lei

prețuri fără TVA · 872 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.721 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS PRIME B760M-F WIFI, Socket 1700, DDR5, Micro-ATX

SKU: NOD-90MB1N00-M0EAY0

Bluetooth: Da
12V power connector: Yes
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

721 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-90MB1N00-M0EAY0

CategorieComponente

BluetoothDa

12V power connectorYes

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

BIOS memory size128 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Component forPC

CPU fan connectorYes

Depth211 mm

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

GamingNu

HDMIDa

HDMI ports quantity1

Height36 mm

Maximum internal memory96 GB

Maximum number of SMP processors1

MB-Formatmicro-ATX

MB-Socket1700

Memorie maxima96 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetB760

Motherboard chipsetIntel B760

Motherboard chipset familyIntel

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of chassis fan connectors1

Number of COM connectors1

Number of HDDs supported4

Number of M.2 (M) slots2

Number of memory slots2

Number of SATA III connectors4

Number of storage drives supported6

Onboard-CPUYes

Package depth263 mm

Package height51.5 mm

Package weight877 g

Package width270 mm

Parallel processing technology supportNot supported

PCI3

PCI Express x1 (Gen 4.x) slots2

PCI Express x16 (Gen 4.x) slots1

PCI-Ex163

Processor manufacturerIntel

Processor socketLGA 1700

PS/2 ports quantity1

RAID levels0, 1, 5, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out connectorYes

S/PDIF out portYes

Sloturi M.22

Soclu ProcesorSocket 1700

Supported memory clock speed (max)5333 MHz

Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1700

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 4.0 x16

Top Wi-Fi standardWi-Fi 6 (802.11ax)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity1

Weight496 g

Wi-FIYes

Width244 mm

Windows operating systems supportedWindows 10 x64, Windows 11

WirelessDa

Specificații

Brand	ASUS
Cod produs	NOD-90MB1N00-M0EAY0
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Da
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
BIOS memory size	128 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Component for	PC
CPU fan connector	Yes
Depth	211 mm
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Gaming	Nu
HDMI	Da
HDMI ports quantity	1
Height	36 mm
Maximum internal memory	96 GB
Maximum number of SMP processors	1
MB-Format	micro-ATX
MB-Socket	1700
Memorie maxima	96 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	B760
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of chassis fan connectors	1
Number of COM connectors	1
Number of HDDs supported	4
Number of M.2 (M) slots	2
Number of memory slots	2
Number of SATA III connectors	4
Number of storage drives supported	6
Onboard-CPU	Yes
Package depth	263 mm
Package height	51.5 mm
Package weight	877 g
Package width	270 mm
Parallel processing technology support	Not supported
PCI	3
PCI Express x1 (Gen 4.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI-Ex16	3
Processor manufacturer	Intel
Processor socket	LGA 1700
PS/2 ports quantity	1
RAID levels	0, 1, 5, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out connector	Yes
S/PDIF out port	Yes
Sloturi M.2	2
Soclu Procesor	Socket 1700
Supported memory clock speed (max)	5333 MHz
Supported memory clock speeds	4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1700
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 4.0 x16
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	1
Weight	496 g
Wi-FI	Yes
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11
Wireless	Da

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: Da12V power connector: YesATX Power connector (24-pin): YesAudio output channels: 7.1 channelsBIOS memory size: 128 MbitBIOS type: UEFI AMI
