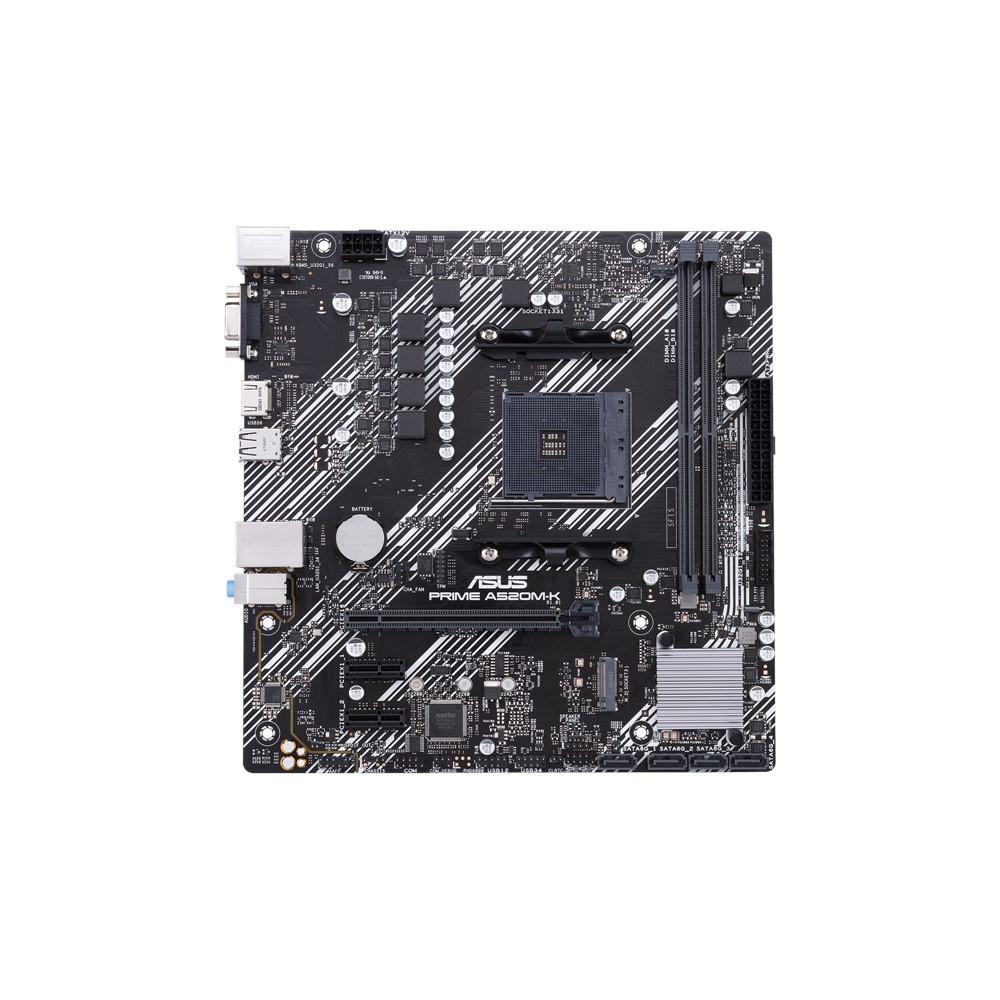

Placa de baza ASUS PRIME A520M-K, Socket AM4, DDR4, Micro-ATX

ASUS · NOD-PRIME A520M-K

Placa de baza ASUS PRIME A520M-K, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza ASUS PRIME A520M-K, Socket AM4, DDR4, Micro-ATX
Brand: ASUS
SKU: NOD-PRIME A520M-K
Price: 341 RON
Availability: BackOrder

Seria ASUS Prime este conceputa in mod special pentru a dezlantui intregul potential al platformei AMD Ryzen din a 3-a generatie. Dispunand de un design robust de putere, solutii de racire complete si optiuni inteligente de reglare, placile de baza Prime A520 ofera utilizatorilor zilnici si constructorilor de PC-uri DIY o gama de optiuni de reglare performanta prin software intuitiv si functii de firmware.

282 lei

prețuri fără TVA · 341 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.282 lei

ASUS · ComponenteDoar pentru firme (B2B)

Placa de baza ASUS PRIME A520M-K, Socket AM4, DDR4, Micro-ATX

SKU: NOD-PRIME A520M-K

Bluetooth: Nu
12V power connector: Yes
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC887 / Realtek ALC897
Audio output channels: 7.1 channels
BIOS memory size: 256 Mbit

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

282 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASUS

Cod produsNOD-PRIME A520M-K

CategorieComponente

BluetoothNu

12V power connectorYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC887 / Realtek ALC897

Audio output channels7.1 channels

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Clear CMOS jumperYes

Compatible processor seriesAMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7

Component forPC

CPU fan connectorYes

CPU încorporatNo

Depth221 mm

DVI-D ports quantity0

ECC сompatibilityECC

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatMicro-ATX

Front panel audio connectorYes

GamingNu

Harmonized System (HS) code84733020

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs3

LAN controllerRealtek RTL8111H

Maximum internal memory64 GB

MB-Formatmicro-ATX

MB-SocketAM4

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetA520

Motherboard chipsetAMD A520

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of chassis fan connectors1

Number of COM connectors1

Number of EATX power connectors2

Number of M.2 (M) slots1

Number of memory slots2

Number of SATA III connectors4

Number of storage drives supported5

Parallel processing technology supportNot supported

PCI0

PCI Express x1 (Gen 3.x) slots2

PCI Express x16 (Gen 3.x) slots1

PCI-Ex11

PCI-Ex161

Processor manufacturerAMD

Processor socketSocket AM4

PS/2 ports quantity1

RAID levels0, 1, 10

RAID supportYes

RAM-Slots2

RJ-45 LAN1

S/PDIF out connectorYes

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket AM4

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 3.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB connector typeUSB Type-A

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity1

Video-ConnectionVGA/HDMI

Wake-on-LAN readyYes

Wi-FINo

Width226 mm

Windows operating systems supportedWindows 10 x64, Windows 11

WirelessNu

Specificații

Brand	ASUS
Cod produs	NOD-PRIME A520M-K
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC887 / Realtek ALC897
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Clear CMOS jumper	Yes
Compatible processor series	AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7
Component for	PC
CPU fan connector	Yes
CPU încorporat	No
Depth	221 mm
DVI-D ports quantity	0
ECC сompatibility	ECC
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	Micro-ATX
Front panel audio connector	Yes
Gaming	Nu
Harmonized System (HS) code	84733020
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	3
LAN controller	Realtek RTL8111H
Maximum internal memory	64 GB
MB-Format	micro-ATX
MB-Socket	AM4
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	A520
Motherboard chipset	AMD A520
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of chassis fan connectors	1
Number of COM connectors	1
Number of EATX power connectors	2
Number of M.2 (M) slots	1
Number of memory slots	2
Number of SATA III connectors	4
Number of storage drives supported	5
Parallel processing technology support	Not supported
PCI	0
PCI Express x1 (Gen 3.x) slots	2
PCI Express x16 (Gen 3.x) slots	1
PCI-Ex1	1
PCI-Ex16	1
Processor manufacturer	AMD
Processor socket	Socket AM4
PS/2 ports quantity	1
RAID levels	0, 1, 10
RAID support	Yes
RAM-Slots	2
RJ-45 LAN	1
S/PDIF out connector	Yes
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket AM4
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 3.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB connector type	USB Type-A
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	1
Video-Connection	VGA/HDMI
Wake-on-LAN ready	Yes
Wi-FI	No
Width	226 mm
Windows operating systems supported	Windows 10 x64, Windows 11
Wireless	Nu

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bluetooth: Nu12V power connector: YesATX Power connector (24-pin): YesAudio Chip: Realtek ALC887 / Realtek ALC897Audio output channels: 7.1 channelsBIOS memory size: 256 Mbit
