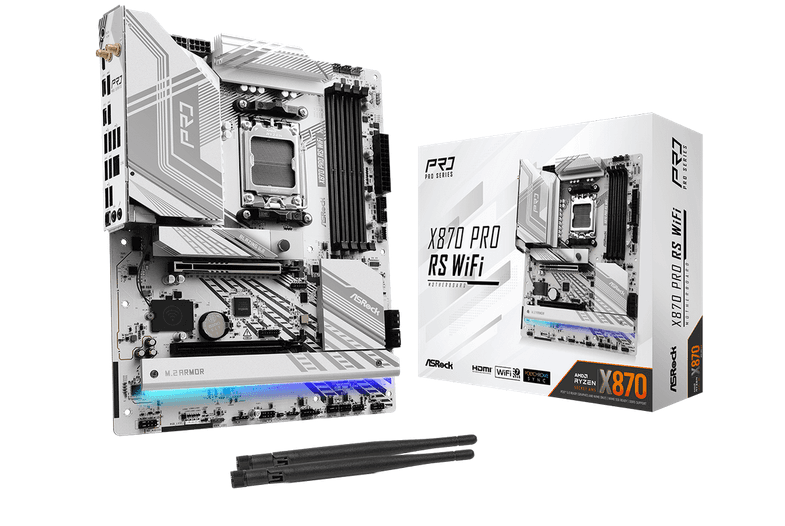

Placa de baza ASRock X870 Pro RS WiFi, Socket AM5, DDR5, ATX

ASROCK · NOD-X870 PRO RS WIFI

Placa de baza ASRock X870 Pro RS WiFi, Socket AM5, DDR5, ATX

Name: Placa de baza ASRock X870 Pro RS WiFi, Socket AM5, DDR5, ATX
Brand: ASROCK
SKU: NOD-X870 PRO RS WIFI
Price: 1580 RON
Availability: BackOrder

Placa de Baza ASROCK X870 PRO RS WIFI AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX

1.306 lei

prețuri fără TVA · 1.580 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.306 lei

ASROCK · ComponenteDoar pentru firme (B2B)

Placa de baza ASRock X870 Pro RS WiFi, Socket AM5, DDR5, ATX

SKU: NOD-X870 PRO RS WIFI

Bluetooth: Da
12V power connector: Yes
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.306 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASROCK

Cod produsNOD-X870 PRO RS WIFI

CategorieComponente

BluetoothDa

12V power connectorYes

1st M.2 highest PCI Express generation5.0

1st M.2 largest key size2280

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size2280

3rd M.2 highest PCI Express generation3.0

3rd M.2 largest key size2280

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC1220

Audio output channels7.1 channels

Back-to-BIOS buttonYes

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.4

Cables includedSATA

Canale audio7.1

CertificationFCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)

Chipset audio integratRealtek

Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component forPC

Cooling typePassive

CPU fan connectorYes

Depth24.4 mm

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

FormatATX

Front panel audio connectorYes

GamingNu

HDMIDa

HDMI ports quantity1

HDMI version2.1

LAN controllerDragon RTL8125BG

Maximum internal memory256 GB

Memorie maxima256 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetX870

Motherboard chipsetAMD X870

Motherboard chipset familyAMD

Motherboard form factorATX

Numar sloturi memorie4

Number of chassis fan connectors4

Number of CPU fan connectors2

Number of HDDs supported4

Number of M.2 (E) slots1

Number of M.2 (M) slots3

Number of memory slots4

Number of RGB LED pin headers3

Number of SATA III connectors4

Number of storage drives supported7

Number of water pump connectors1

Onboard-CPUNo

Parallel processing technology supportCrossfire

PCI0

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots1

Power source typeATX

Processor manufacturerAMD

Processor socketSocket AM5

Product colourWhite

RAID levels0, 1

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial-or-ParalelNo/No

Sloturi M.24

Soclu ProcesorSocket AM5

Supported memory clock speed (max)8000 MHz

Supported memory typesDDR5-SDRAM

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

ThunderboltNu

Tip MemorieDDR5

Tip slot interfata graficaPCIe 5.0 x16

Top Wi-Fi standardWi-Fi 7 (802.11be)

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity6

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 connectors1

USB Type CDa

USB4 Gen 2x2 ports quantity2

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI

Wi-FIYes

Width30.5 mm

WiFi-AP antenna jack2

WirelessDa

Specificații

Brand	ASROCK
Cod produs	NOD-X870 PRO RS WIFI
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Da
12V power connector	Yes
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	3.0
3rd M.2 largest key size	2280
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC1220
Audio output channels	7.1 channels
Back-to-BIOS button	Yes
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.4
Cables included	SATA
Canale audio	7.1
Certification	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Chipset audio integrat	Realtek
Compatible processor series	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Component for	PC
Cooling type	Passive
CPU fan connector	Yes
Depth	24.4 mm
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Format	ATX
Front panel audio connector	Yes
Gaming	Nu
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
LAN controller	Dragon RTL8125BG
Maximum internal memory	256 GB
Memorie maxima	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	X870
Motherboard chipset	AMD X870
Motherboard chipset family	AMD
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of chassis fan connectors	4
Number of CPU fan connectors	2
Number of HDDs supported	4
Number of M.2 (E) slots	1
Number of M.2 (M) slots	3
Number of memory slots	4
Number of RGB LED pin headers	3
Number of SATA III connectors	4
Number of storage drives supported	7
Number of water pump connectors	1
Onboard-CPU	No
Parallel processing technology support	Crossfire
PCI	0
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Power source type	ATX
Processor manufacturer	AMD
Processor socket	Socket AM5
Product colour	White
RAID levels	0, 1
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial-or-Paralel	No/No
Sloturi M.2	4
Soclu Procesor	Socket AM5
Supported memory clock speed (max)	8000 MHz
Supported memory types	DDR5-SDRAM
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Nu
Tip Memorie	DDR5
Tip slot interfata grafica	PCIe 5.0 x16
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 connectors	1
USB Type C	Da
USB4 Gen 2x2 ports quantity	2
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI
Wi-FI	Yes
Width	30.5 mm
WiFi-AP antenna jack	2
Wireless	Da

Configurație

Placa de Baza ASROCK X870 PRO RS WIFI AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza ASROCK X870 PRO RS WIFI AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX

Bluetooth: Da12V power connector: Yes1st M.2 highest PCI Express generation: 5.01st M.2 largest key size: 22802nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 2280
