ASROCK · NOD-B860 STEEL LEGEND WIFI

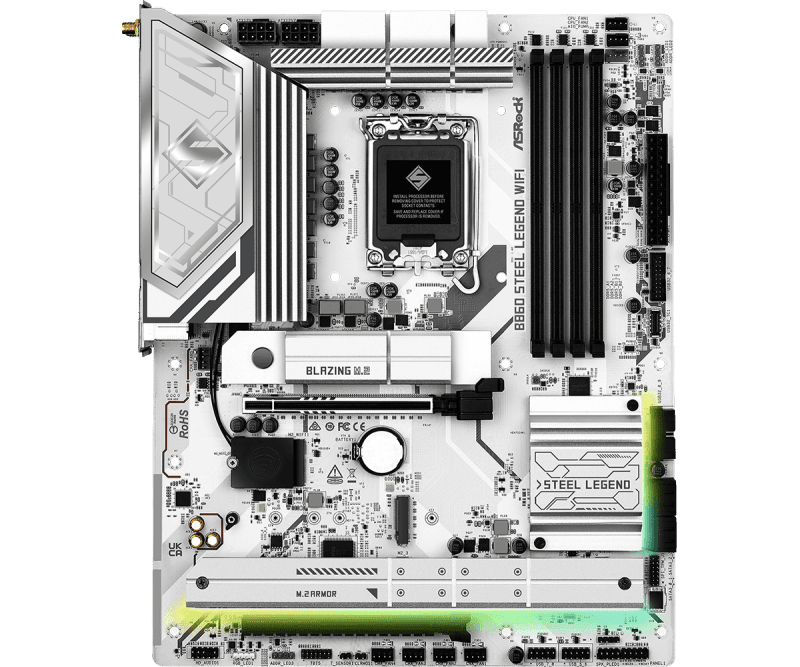

Placa de baza ASRock B860 Steel Legend WiFi, Socket 1851, DDR5, ATX

Name: Placa de baza ASRock B860 Steel Legend WiFi, Socket 1851, DDR5, ATX
Brand: ASROCK
SKU: NOD-B860 STEEL LEGEND WIFI
Price: 1509 RON
Availability: BackOrder

Placa de Baza ASROCK B860 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX

1.247 lei

prețuri fără TVA · 1.509 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.247 lei

ASROCK · ComponenteDoar pentru firme (B2B)

Placa de baza ASRock B860 Steel Legend WiFi, Socket 1851, DDR5, ATX

SKU: NOD-B860 STEEL LEGEND WIFI

Bluetooth: Da
12V power connector: Yes
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.247 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASROCK

Cod produsNOD-B860 STEEL LEGEND WIFI

CategorieComponente

BluetoothDa

12V power connectorYes

1st M.2 highest PCI Express generation5.0

1st M.2 largest key size2280

2nd M.2 highest PCI Express generation4.0

2nd M.2 largest key size2280

3rd M.2 highest PCI Express generation4.0

3rd M.2 largest key size2280

4th M.2 highest PCI Express generation4.0

4th M.2 largest key size2280

Antenna includedYes

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC1220

Audio output channels7.1 channels

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Bluetooth version5.3

Cables includedSATA

Canale audio7.1

CertificationFCC, CE, ErP/EuP

Chipset audio integratRealtek

Compatible processor seriesIntel Core Ultra (Series 2)

Component forPC

CPU fan connectorYes

Depth24.4 mm

DisplayPort version1.4

DisplayPorts quantity1

DVI-D ports quantity0

ECC сompatibilityNon-ECC

EPS power connector (8-pin)Yes

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

FormatATX

Front panel audio connectorYes

GamingNu

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Headphone outputs1

LAN controllerDragon RTL8125BG

Maximum internal memory256 GB

Maximum resolution7680 x 4320 pixels

Memorie maxima256 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB860

Motherboard chipsetIntel B860

Motherboard chipset familyIntel

Motherboard form factorATX

Numar sloturi memorie4

Number of chassis fan connectors5

Number of CPU fan connectors2

Number of EPS power connectors (8-pin)2

Number of M.2 (M) slots4

Number of memory slots4

Number of RGB LED pin headers1

Number of SATA III connectors4

Number of storage drives supported8

Number of water pump connectors1

Onboard-CPUNo

Parallel processing technology supportNot supported

PCI0

PCI Express x16 (Gen 4.x) slots1

PCI Express x16 (Gen 5.x) slots1

Processor manufacturerIntel

Processor socketLGA 1851 (Socket V1)

Product colourWhite

RAID levels0, 1, 5, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial-or-ParalelNo/No

Sloturi M.25

Soclu ProcesorSocket 1851

Supported memory typesDDR5-SDRAM

Supported processor socketsLGA 1851

Supported storage drive interfacesPCI Express 4.0, PCI Express 5.0, SATA III

Supported storage drive typesHDD & SSD

ThunderboltDa

Thunderbolt ports quantity1

Tip MemorieDDR5

Top Wi-Fi standardWi-Fi 6E (802.11ax)

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity3

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB 3.2 Gen 2x2 connectors1

USB connector typeUSB Type-A, USB Type-C

USB Type CDa

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI/DP

Wi-FIYes

Width30.5 mm

WiFi-AP antenna jack2

Windows operating systems supportedWindows 11 x64

WirelessDa

Specificații

Brand	ASROCK
Cod produs	NOD-B860 STEEL LEGEND WIFI
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Da
12V power connector	Yes
1st M.2 highest PCI Express generation	5.0
1st M.2 largest key size	2280
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
3rd M.2 highest PCI Express generation	4.0
3rd M.2 largest key size	2280
4th M.2 highest PCI Express generation	4.0
4th M.2 largest key size	2280
Antenna included	Yes
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC1220
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Bluetooth version	5.3
Cables included	SATA
Canale audio	7.1
Certification	FCC, CE, ErP/EuP
Chipset audio integrat	Realtek
Compatible processor series	Intel Core Ultra (Series 2)
Component for	PC
CPU fan connector	Yes
Depth	24.4 mm
DisplayPort version	1.4
DisplayPorts quantity	1
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Format	ATX
Front panel audio connector	Yes
Gaming	Nu
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Headphone outputs	1
LAN controller	Dragon RTL8125BG
Maximum internal memory	256 GB
Maximum resolution	7680 x 4320 pixels
Memorie maxima	256 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B860
Motherboard chipset	Intel B860
Motherboard chipset family	Intel
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of chassis fan connectors	5
Number of CPU fan connectors	2
Number of EPS power connectors (8-pin)	2
Number of M.2 (M) slots	4
Number of memory slots	4
Number of RGB LED pin headers	1
Number of SATA III connectors	4
Number of storage drives supported	8
Number of water pump connectors	1
Onboard-CPU	No
Parallel processing technology support	Not supported
PCI	0
PCI Express x16 (Gen 4.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Processor manufacturer	Intel
Processor socket	LGA 1851 (Socket V1)
Product colour	White
RAID levels	0, 1, 5, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial-or-Paralel	No/No
Sloturi M.2	5
Soclu Procesor	Socket 1851
Supported memory types	DDR5-SDRAM
Supported processor sockets	LGA 1851
Supported storage drive interfaces	PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types	HDD & SSD
Thunderbolt	Da
Thunderbolt ports quantity	1
Tip Memorie	DDR5
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 connectors	1
USB connector type	USB Type-A, USB Type-C
USB Type C	Da
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI/DP
Wi-FI	Yes
Width	30.5 mm
WiFi-AP antenna jack	2
Windows operating systems supported	Windows 11 x64
Wireless	Da

Configurație

Placa de Baza ASROCK B860 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Placa de Baza ASROCK B860 STEEL LEGEND WIFI LGA1851, 4x DDR5, 1x HDMI 1x DP 1x Intel Thunderbolt, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 5x M.2, 4x SATA 6GB/s, ATX

Bluetooth: Da12V power connector: Yes1st M.2 highest PCI Express generation: 5.01st M.2 largest key size: 22802nd M.2 highest PCI Express generation: 4.02nd M.2 largest key size: 2280
