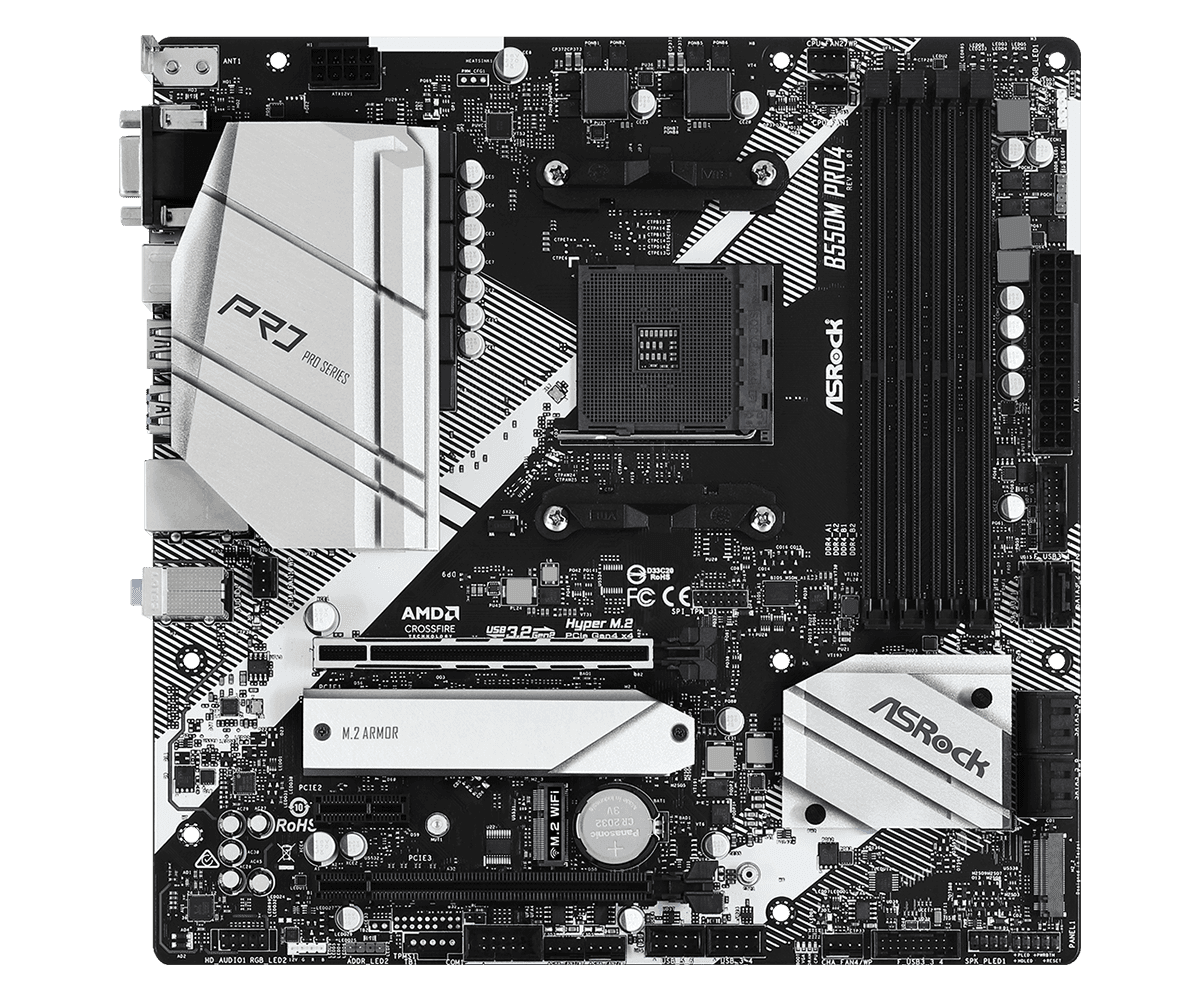

Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX

ASROCK · NOD-B550M PRO4

Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX
Brand: ASROCK
SKU: NOD-B550M PRO4
Price: 692 RON
Availability: BackOrder

Chipsetul AMD B550 face PCIe® 4.0 posibil pentru toti cei care isi doresc performanta, latime de banda si viteza superioare. Pregatit pentru procesoarele AMD Ryzen™ de generatia a 3-a si ulterioare.

572 lei

prețuri fără TVA · 692 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.572 lei

ASROCK · ComponenteDoar pentru firme (B2B)

Placa de baza ASRock B550M Pro4, Socket AM4, DDR4, Micro-ATX

SKU: NOD-B550M PRO4

Bluetooth: Nu
12V power connector: Yes
ACPI version: 5.1
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC1200
Audio output channels: 7.1 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

572 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASROCK

Cod produsNOD-B550M PRO4

CategorieComponente

BluetoothNu

12V power connectorYes

ACPI version5.1

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC1200

Audio output channels7.1 channels

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Cables includedSATA

Canale audio7.1

CertificationFCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)

Chipset audio integratRealtek

Compatible processor seriesAMD Ryzen 3000 Series

Component forPC

CPU fan connectorYes

CPU încorporatNo

Depth24.4 mm

DirectX version12.0

DisplayPort version1.4

DisplayPorts quantity1

Drivers includedYes

DVI-D ports quantity0

ECC сompatibilityECC & Non-ECC

EPS power connector (8-pin)Yes

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

FormatMicro-ATX

Front panel audio connectorYes

Front panel connectorYes

GamingDa

Harmonized System (HS) code84733020

HDCPYes

HDMIDa

HDMI ports quantity1

HDMI version2.1

Height70 mm

LAN controllerRealtek RTL8111H

Maximum internal memory128 GB

Maximum number of SMP processors1

Maximum resolution5120 x 2880 pixels

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetB550

Motherboard chipsetAMD B550

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie4

Number of chassis fan connectors4

Number of COM connectors1

Number of displays supported3

Number of M.2 (M) slots3

Number of memory slots4

Number of Parallel ATA connectors0

Number of SATA II connectors6

Number of SATA III connectors0

Parallel processing technology supportCrossFireX, Quad-GPU CrossFireX

PC health monitoringCPU, Fan, Temperature, Voltage

PCI0

PCI Express x1 (Gen 3.x) slots1

PCI Express x16 (Gen 3.x) slots1

PCI Express x16 (Gen 4.x) slots1

Processor manufacturerAMD

Processor socketSocket AM4

PS/2 ports quantity1

RAID levels0, 1, 10

RAID supportYes

RGB LED pin headerYes

RJ-45 LAN1

Serial-or-ParalelNo/No

Sloturi M.23

Soclu ProcesorSocket AM4

Supported memory clock speed (max)4733 MHz

Supported memory module capacities4GB, 8GB, 16GB, 32GB

Supported memory typesDDR4-SDRAM

Supported processor socketsSocket AM4

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.3

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1

USB Type CDa

VGA (D-Sub) ports quantity1

Video-ConnectionVGA/DVI/HDMI/DP

Wake-on-LAN readyYes

Weight465 g

Wi-FINo

Width244 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	ASROCK
Cod produs	NOD-B550M PRO4
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
ACPI version	5.1
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC1200
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Cables included	SATA
Canale audio	7.1
Certification	FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Chipset audio integrat	Realtek
Compatible processor series	AMD Ryzen 3000 Series
Component for	PC
CPU fan connector	Yes
CPU încorporat	No
Depth	24.4 mm
DirectX version	12.0
DisplayPort version	1.4
DisplayPorts quantity	1
Drivers included	Yes
DVI-D ports quantity	0
ECC сompatibility	ECC & Non-ECC
EPS power connector (8-pin)	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Format	Micro-ATX
Front panel audio connector	Yes
Front panel connector	Yes
Gaming	Da
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
HDMI version	2.1
Height	70 mm
LAN controller	Realtek RTL8111H
Maximum internal memory	128 GB
Maximum number of SMP processors	1
Maximum resolution	5120 x 2880 pixels
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	B550
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	4
Number of chassis fan connectors	4
Number of COM connectors	1
Number of displays supported	3
Number of M.2 (M) slots	3
Number of memory slots	4
Number of Parallel ATA connectors	0
Number of SATA II connectors	6
Number of SATA III connectors	0
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
PC health monitoring	CPU, Fan, Temperature, Voltage
PCI	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Processor manufacturer	AMD
Processor socket	Socket AM4
PS/2 ports quantity	1
RAID levels	0, 1, 10
RAID support	Yes
RGB LED pin header	Yes
RJ-45 LAN	1
Serial-or-Paralel	No/No
Sloturi M.2	3
Soclu Procesor	Socket AM4
Supported memory clock speed (max)	4733 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Supported memory types	DDR4-SDRAM
Supported processor sockets	Socket AM4
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.3
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type C	Da
VGA (D-Sub) ports quantity	1
Video-Connection	VGA/DVI/HDMI/DP
Wake-on-LAN ready	Yes
Weight	465 g
Wi-FI	No
Width	244 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu
