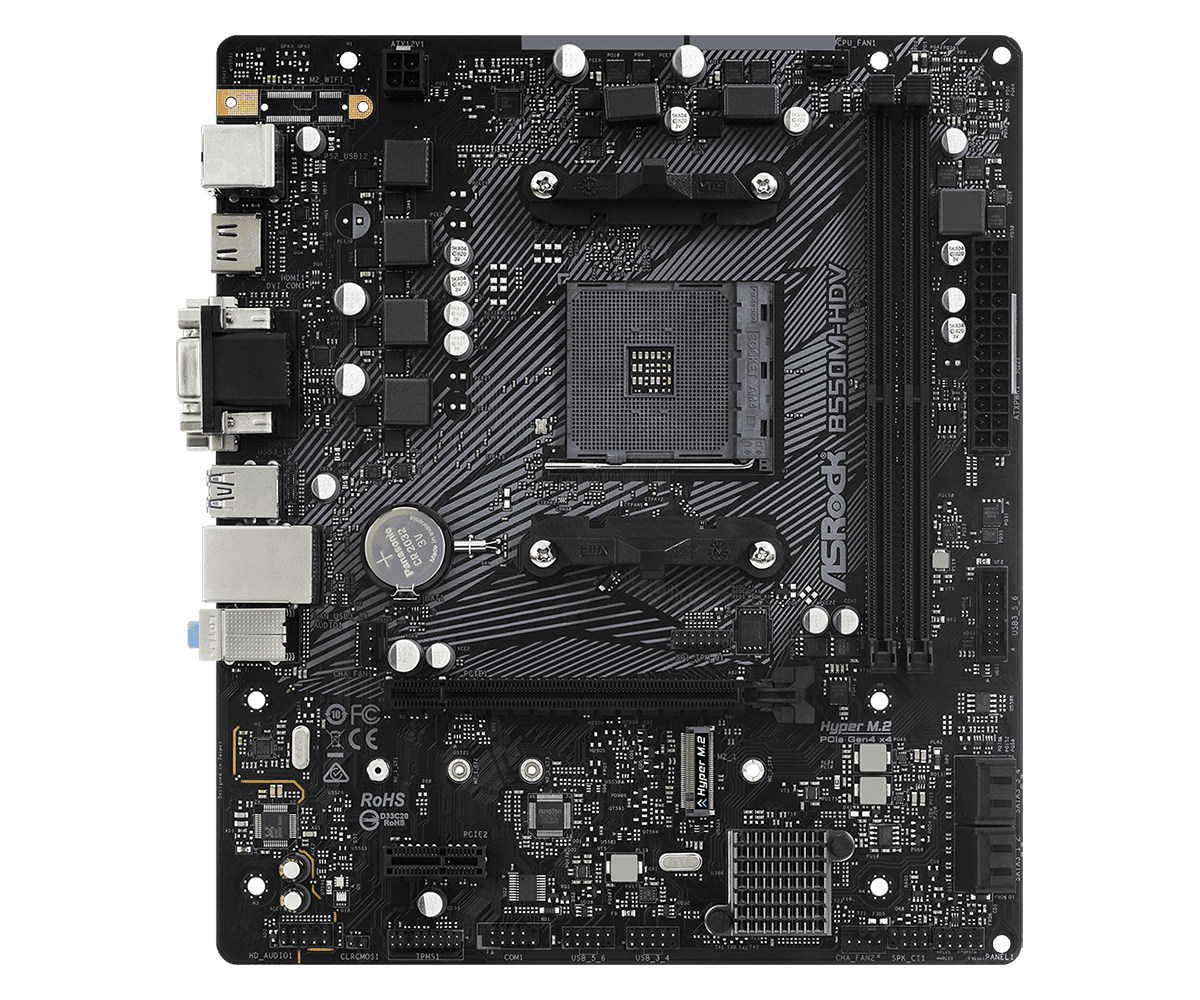

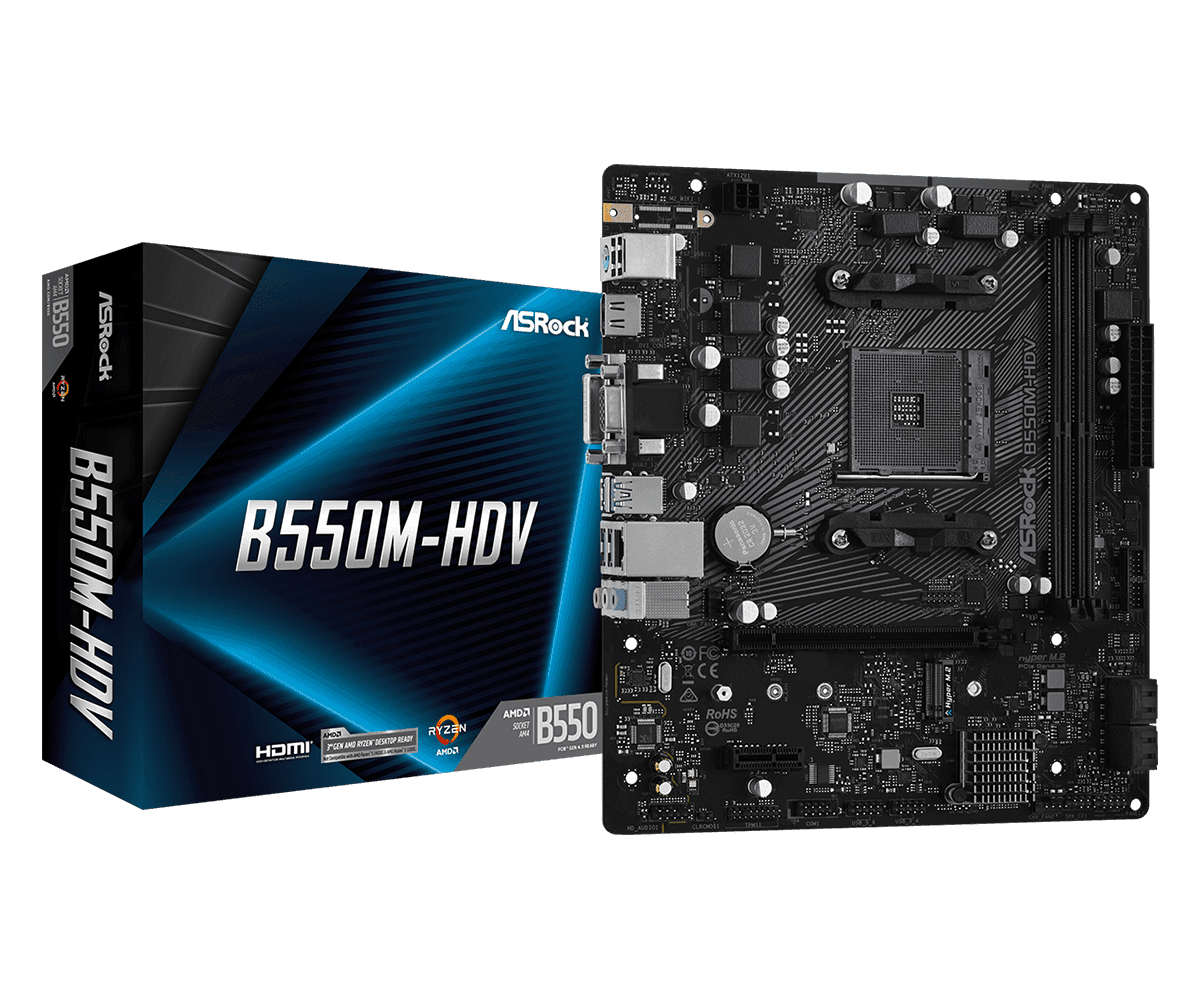

Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX

ASROCK · NOD-B550M-HDV

Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX

Name: Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX
Brand: ASROCK
SKU: NOD-B550M-HDV
Price: 473 RON
Availability: BackOrder

Chipsetul AMD B550 face PCIe® 4.0 posibil pentru toti cei care isi doresc performanta, latime de banda si viteza superioare. Pregatit pentru procesoarele AMD Ryzen™ de generatia a 3-a si ulterioare. Placa de baza suporta urmatoarea generatie de SSD-uri PCI Express 4.0 M.2, este capabil sa realizeze o viteza de doua ori mai mare comparativ cu generatia anterioara, oferind o experienta rapida de transfer de date.

391 lei

prețuri fără TVA · 473 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.391 lei

ASROCK · ComponenteDoar pentru firme (B2B)

Placa de baza ASRock B550M-HDV, Socket AM4, DDR4, Micro-ATX

SKU: NOD-B550M-HDV

Bluetooth: Nu
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC887
Audio output channels: 7.1 channels
BIOS type: UEFI AMI
Canale audio: 7.1

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

391 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASROCK

Cod produsNOD-B550M-HDV

CategorieComponente

BluetoothNu

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC887

Audio output channels7.1 channels

BIOS typeUEFI AMI

Canale audio7.1

Chipset audio integratRealtek

Compatible processor seriesAMD Ryzen 3000 Series

Component forPC

CPU fan connectorYes

CPU încorporatNo

Depth201 mm

DirectX version12.0

Drivers includedYes

DVI-D ports quantity1

ECC сompatibilityECC & Non-ECC

eSATA ports quantity0

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Firewire (IEEE 1394) ports0

FormatMicro-ATX

Front panel audio connectorYes

GamingNu

Graphics cardRadeon Vega

Graphics card familyAMD

Harmonized System (HS) code84733020

HDCPYes

HDMIDa

HDMI ports quantity1

Height70 mm

LAN controllerRealtek RTL8111H

Maximum internal memory64 GB

Maximum number of SMP processors1

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetB550

Motherboard chipsetAMD B550

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of chassis fan connectors2

Number of memory slots2

Number of Parallel ATA connectors0

Number of SATA II connectors0

Number of SATA III connectors4

On-board graphics cardYes

PCI0

Peripheral (Molex) power connectors (4-pin)1

Processor manufacturerAMD

Processor socketSocket AM4

PS/2 ports quantity1

RJ-45 LAN1

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket AM4

Supported memory typesDDR4-SDRAM

Supported storage drive interfacesM.2, SATA III

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 4.0 x16

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors4

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

VGA (D-Sub) ports quantity1

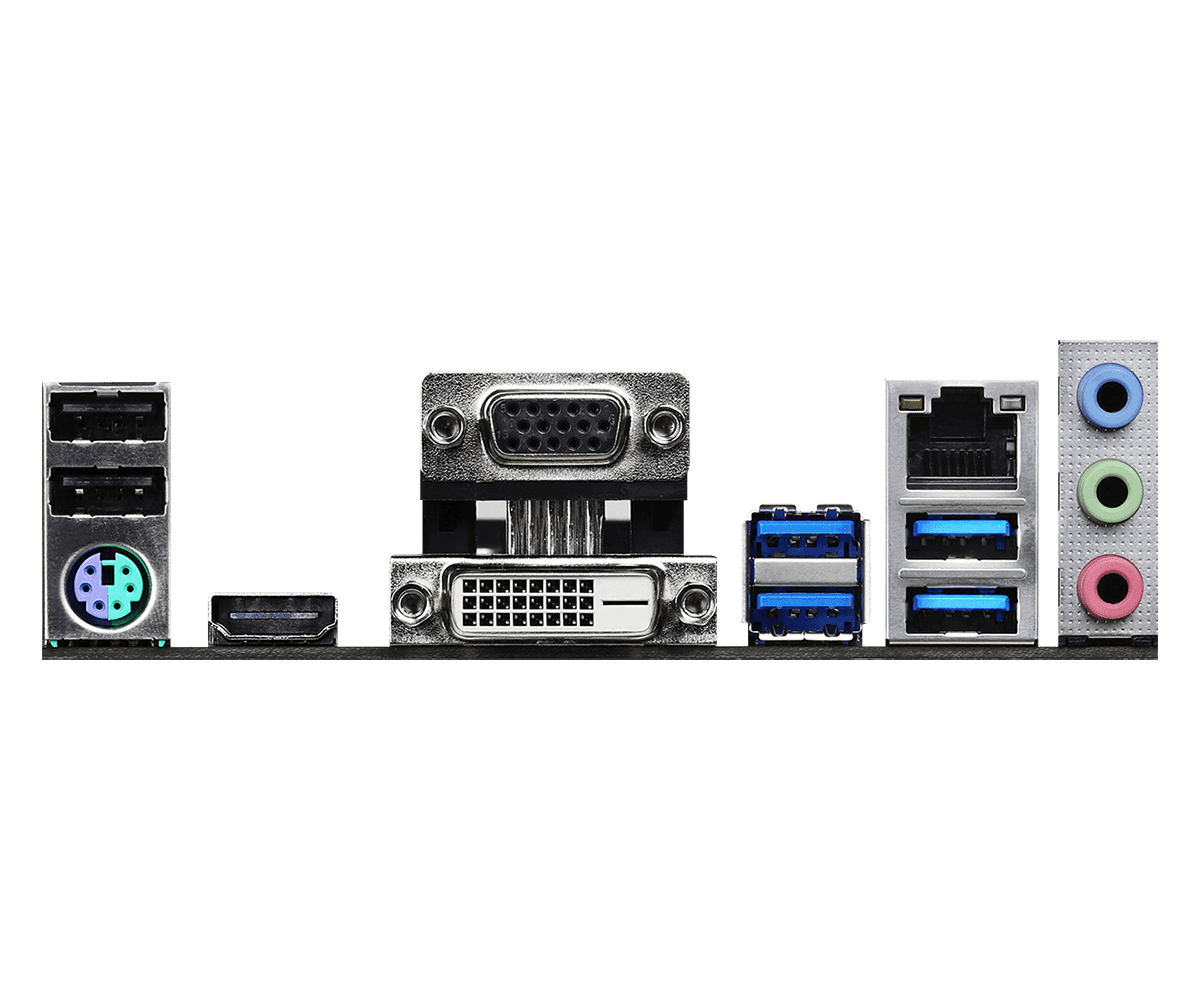

Video-ConnectionVGA/DVI/HDMI

Wake-on-LAN readyYes

Weight465 g

Wi-FINo

Width230 mm

WirelessNu

Specificații

Brand	ASROCK
Cod produs	NOD-B550M-HDV
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC887
Audio output channels	7.1 channels
BIOS type	UEFI AMI
Canale audio	7.1
Chipset audio integrat	Realtek
Compatible processor series	AMD Ryzen 3000 Series
Component for	PC
CPU fan connector	Yes
CPU încorporat	No
Depth	201 mm
DirectX version	12.0
Drivers included	Yes
DVI-D ports quantity	1
ECC сompatibility	ECC & Non-ECC
eSATA ports quantity	0
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Firewire (IEEE 1394) ports	0
Format	Micro-ATX
Front panel audio connector	Yes
Gaming	Nu
Graphics card	Radeon Vega
Graphics card family	AMD
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI	Da
HDMI ports quantity	1
Height	70 mm
LAN controller	Realtek RTL8111H
Maximum internal memory	64 GB
Maximum number of SMP processors	1
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	B550
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of chassis fan connectors	2
Number of memory slots	2
Number of Parallel ATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
On-board graphics card	Yes
PCI	0
Peripheral (Molex) power connectors (4-pin)	1
Processor manufacturer	AMD
Processor socket	Socket AM4
PS/2 ports quantity	1
RJ-45 LAN	1
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket AM4
Supported memory types	DDR4-SDRAM
Supported storage drive interfaces	M.2, SATA III
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 4.0 x16
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
VGA (D-Sub) ports quantity	1
Video-Connection	VGA/DVI/HDMI
Wake-on-LAN ready	Yes
Weight	465 g
Wi-FI	No
Width	230 mm
Wireless	Nu
