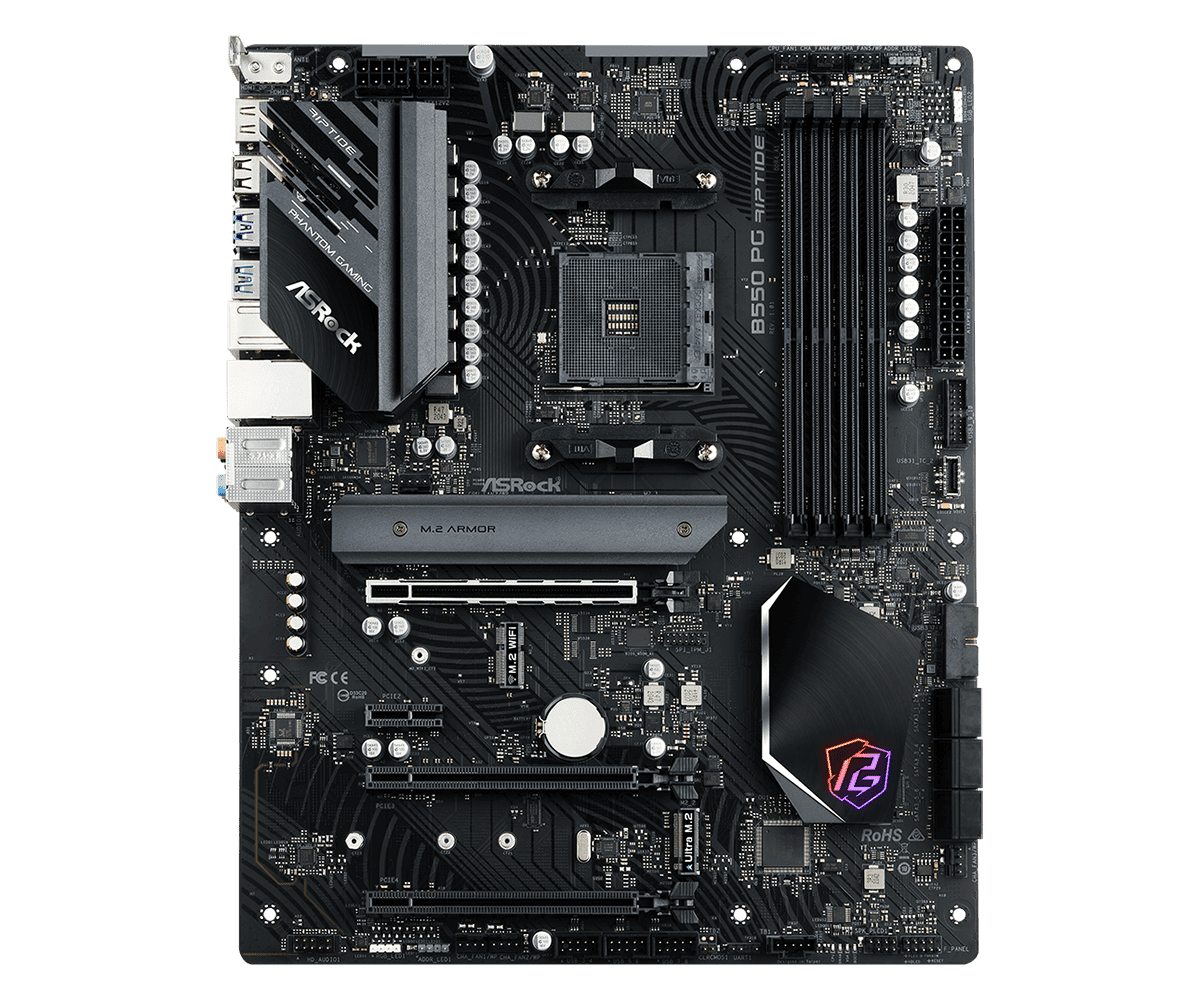

Placa de baza ASRock B550 PG Riptide, Socket AM4, DDR4, ATX

ASROCK · NOD-B550 PG RIPTIDE

Placa de baza ASRock B550 PG Riptide, Socket AM4, DDR4, ATX

Name: Placa de baza ASRock B550 PG Riptide, Socket AM4, DDR4, ATX
Brand: ASROCK
SKU: NOD-B550 PG RIPTIDE
Price: 1002 RON
Availability: BackOrder

Placa de baza AsRock B550 PG RIPTIDE AM4 Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors 10 Phase, Digi Power, Dr. MOS Supports DDR4 4933+ (OC)* 1 PCIe 4.0 x16 Slot, 2 PCIe 3.0 x16 Slots, 1 PCIe 3.0 x1 Slot 1 M.2 Key-E for WiFi Graphics Outputs: HDMI 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4) 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)** 3 USB 3.2 Gen2 (Front Type-C, Rear Type-A+C) 10 USB 3.2 Gen1 (4 Front, 6 Rear), 8 USB 2.0 (6 Front, 2 Rear) Killer E3100G 2.5G LAN https://www.asrock.com/MB/AMD/B550%20PG%20Riptide/index.asp

828 lei

prețuri fără TVA · 1.002 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.828 lei

ASROCK · ComponenteDoar pentru firme (B2B)

Placa de baza ASRock B550 PG Riptide, Socket AM4, DDR4, ATX

SKU: NOD-B550 PG RIPTIDE

Bluetooth: Nu
12V power connector: Yes
ACPI version: 5.1
ATX Power connector (24-pin): Yes
Audio Chip: Realtek ALC897
Audio output channels: 7.1 channels

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

828 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASROCK

Cod produsNOD-B550 PG RIPTIDE

CategorieComponente

BluetoothNu

12V power connectorYes

ACPI version5.1

ATX Power connector (24-pin)Yes

Audio ChipRealtek ALC897

Audio output channels7.1 channels

BIOS memory size256 Mbit

BIOS typeUEFI AMI

Cables includedSATA

Canale audio7.1

Chipset audio integratRealtek

Compatible processor seriesAMD Ryzen 3000 Series, AMD Ryzen 5000 Series

Component forPC

CPU fan connectorYes

CPU încorporatNo

Depth24.4 mm

Digital audio optical out1

DirectX version12.0

Drivers includedYes

DVI-D ports quantity0

ECC сompatibilityNon-ECC

Ethernet interface type2.5 Gigabit Ethernet

Ethernet LANYes

Ethernet LAN (RJ-45) ports1

FormatATX

Front panel audio connectorYes

GamingNu

Harmonized System (HS) code84733020

HDCPYes

HDMIDa

HDMI version2.1

Height330 mm

LAN controllerKiller E3100G

Maximum internal memory128 GB

Maximum number of SMP processors1

Maximum resolution4096 x 2160 pixels

MB-FormatATX

MB-SocketAM4

Memorie maxima128 GB

Memory channelsDual-channel

Memory slots typeDIMM

Model ChipsetB550

Motherboard chipsetAMD B550

Motherboard chipset familyAMD

Motherboard form factorATX

Numar sloturi memorie4

Number of chassis fan connectors5

Number of M.2 (M) slots2

Number of memory slots4

Number of SATA III connectors6

Parallel processing technology supportCrossFireX, Quad-GPU CrossFireX

PC health monitoringCPU, Fan, Temperature, Voltage

PCI0

PCI Express x1 (Gen 3.x) slots1

PCI Express x16 slots3

PCI-Ex11

PCI-Ex163

Processor manufacturerAMD

Processor socketSocket AM4

PS/2 ports quantity1

RAID levels0, 1, 10

RAID supportYes

RAM-Slots4

RGB LED pin headerYes

RJ-45 LAN1

S/PDIF out portYes

Serial-or-ParalelNo/No

Sloturi M.22

Soclu ProcesorSocket AM4

Supported memory typesDDR4-SDRAM

Supported storage drive interfacesM.2, SATA III

Supported storage drive typesHDD & SSD

System Management BIOS (SMBIOS) version2.3

ThunderboltNu

Thunderbolt headers1

Tip MemorieDDR4

TPM connectorYes

Unbuffered memoryYes

USB 2.0 connectors3

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity0

Video-ConnectionHDMI

Wake-on-LAN readyYes

Weight465 g

Wi-FINo

Width30.5 mm

Windows operating systems supportedWindows 10 x64, Windows 11 x64

WirelessNu

Specificații

Brand	ASROCK
Cod produs	NOD-B550 PG RIPTIDE
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bluetooth	Nu
12V power connector	Yes
ACPI version	5.1
ATX Power connector (24-pin)	Yes
Audio Chip	Realtek ALC897
Audio output channels	7.1 channels
BIOS memory size	256 Mbit
BIOS type	UEFI AMI
Cables included	SATA
Canale audio	7.1
Chipset audio integrat	Realtek
Compatible processor series	AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Component for	PC
CPU fan connector	Yes
CPU încorporat	No
Depth	24.4 mm
Digital audio optical out	1
DirectX version	12.0
Drivers included	Yes
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
Ethernet interface type	2.5 Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Format	ATX
Front panel audio connector	Yes
Gaming	Nu
Harmonized System (HS) code	84733020
HDCP	Yes
HDMI	Da
HDMI version	2.1
Height	330 mm
LAN controller	Killer E3100G
Maximum internal memory	128 GB
Maximum number of SMP processors	1
Maximum resolution	4096 x 2160 pixels
MB-Format	ATX
MB-Socket	AM4
Memorie maxima	128 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Model Chipset	B550
Motherboard chipset	AMD B550
Motherboard chipset family	AMD
Motherboard form factor	ATX
Numar sloturi memorie	4
Number of chassis fan connectors	5
Number of M.2 (M) slots	2
Number of memory slots	4
Number of SATA III connectors	6
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
PC health monitoring	CPU, Fan, Temperature, Voltage
PCI	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 slots	3
PCI-Ex1	1
PCI-Ex16	3
Processor manufacturer	AMD
Processor socket	Socket AM4
PS/2 ports quantity	1
RAID levels	0, 1, 10
RAID support	Yes
RAM-Slots	4
RGB LED pin header	Yes
RJ-45 LAN	1
S/PDIF out port	Yes
Serial-or-Paralel	No/No
Sloturi M.2	2
Soclu Procesor	Socket AM4
Supported memory types	DDR4-SDRAM
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD
System Management BIOS (SMBIOS) version	2.3
Thunderbolt	Nu
Thunderbolt headers	1
Tip Memorie	DDR4
TPM connector	Yes
Unbuffered memory	Yes
USB 2.0 connectors	3
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	0
Video-Connection	HDMI
Wake-on-LAN ready	Yes
Weight	465 g
Wi-FI	No
Width	30.5 mm
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Wireless	Nu
