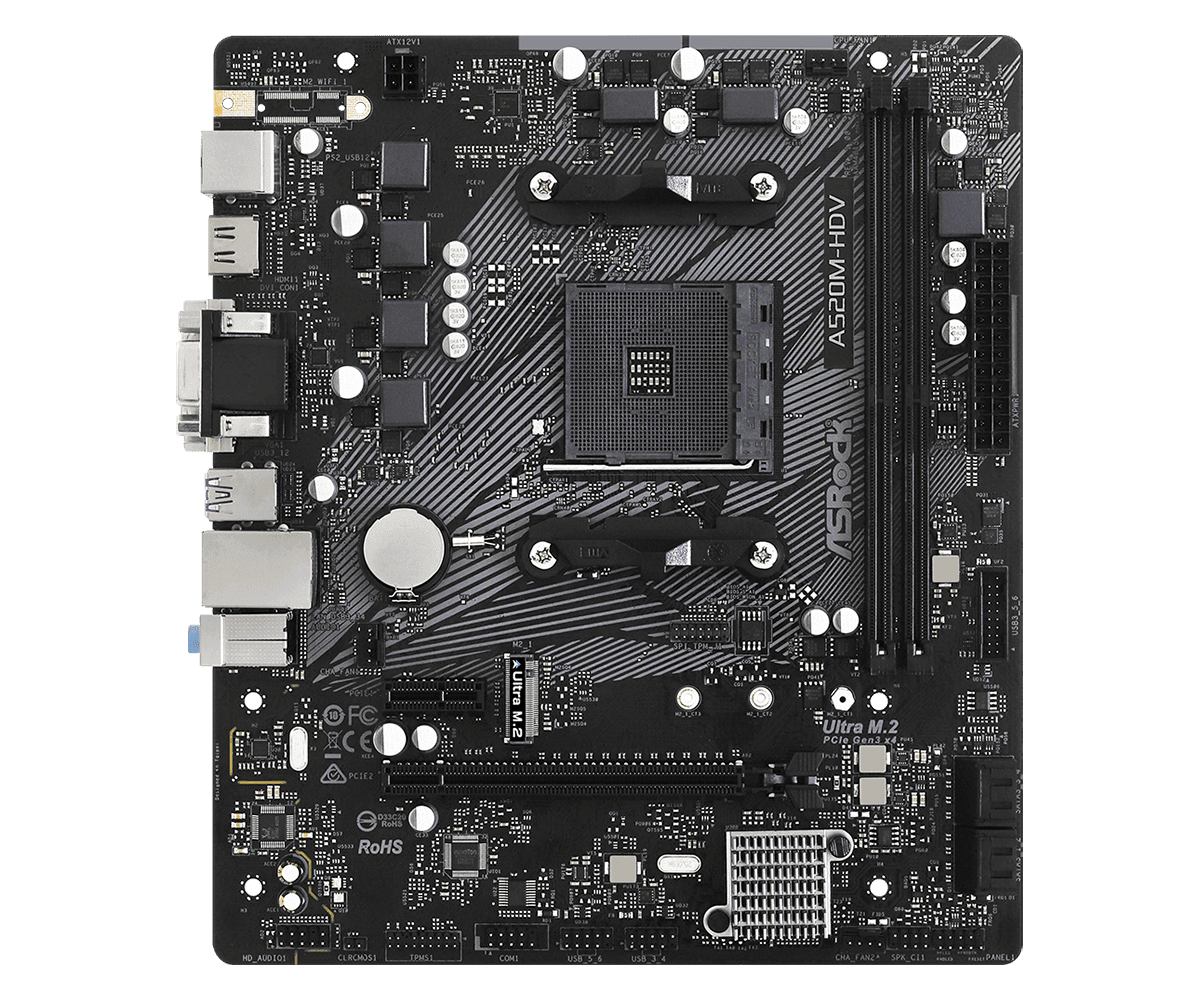

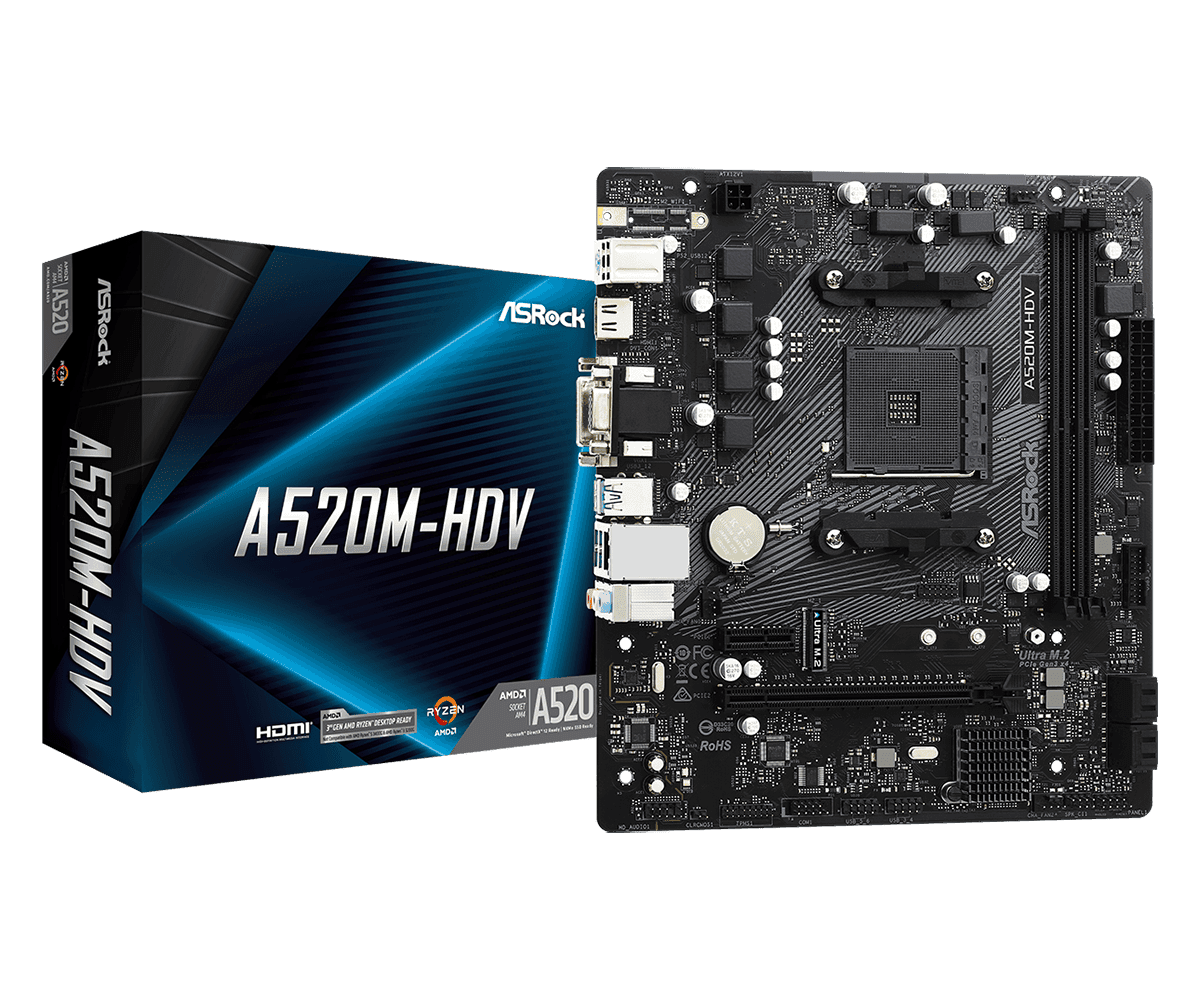

Placa de baza ASRock A520M-HDV, Socket AM4

ASROCK · NOD-A520M-HDV

Placa de baza ASRock A520M-HDV, Socket AM4

Name: Placa de baza ASRock A520M-HDV, Socket AM4
Brand: ASROCK
SKU: NOD-A520M-HDV
Price: 407 RON
Availability: InStock

Te poti baza pe cipul AMD A520 pentru a-ti oferi performanta si conexiunile de care ai nevoie. Procesorul conventional de sisteme PC poate accesa doar o fractiune din memoria grafica si limiteaza performanta sistemului. Cu memoria de acces inteligent AMD, canalul de date este extins pentru a valorifica intregul potential al memoriei GPU, elimina blocajul si creste performanta. Aceasta placa de baza suporta cea mai recenta specificatie de iesire grafica HDMI 4K 60Hz. Datorita latimii de banda mai mari si ratei de cadre mai mari, miscarea pe ecran devine mai fluida si mai putin neclara.

336 lei

prețuri fără TVA · 407 lei cu TVA

Disponibil la furnizor · 98 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.336 lei

ASROCK · ComponenteDoar pentru firme (B2B)

Placa de baza ASRock A520M-HDV, Socket AM4

SKU: NOD-A520M-HDV

Bluetooth: Nu
ATX Power connector (24-pin): Yes
Audio output channels: 7.1 channels
BIOS type: UEFI AMI
Canale audio: 7.1
Chipset audio integrat: Realtek

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

336 leiprețuri fără TVA

Disponibil la furnizor · 98 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandASROCK

Cod produsNOD-A520M-HDV

CategorieComponente

BluetoothNu

ATX Power connector (24-pin)Yes

Audio output channels7.1 channels

BIOS typeUEFI AMI

Canale audio7.1

Chipset audio integratRealtek

Compatible processor seriesAMD Ryzen 3000 Series

Component forPC

CPU fan connectorYes

CPU încorporatNo

Depth201 mm

DVI-D ports quantity0

ECC сompatibilityNon-ECC

eSATA ports quantity0

Ethernet interface typeGigabit Ethernet

Ethernet LANYes

Firewire (IEEE 1394) ports0

FormatMicro-ATX

Front panel audio connectorYes

GamingNu

Graphics cardRadeon Vega

Graphics card familyAMD

Harmonized System (HS) code84733020

HDMIDa

HDMI ports quantity1

LAN controllerRealtek RTL8111H

Maximum internal memory64 GB

MB-Formatmicro-ATX

MB-SocketAM4

Memorie maxima64 GB

Memory channelsDual-channel

Memory slots typeDIMM

Microphone inYes

Model ChipsetA520

Motherboard chipset familyAMD

Motherboard form factormicro ATX

Numar sloturi memorie2

Number of chassis fan connectors2

Number of COM connectors1

Number of HDDs supported5

Number of memory slots2

Number of Parallel ATA connectors0

Number of SATA II connectors0

Number of SATA III connectors0

PCI0

PCI Express x1 (Gen 3.x) slots1

PCI Express x16 (Gen 3.x) slots1

PCI-Ex11

PCI-Ex161

Processor manufacturerAMD

Processor socketSocket AM4

PS/2 ports quantity1

RAM-Slots4

RJ-45 LAN1

Serial-or-ParalelNo/No

Sloturi M.21

Soclu ProcesorSocket AM4

Supported memory clock speeds2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz

Supported memory typesDDR4-SDRAM

Supported storage drive interfacesM.2, SATA III

ThunderboltNu

Tip MemorieDDR4

Tip slot interfata graficaPCIe 3.0 x16

Unbuffered memoryYes

USB 2.0 connectors2

USB 2.0 ports quantity2

USB 3.2 Gen 1 (3.1 Gen 1) connectors1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) connectors0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0

USB Type CDa

USB34-8

VGA (D-Sub) ports quantity1

Video-ConnectionVGA/DVI/HDMI

Wake-on-LAN readyYes

Wi-FINo

Width230 mm

WirelessNu

Specificații

Brand	ASROCK
Cod produs	NOD-A520M-HDV
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
Bluetooth	Nu
ATX Power connector (24-pin)	Yes
Audio output channels	7.1 channels
BIOS type	UEFI AMI
Canale audio	7.1
Chipset audio integrat	Realtek
Compatible processor series	AMD Ryzen 3000 Series
Component for	PC
CPU fan connector	Yes
CPU încorporat	No
Depth	201 mm
DVI-D ports quantity	0
ECC сompatibility	Non-ECC
eSATA ports quantity	0
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Firewire (IEEE 1394) ports	0
Format	Micro-ATX
Front panel audio connector	Yes
Gaming	Nu
Graphics card	Radeon Vega
Graphics card family	AMD
Harmonized System (HS) code	84733020
HDMI	Da
HDMI ports quantity	1
LAN controller	Realtek RTL8111H
Maximum internal memory	64 GB
MB-Format	micro-ATX
MB-Socket	AM4
Memorie maxima	64 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Microphone in	Yes
Model Chipset	A520
Motherboard chipset family	AMD
Motherboard form factor	micro ATX
Numar sloturi memorie	2
Number of chassis fan connectors	2
Number of COM connectors	1
Number of HDDs supported	5
Number of memory slots	2
Number of Parallel ATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	0
PCI	0
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI-Ex1	1
PCI-Ex16	1
Processor manufacturer	AMD
Processor socket	Socket AM4
PS/2 ports quantity	1
RAM-Slots	4
RJ-45 LAN	1
Serial-or-Paralel	No/No
Sloturi M.2	1
Soclu Procesor	Socket AM4
Supported memory clock speeds	2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz
Supported memory types	DDR4-SDRAM
Supported storage drive interfaces	M.2, SATA III
Thunderbolt	Nu
Tip Memorie	DDR4
Tip slot interfata grafica	PCIe 3.0 x16
Unbuffered memory	Yes
USB 2.0 connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB Type C	Da
USB3	4-8
VGA (D-Sub) ports quantity	1
Video-Connection	VGA/DVI/HDMI
Wake-on-LAN ready	Yes
Wi-FI	No
Width	230 mm
Wireless	Nu
