TP-LINK · NOD-SX3832MPP

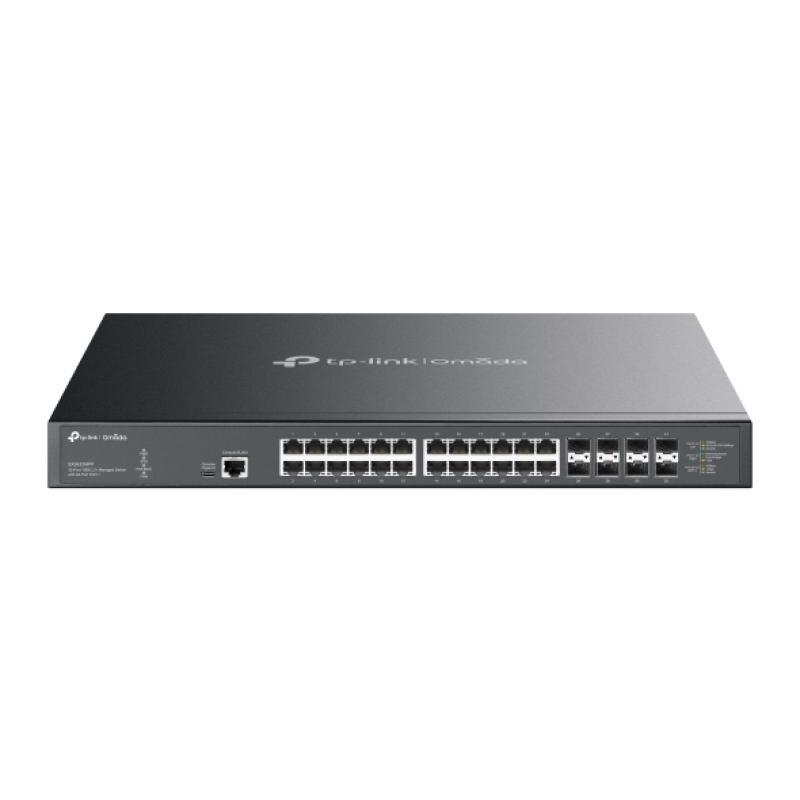

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots

Name: Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots
Brand: TP-LINK
SKU: NOD-SX3832MPP
Price: 21693 RON
Availability: BackOrder

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots, RJ45/USB Type C Console Port SPEC: 802.3bt/at/af (up to 90W/port), 770 W PoE Power, 1U 19-inch Rack- mountable Steel Case FEATURE: Integration with Omada SDN Controller, Static Routing, DHCP Server, OAM, DDM, 802.1Q VLAN, QinQ, Fast PoE, Perpetual PoE, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, ERPS, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

17.928 lei

prețuri fără TVA · 21.693 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.17.928 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ PORT: 24× 10G RJ45 PoE++ Ports, 8× 10G SFP+ Slots

SKU: NOD-SX3832MPP

10G Ethernet (copper) ports quantity: 24
10G support: Yes
2.5G Ethernet (copper) ports quantity: 24
AC input frequency: 50/60 Hz
AC input voltage: 110 - 240 V
Access Control List (ACL): Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

17.928 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-SX3832MPP

CategorieNetworking

10G Ethernet (copper) ports quantity24

10G supportYes

2.5G Ethernet (copper) ports quantity24

AC input frequency50/60 Hz

AC input voltage110 - 240 V

Access Control List (ACL)Yes

Address Resolution Protocol (ARP) entries (max)510

ARP inspectionYes

AuthenticationGuest VLAN

Authentication typeAAA, RADIUS, TACACS+

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)

Broadcast storm controlYes

Cables includedPower

Cloud-managedYes

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Configuring Location Settings (CLI)Yes

Console portRJ-45/USB Type-C

CPU defenseYes

Depth330 mm

Device link detection protocol (DLDP)Yes

DHCP featuresDHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

DoS attack preventionYes

Ethernet Ring Protection Switching (ERPS)Yes

FanlessNo

Fast Ethernet (copper) ports quantity24

Firmware upgradeableYes

Form factorDIN rail

Forwarding rate240 Mpps

Gigabit Ethernet (copper) ports quantity24

Heat dissipation3444.7 BTU/h

Height44 mm

Housing materialMetal

IGMP snoopingYes

Installed SFP modules quantity8

Installed SFP+ modules quantity8

IPv4 & IPv6 featuresDual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert

IPv4 routes48

IPv6 routes48

Jumbo frames9

Jumbo frames supportYes

LAN-Port-Type10Gigabit

LAN-Ports16

LayerLayer-2

LED indicatorsYes

Link aggregationYes

MAC address table32000 entries

ManagementDa

MIB supportRFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Montare in RackDa

Mounting bracket(s) includedYes

Mounting brackets includedYes

Multicast Listener Discovery (MLD) snoopingYes

Multicast supportYes

Number of fans4 fan(s)

Number of queues8

Number of VLANs4000

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)-5 - 45 °C

Packaging contentConsole Cable

Packet buffer memory24 MB

PoENu

Port mirroringYes

Porturi RJ 4524-28

Porturi SFPpeste 9

Power consumption (max)1010.2 W

Power consumption (typical)953.7 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) power per port90 W

Power over Ethernet 4PPoE (PoE++) ports quantity24

Power saving mode (EEE)Yes

Power sourceAC

Power supply includedNo

Product colourBlack

Quality of Service (QoS) supportYes

Queue scheduling algorithmsStrict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)

Quick start guideYes

Rack mount kitYes

Rack mountingYes

RackableNo

Rate limitingYes

Redundant-PSUYes

Rubber feetYes

Screws includedYes

Security algorithmsHTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS

Spanning tree protocolYes

StackableNo

Static port securityYes

Static routeYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Sustainability organizationsAccountability

Switch layerL2

Switch typeManaged

Switching capacity640 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget770 W

Unified static configurationYes

Virtual LAN featuresMVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN

Viteza transfer10G+

VLAN supportYes

Web-based managementYes

Width440 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-SX3832MPP
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G Ethernet (copper) ports quantity	24
10G support	Yes
2.5G Ethernet (copper) ports quantity	24
AC input frequency	50/60 Hz
AC input voltage	110 - 240 V
Access Control List (ACL)	Yes
Address Resolution Protocol (ARP) entries (max)	510
ARP inspection	Yes
Authentication	Guest VLAN
Authentication type	AAA, RADIUS, TACACS+
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Broadcast storm control	Yes
Cables included	Power
Cloud-managed	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/USB Type-C
CPU defense	Yes
Depth	330 mm
Device link detection protocol (DLDP)	Yes
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
DoS attack prevention	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
Fanless	No
Fast Ethernet (copper) ports quantity	24
Firmware upgradeable	Yes
Form factor	DIN rail
Forwarding rate	240 Mpps
Gigabit Ethernet (copper) ports quantity	24
Heat dissipation	3444.7 BTU/h
Height	44 mm
Housing material	Metal
IGMP snooping	Yes
Installed SFP modules quantity	8
Installed SFP+ modules quantity	8
IPv4 & IPv6 features	Dual stack IPv4/IPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet, IPv6 ping, IPv6 tracert
IPv4 routes	48
IPv6 routes	48
Jumbo frames	9
Jumbo frames support	Yes
LAN-Port-Type	10Gigabit
LAN-Ports	16
Layer	Layer-2
LED indicators	Yes
Link aggregation	Yes
MAC address table	32000 entries
Management	Da
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Montare in Rack	Da
Mounting bracket(s) included	Yes
Mounting brackets included	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Multicast support	Yes
Number of fans	4 fan(s)
Number of queues	8
Number of VLANs	4000
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 45 °C
Packaging content	Console Cable
Packet buffer memory	24 MB
PoE	Nu
Port mirroring	Yes
Porturi RJ 45	24-28
Porturi SFP	peste 9
Power consumption (max)	1010.2 W
Power consumption (typical)	953.7 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	90 W
Power over Ethernet 4PPoE (PoE++) ports quantity	24
Power saving mode (EEE)	Yes
Power source	AC
Power supply included	No
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), WRR+SP, Weighted Round Robin (WRR)
Quick start guide	Yes
Rack mount kit	Yes
Rack mounting	Yes
Rackable	No
Rate limiting	Yes
Redundant-PSU	Yes
Rubber feet	Yes
Screws included	Yes
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Spanning tree protocol	Yes
Stackable	No
Static port security	Yes
Static route	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Sustainability organizations	Accountability
Switch layer	L2
Switch type	Managed
Switching capacity	640 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	770 W
Unified static configuration	Yes
Virtual LAN features	MVRP, Private VLAN, SSID-based VLAN assignment, VLAN Identifier ( VLAN ID), Voice VLAN
Viteza transfer	10G+
VLAN support	Yes
Web-based management	Yes
Width	440 mm
