TP-LINK · NOD-TL-SG6428X

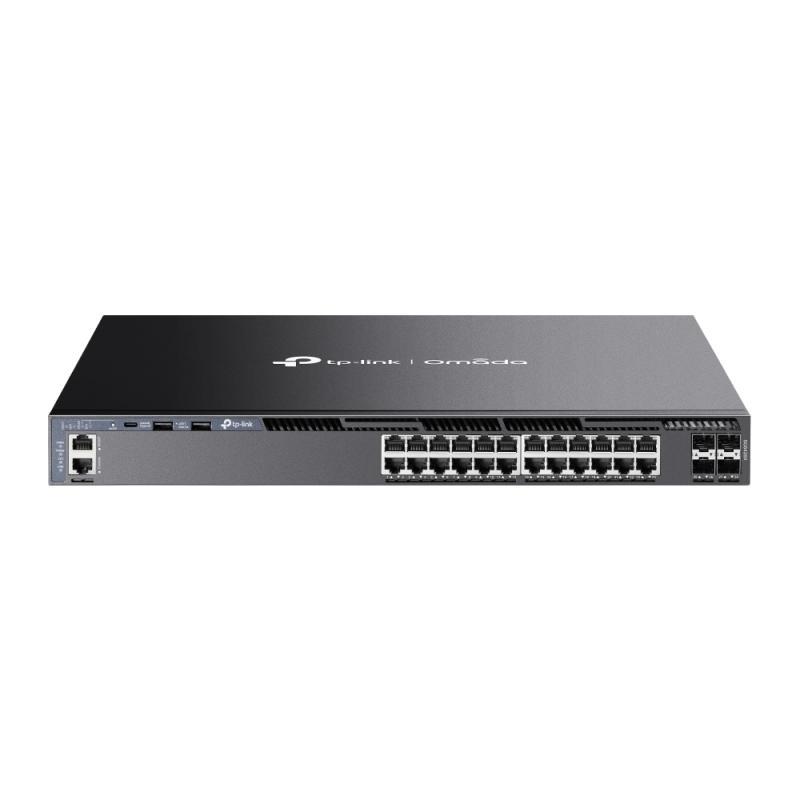

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports

Name: Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports
Brand: TP-LINK
SKU: NOD-TL-SG6428X
Price: 15487 RON
Availability: BackOrder

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies

12.799 lei

prețuri fără TVA · 15.487 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.12.799 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports

SKU: NOD-TL-SG6428X

10G support: No
AC input frequency: 50/60 Hz
Access Control List (ACL): Yes
ARP inspection: Yes
Authentication: Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type: RADIUS

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

12.799 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SG6428X

CategorieNetworking

10G supportNo

AC input frequency50/60 Hz

Access Control List (ACL)Yes

ARP inspectionYes

AuthenticationAuto VLAN, MAC-based authentication, Port-based authentication

Authentication typeRADIUS

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Broadcast storm controlYes

Cables includedAC, LAN (RJ-45)

Cloud-managedYes

Configuring Location Settings (CLI)Yes

Console portRJ-45/USB Type-C

Depth380 mm

DHCP featuresDHCP relay, DHCP snooping, DHCPv6 snooping

Ethernet LAN data rates10,100,1000 Mbit/s

Flow control supportYes

Form factor1U

Forwarding rate95.2 Mpps

Heat dissipation96.91 BTU/h

IGMP entries2048

IGMP snoopingYes

IP routingYes

Jumbo frames9000

Jumbo frames supportYes

LAN-Port-TypeGigabit

LAN-Ports24

LayerLayer-2

LED indicatorsYes

Loop protectionYes

MAC address table32000 entries

ManagementDa

Montare in rackDa

Multicast supportYes

Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3x

Number of fans4 fan(s)

Number of VLANs4000

Operating temperature (T-T)-5 - 40 °C

Packet buffer memory3 MB

PoENu

Port mirroringYes

Porturi RJ 4524× Gigabit RJ45 Ports

Porturi SFP3-4

Power consumption (max)28.4 W

Power over Ethernet (PoE)No

Power sourceAC

Power supply includedYes

Quality of Service (QoS) supportYes

Rack mountingYes

RackableYes

Rate limitingYes

Redundant-PSUYes

SFP module slots quantity4

SFP+ module slots quantity4

Spanning tree protocolYes

SSH/SSL supportYes

StackableNo

Static routeYes

Storage relative humidity (H-H)5 - 90%

Switch layerL3

Switch typeManaged

Switching capacity128 Gbit/s

System event logYes

USB 2.0 ports quantity2

Virtual LAN featuresMAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN

Viteza TransferGigabit

VLAN supportYes

Web-based managementYes

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SG6428X
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	No
AC input frequency	50/60 Hz
Access Control List (ACL)	Yes
ARP inspection	Yes
Authentication	Auto VLAN, MAC-based authentication, Port-based authentication
Authentication type	RADIUS
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Broadcast storm control	Yes
Cables included	AC, LAN (RJ-45)
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/USB Type-C
Depth	380 mm
DHCP features	DHCP relay, DHCP snooping, DHCPv6 snooping
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Form factor	1U
Forwarding rate	95.2 Mpps
Heat dissipation	96.91 BTU/h
IGMP entries	2048
IGMP snooping	Yes
IP routing	Yes
Jumbo frames	9000
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LAN-Ports	24
Layer	Layer-2
LED indicators	Yes
Loop protection	Yes
MAC address table	32000 entries
Management	Da
Montare in rack	Da
Multicast support	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x
Number of fans	4 fan(s)
Number of VLANs	4000
Operating temperature (T-T)	-5 - 40 °C
Packet buffer memory	3 MB
PoE	Nu
Port mirroring	Yes
Porturi RJ 45	24× Gigabit RJ45 Ports
Porturi SFP	3-4
Power consumption (max)	28.4 W
Power over Ethernet (PoE)	No
Power source	AC
Power supply included	Yes
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Rackable	Yes
Rate limiting	Yes
Redundant-PSU	Yes
SFP module slots quantity	4
SFP+ module slots quantity	4
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	No
Static route	Yes
Storage relative humidity (H-H)	5 - 90%
Switch layer	L3
Switch type	Managed
Switching capacity	128 Gbit/s
System event log	Yes
USB 2.0 ports quantity	2
Virtual LAN features	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Viteza Transfer	Gigabit
VLAN support	Yes
Web-based management	Yes

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAC input frequency: 50/60 HzAccess Control List (ACL): YesARP inspection: YesAuthentication: Auto VLAN, MAC-based authentication, Port-based authenticationAuthentication type: RADIUS
