TP-LINK · NOD-ES220GMP

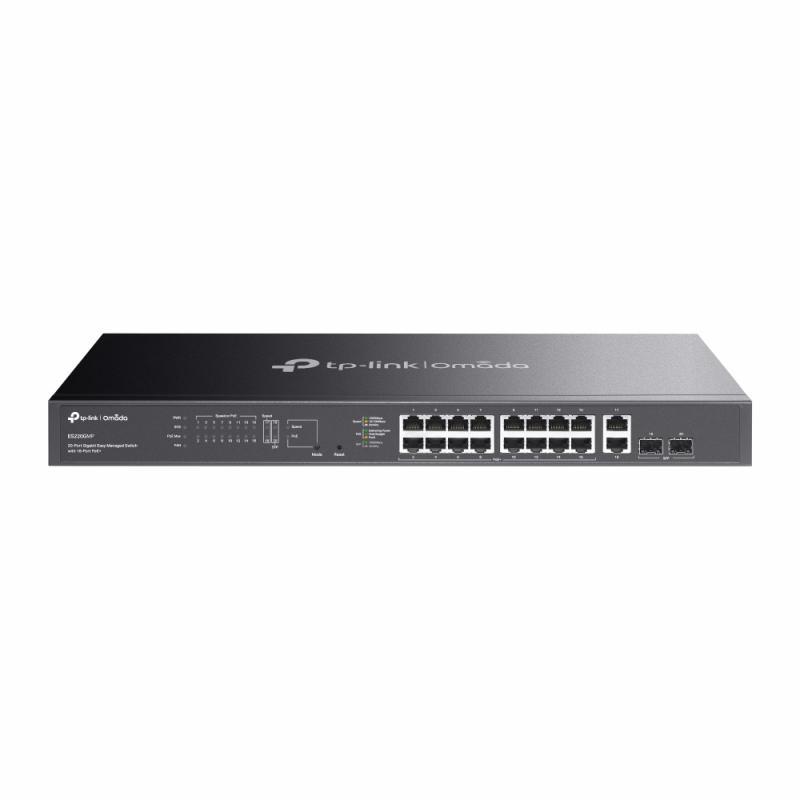

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports

Name: Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports
Brand: TP-LINK
SKU: NOD-ES220GMP
Price: 1152 RON
Availability: InStock

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 2× Gigabit SFP Ports SPEC: 802.3at/af, 250 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller and Omada Cloud Essentials, Fast PoE, Perpetual PoE, Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control

952 lei

prețuri fără TVA · 1.152 lei cu TVA

Disponibil la furnizor · 12 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.952 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ PORT: 16× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports

SKU: NOD-ES220GMP

10G support: No
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Basic switching RJ-45 Ethernet ports quantity: 18

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

952 leiprețuri fără TVA

Disponibil la furnizor · 12 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-ES220GMP

CategorieNetworking

10G supportNo

AC input frequency50/60 Hz

AC input voltage100 - 240 V

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity18

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Cables includedAC

Cloud-managedYes

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Depth180 mm

DHCP featuresDHCP client

Fast leaveYes

Firmware upgradeableYes

Flash memory64 MB

Flow control supportYes

Forwarding rate29.76 Mpps

Gigabit Ethernet (copper) ports quantity18

Heat dissipation984.88 BTU/h

Height44 mm

IGMP snoopingYes

Jumbo frames15000

Jumbo frames supportYes

LAN-Port-TypeFastEthernet

LAN-Ports8

LED indicatorsYes

Link aggregationYes

Loop protectionYes

MAC address table8000 entries

ManagementNu

Mean time between failures (MTBF)310550.7 h

Montare in RackNu

Noise level41.5 dB

Number of fans2 fan(s)

Number of VLANs32

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)-5 - 50 °C

Package typeBox

Packet buffer memory4 MB

PoENu

Port mirroringYes

Porturi RJ 451-4

Porturi SFP1-2

Power connectorAC-in jack

Power consumption (max)289.7 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) power per port30 W

Power over Ethernet (PoE) type supportedPoE+

Power over Ethernet plus (PoE+) ports quantity16

Power sourceAC

Power supply includedYes

Product colourBlack

Quality of Service (QoS) supportYes

Queue scheduling algorithmsWeighted Round Robin (WRR)

Rack mount kitYes

Rack mountingYes

RackableNo

Redundant-PSUNo

SFP module slots quantity2

SFP+ module slots quantity2

StackableNo

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Surge protectionYes

Surge protection voltage6 kV

Switch layerL2

Switch typeManaged

Switching capacity40 Gbit/s

Total Power over Ethernet (PoE) budget250 W

Unified static configurationYes

User guideYes

Virtual LAN featuresMTU VLAN, Port-based VLAN, Tagged VLAN

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Width440 mm

Zero Touch Provisioning (ZTP)Yes

Specificații

Brand	TP-LINK
Cod produs	NOD-ES220GMP
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	18
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cables included	AC
Cloud-managed	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Depth	180 mm
DHCP features	DHCP client
Fast leave	Yes
Firmware upgradeable	Yes
Flash memory	64 MB
Flow control support	Yes
Forwarding rate	29.76 Mpps
Gigabit Ethernet (copper) ports quantity	18
Heat dissipation	984.88 BTU/h
Height	44 mm
IGMP snooping	Yes
Jumbo frames	15000
Jumbo frames support	Yes
LAN-Port-Type	FastEthernet
LAN-Ports	8
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address table	8000 entries
Management	Nu
Mean time between failures (MTBF)	310550.7 h
Montare in Rack	Nu
Noise level	41.5 dB
Number of fans	2 fan(s)
Number of VLANs	32
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 50 °C
Package type	Box
Packet buffer memory	4 MB
PoE	Nu
Port mirroring	Yes
Porturi RJ 45	1-4
Porturi SFP	1-2
Power connector	AC-in jack
Power consumption (max)	289.7 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	16
Power source	AC
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mount kit	Yes
Rack mounting	Yes
Rackable	No
Redundant-PSU	No
SFP module slots quantity	2
SFP+ module slots quantity	2
Stackable	No
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Surge protection	Yes
Surge protection voltage	6 kV
Switch layer	L2
Switch type	Managed
Switching capacity	40 Gbit/s
Total Power over Ethernet (PoE) budget	250 W
Unified static configuration	Yes
User guide	Yes
Virtual LAN features	MTU VLAN, Port-based VLAN, Tagged VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Width	440 mm
Zero Touch Provisioning (ZTP)	Yes

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAC input frequency: 50/60 HzAC input voltage: 100 - 240 VAuto MDI/MDI-X: YesAuto-negotiation: YesBasic switching RJ-45 Ethernet ports quantity: 18
