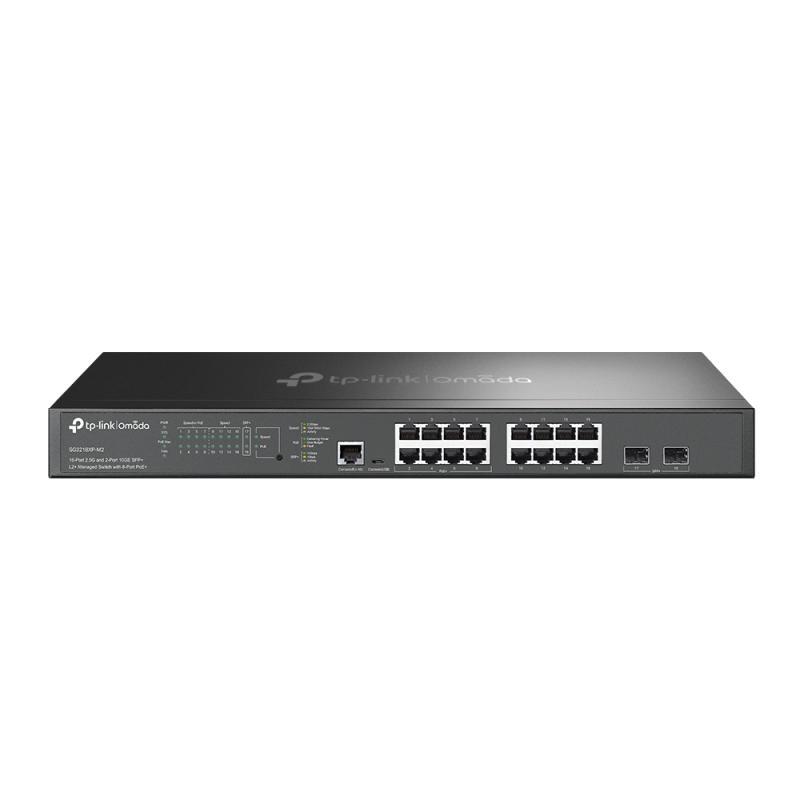

TP-LINK · NOD-SG3218XP-M2

Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports

Name: Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports
Brand: TP-LINK
SKU: NOD-SG3218XP-M2
Price: 4821 RON
Availability: BackOrder

Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports, 8× 2.5G Non-PoE Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller,Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

3.984 lei

prețuri fără TVA · 4.821 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.3.984 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

Omada 16-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8- Port PoE+ PORT: 8× 2.5G PoE+ Ports

SKU: NOD-SG3218XP-M2

10G support: Yes
AC input voltage: 100 - 240 V
Access Control List (ACL): Yes
ARP inspection: Yes
Authentication: MAC-based authentication, Port-based authentication
Authentication type: AAA, TACACS+

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

3.984 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-SG3218XP-M2

CategorieNetworking

10G supportYes

AC input voltage100 - 240 V

Access Control List (ACL)Yes

ARP inspectionYes

AuthenticationMAC-based authentication, Port-based authentication

Authentication typeAAA, TACACS+

Basic switching RJ-45 Ethernet ports quantity16

Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)

BPDU filtering/protectionYes

Broadcast storm controlYes

Cables includedAC

CertificationCE, FCC, RoHS

Cloud-managedYes

Compliance certificatesFederal Communications Commission (FCC), RoHS

Configuring Location Settings (CLI)Yes

Console portRJ-45/micro-USB

Depth180 mm

DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Ethernet LAN data rates100,1000,2500 Mbit/s

Flow control supportYes

Form factor1U

Forwarding rate89.28 Mpps

GARP VLAN Registration Protocol (GVRP)Yes

Head-of-line (HOL) blockingYes

Heat dissipation1021.64 BTU/h

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

IP routingYes

IP-MAC-Port bindingYes

Jumbo frames9000

Jumbo frames supportYes

LAN-Port-TypeFastEthernet

LED indicatorsYes

Link aggregationYes

Loop protectionYes

MAC address filteringYes

MAC address table16000 entries

ManagementDa

Management protocolsSNMP v1/v2c/v3, SNTP

Montare in RackNu

Multicast Listener Discovery (MLD) snoopingY

Multicast supportYes

Networking standardsIEEE 802.1D, IEEE 802.1s, IEEE 802.1w

Number of fans2 fan(s)

Number of IP interfaces32

Number of static routes48

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 50 °C

Package typeBox

Packet buffer memory12 MB

Password protectionYes

PoEDa

Port mirroringYes

Porturi RJ 4511-18

Porturi SFP1-2

Power connectorAC-in jack

Power consumption (max)299.4 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) power per port30 W

Power over Ethernet plus (PoE+) ports quantity8

Power sourceAC

Power supply includedYes

Quality of Service (QoS) supportYes

Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)

Quick start guideYes

Rack mountingYes

Rate limitingYes

Security algorithmsHTTPS, SSH, SSH-2, SSL/TLS

SFP module slots quantity2

SFP+ module slots quantity2

Spanning tree protocolYes

SSH/SSL supportYes

Static port securityYes

Static routeYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Sustainability complianceYes

Switch layerL2+

Switch typeManaged

Switching capacity120 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget240 W

Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Viteza transfer2.5G

VLAN supportYes

Web-based managementYes

Specificații

Brand	TP-LINK
Cod produs	NOD-SG3218XP-M2
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	Yes
AC input voltage	100 - 240 V
Access Control List (ACL)	Yes
ARP inspection	Yes
Authentication	MAC-based authentication, Port-based authentication
Authentication type	AAA, TACACS+
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Cables included	AC
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Compliance certificates	Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/micro-USB
Depth	180 mm
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates	100,1000,2500 Mbit/s
Flow control support	Yes
Form factor	1U
Forwarding rate	89.28 Mpps
GARP VLAN Registration Protocol (GVRP)	Yes
Head-of-line (HOL) blocking	Yes
Heat dissipation	1021.64 BTU/h
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
IP routing	Yes
IP-MAC-Port binding	Yes
Jumbo frames	9000
Jumbo frames support	Yes
LAN-Port-Type	FastEthernet
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address filtering	Yes
MAC address table	16000 entries
Management	Da
Management protocols	SNMP v1/v2c/v3, SNTP
Montare in Rack	Nu
Multicast Listener Discovery (MLD) snooping	Y
Multicast support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Number of fans	2 fan(s)
Number of IP interfaces	32
Number of static routes	48
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C
Package type	Box
Packet buffer memory	12 MB
Password protection	Yes
PoE	Da
Port mirroring	Yes
Porturi RJ 45	11-18
Porturi SFP	1-2
Power connector	AC-in jack
Power consumption (max)	299.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Power source	AC
Power supply included	Yes
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide	Yes
Rack mounting	Yes
Rate limiting	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity	2
SFP+ module slots quantity	2
Spanning tree protocol	Yes
SSH/SSL support	Yes
Static port security	Yes
Static route	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Sustainability compliance	Yes
Switch layer	L2+
Switch type	Managed
Switching capacity	120 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	240 W
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Viteza transfer	2.5G
VLAN support	Yes
Web-based management	Yes

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: YesAC input voltage: 100 - 240 VAccess Control List (ACL): YesARP inspection: YesAuthentication: MAC-based authentication, Port-based authenticationAuthentication type: AAA, TACACS+
