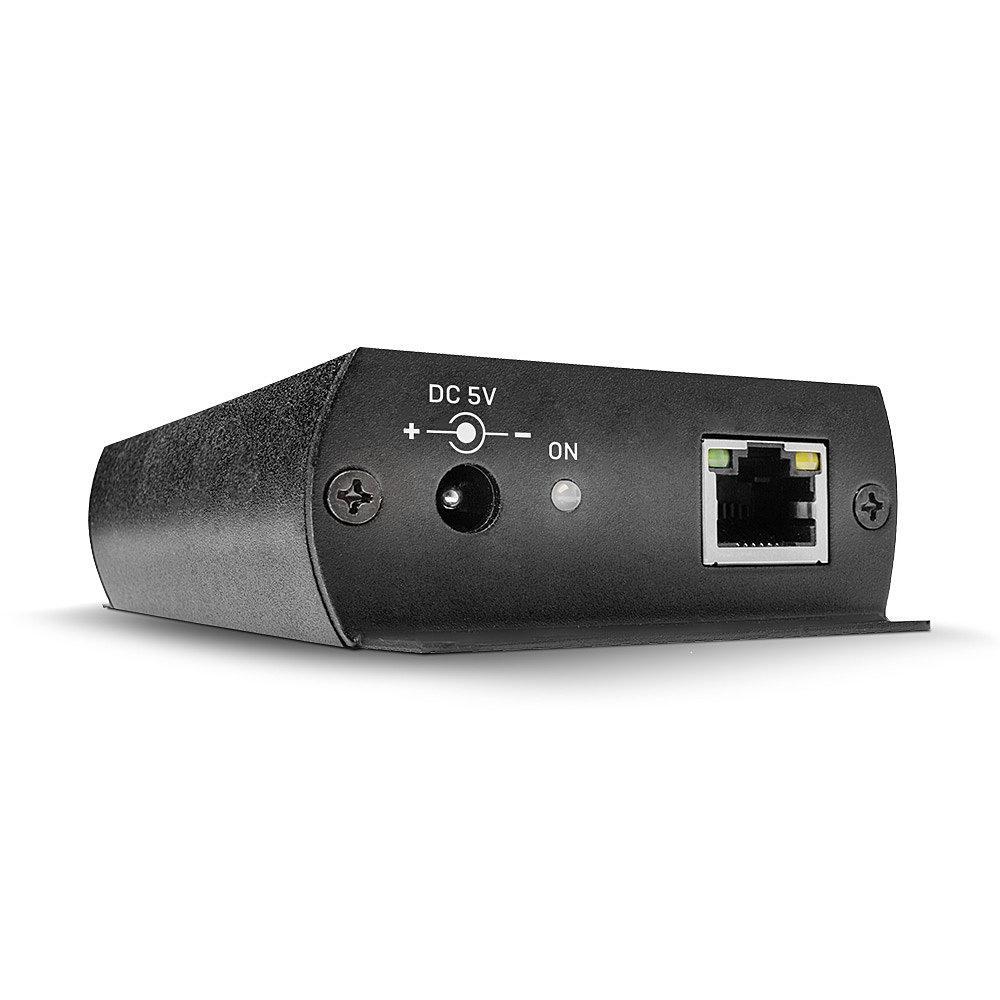

Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio & RS232, USB 2.0

LINDY · NOD-LY-39245

Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio & RS232, USB 2.0

Name: Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio & RS232, USB 2.0
Brand: LINDY
SKU: NOD-LY-39245
Price: 5366 RON
Availability: BackOrder

Lindy 140m Cat.6 DVI-D, USB, Audio & RS232 KVM Extender Description Extends DVI-D, USB 2.0, Audio and RS-232 up to 140m using only one Cat.6 cable Supports DVI Single Link resolutions up to 1920x1200 4 USB 2.0 Type A ports to connect keyboard, mouse and mass storage devices Easy, user friendly installation - no software required Technical details Specifications AV Interface: DVI-D Console Interface: USB Interfaces Standard: DVI-D Single Link, USB 2.0 Supported Bandwidth: 850Mbps Maximum Distance: 140m (459.31ft) Maximum Resolution: 1920x1200@60Hz HDCP Support: 1.4 Supported Audio: Analogue Stereo & Mono Separate Audio Ports: 2 x 3.5mm (Female) Transmission Protocol: - Transmission Medium: Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Special Features: EDID management, point-to-point and LAN connection and RS-232 signal extension Connectors Transmitter KVM Interfaces: DVI-I in (Female), DVI-I loopout (Female), USB Type B (Female), 2 x 3.5mm (Female) Transmitter Extension Port: 1x RJ-45 (Female) Receiver Console Interface: DVI-I (Female), 4 x USB Type A (Female), 2 x 3.5mm (Female) Receiver Extension Port: 1 x RJ-45 (Female) Bi-directional Ports: 3.5mm RS-232 (Female) Other Interfaces: - Power: 5.5/2.5mm DC socket Physical Properties Dimensions (approx.) WxDxH: 125x140x30mm (4.92x5.51x1.18in) (each unit) Housing Material: Metal Net Weight: 1.27kg (2.8lb) Operating Temperature: -20°C - 60°C (-4°F - 140°F) Storage Temperature: -20°C - 85°C (-4°F - 185°F) Humidity: 0 - 95% RH (non-condensing) Power Requirements: 5VDC 2.6A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 355x195x60mm (13.98x7.68x2.36in) Gross Weight: 1.52kg (3.35lb) Warranty (Years): 2 Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Content Transmitter unit Receiver unit 1 x USB Type A/B cable, 1.45m 1 x 3.5mm to RS232 DB9 Male cable, 1.80m 1 x 3.5mm to RS232 DB9 Female cable, 1.80m 2 x Multi-Country Power Supply (EU, UK, US, AUS) 8 x Screws and Dowels Lindy Manual Purchasing Information No.: 39245 EAN: 4002888392457 https://www.lindy-international.com/140m-Cat-6-DVI-D-USB-Audio-RS232- KVM-Extender.htm?websale8=ld0101.ld021102&pi=39245&ci=10

4.435 lei

prețuri fără TVA · 5.366 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.4.435 lei

LINDY · NetworkingDoar pentru firme (B2B)

Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio & RS232, USB 2.0

SKU: NOD-LY-39245

AC adapter included: Yes
Cable types supported: Cat6
Cables included: Audio (3.5mm), RS-232, USB Type-A to USB Type-B
Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Connectivity technology: Wired
Harmonized System (HS) code: 84733080

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

4.435 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandLINDY

Cod produsNOD-LY-39245

CategorieNetworking

AC adapter includedYes

Cable types supportedCat6

Cables includedAudio (3.5mm), RS-232, USB Type-A to USB Type-B

CertificationCE, UKCA, FCC, RoHS, REACH & California Proposition 65

Connectivity technologyWired

Harmonized System (HS) code84733080

Interfata HDMINu

KVM-Ports4

ManualYes

MaterialMetal

Maximum refresh rate60 Hz

Maximum resolution1920 x 1200 pixels

Maximum transfer distance140 m

Numar porturi USB3-4

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)-20 - 60 °C

Package depth195 mm

Package height60 mm

Package weight15.2 kg

Package width355 mm

PC Audio inYes

Power requirements5VDC 2.6A

Product colourBlack

Receiver depth14 cm

Receiver height3 cm

Receiver local video port typeDVI-I

Receiver width12.5 cm

Rezolutie1920 x 1200

RJ-45 ports quantity2

RJ-45 ports quantity (receiver)1

RJ-45 ports quantity (transmitter)1

Screwdriver includedYes

Storage temperature (T-T)-20 - 85 °C

Transmitter depth14 cm

Transmitter height3 cm

Transmitter video port typeDVI-I

Transmitter width12.5 cm

TypeTransmitter & receiver

USB 2.0 ports quantity4

USB port typeUSB Type-A/USB Type-B

Weight1.27 kg

Specificații

Brand	LINDY
Cod produs	NOD-LY-39245
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
AC adapter included	Yes
Cable types supported	Cat6
Cables included	Audio (3.5mm), RS-232, USB Type-A to USB Type-B
Certification	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Connectivity technology	Wired
Harmonized System (HS) code	84733080
Interfata HDMI	Nu
KVM-Ports	4
Manual	Yes
Material	Metal
Maximum refresh rate	60 Hz
Maximum resolution	1920 x 1200 pixels
Maximum transfer distance	140 m
Numar porturi USB	3-4
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-20 - 60 °C
Package depth	195 mm
Package height	60 mm
Package weight	15.2 kg
Package width	355 mm
PC Audio in	Yes
Power requirements	5VDC 2.6A
Product colour	Black
Receiver depth	14 cm
Receiver height	3 cm
Receiver local video port type	DVI-I
Receiver width	12.5 cm
Rezolutie	1920 x 1200
RJ-45 ports quantity	2
RJ-45 ports quantity (receiver)	1
RJ-45 ports quantity (transmitter)	1
Screwdriver included	Yes
Storage temperature (T-T)	-20 - 85 °C
Transmitter depth	14 cm
Transmitter height	3 cm
Transmitter video port type	DVI-I
Transmitter width	12.5 cm
Type	Transmitter & receiver
USB 2.0 ports quantity	4
USB port type	USB Type-A/USB Type-B
Weight	1.27 kg

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

AC adapter included: YesCable types supported: Cat6Cables included: Audio (3.5mm), RS-232, USB Type-A to USB Type-BCertification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65Connectivity technology: WiredHarmonized System (HS) code: 84733080
