Prezentare detaliată

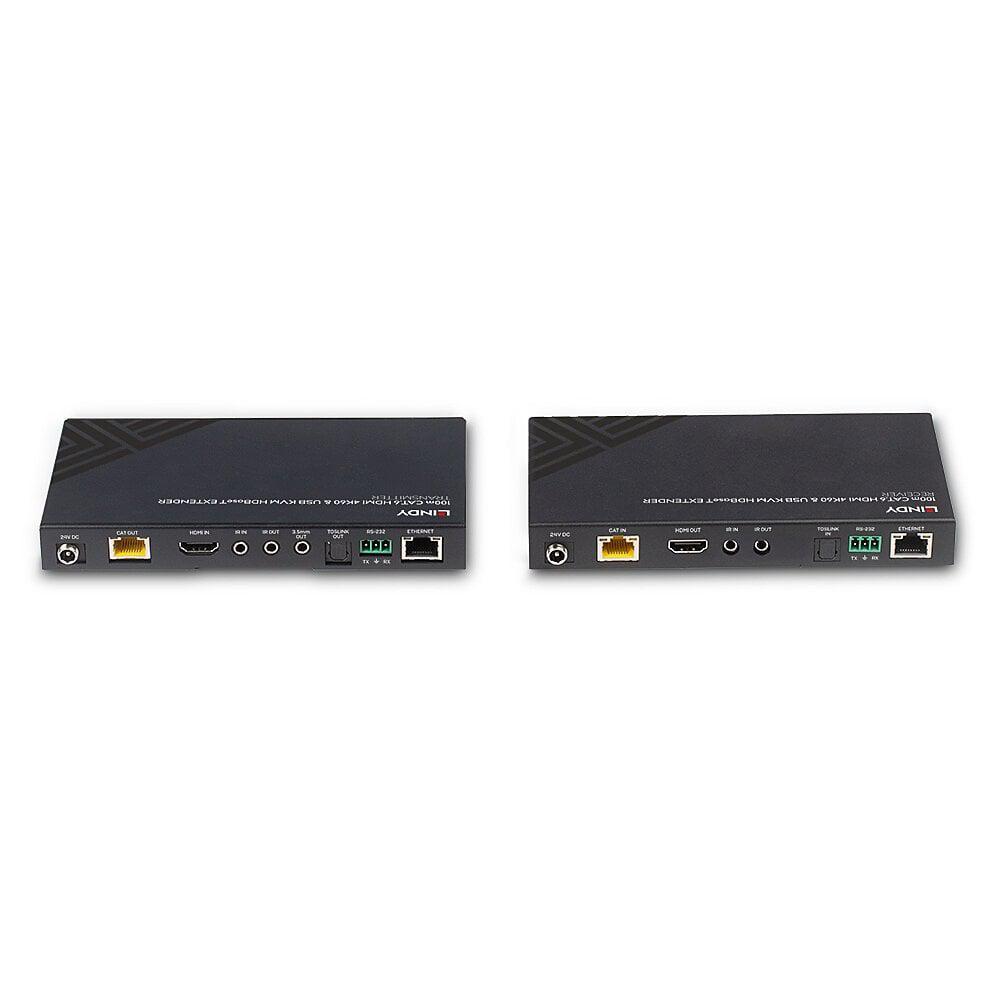

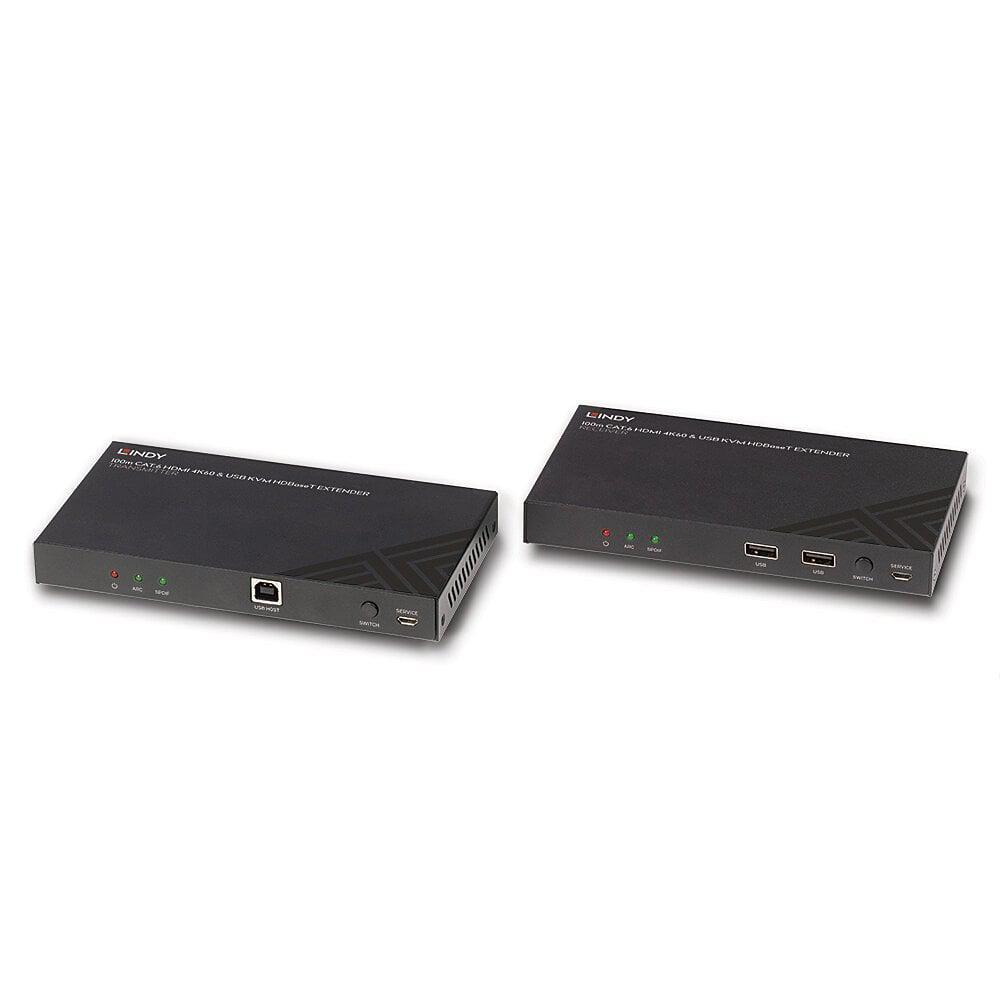

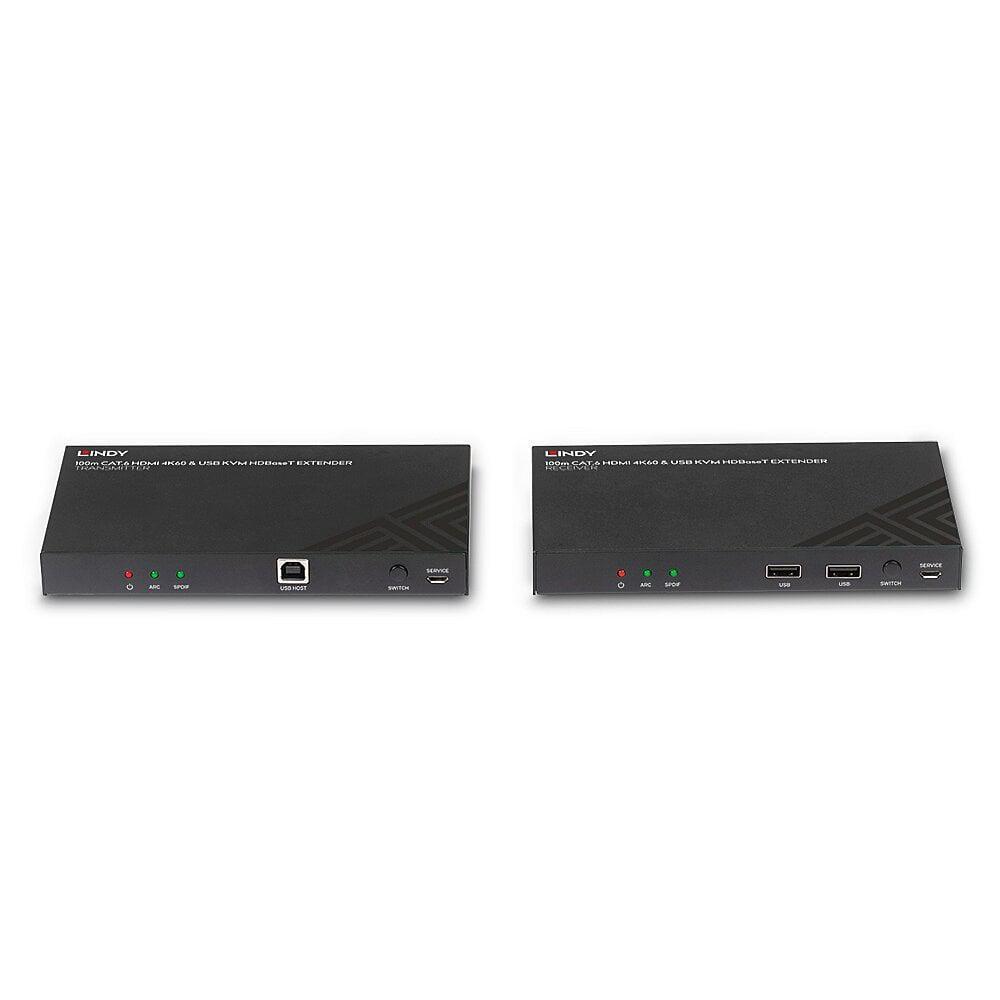

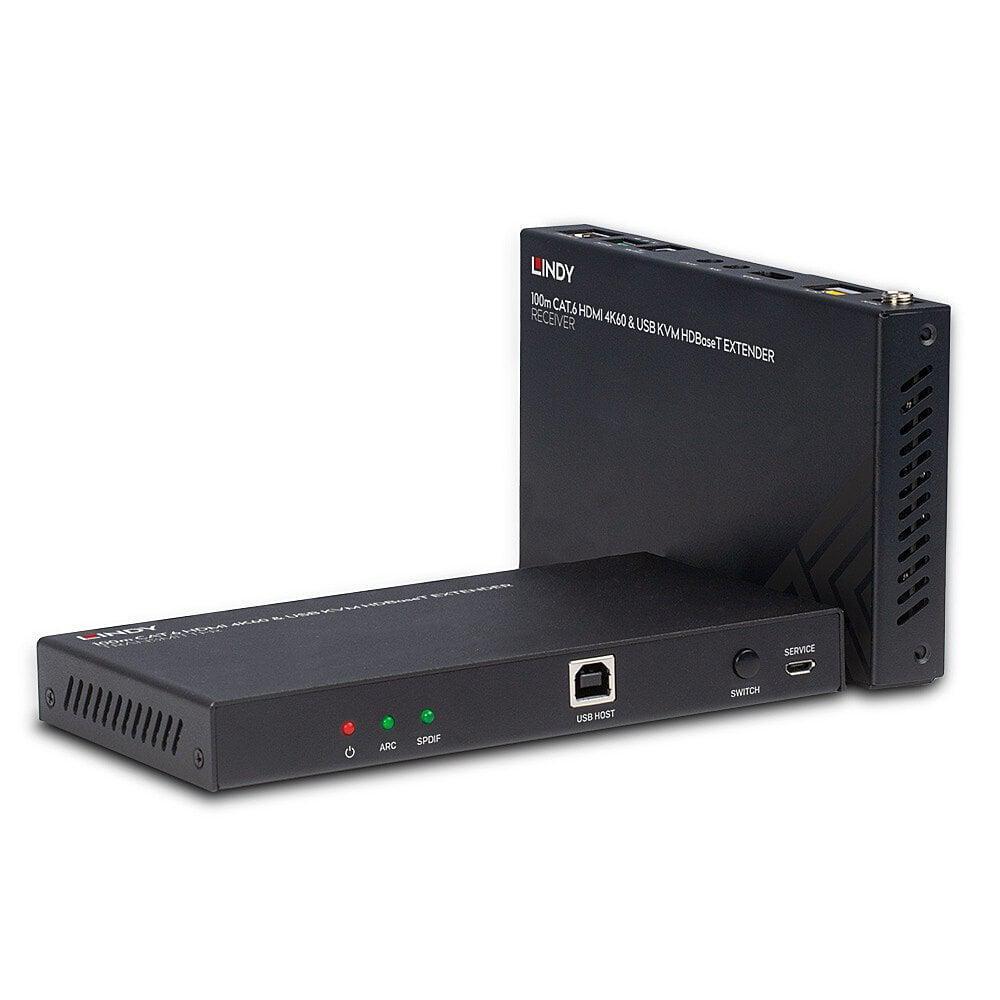

Lindy 100m Cat.6 HDMI 4K60 HDBaseT KVM Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR ARC Support as well as USB, RS-232, CEC & Ethernet pass-through & bi- directional IR for simple control Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0, USB 2.0 Supported Bandwidth: 18 Gbps Maximum Distance: 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit 100m (328.08ft) - 1920x1080@60Hz Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through TosLink (Optical) Up to 5.1Ch 3.5mm Up to 2.0Ch Separate Audio Ports: TosLink (Optical), 3.5mm IR Support: 20 - 60KHz CEC Support: Pass-through Serial Interface: RS-232 Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: VS2310TX-A1 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) ARC Support Connectors Transmitter Input: HDMI Type A (Female), USB Type B (Female), 3.5mm IR (Female) Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female) Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 165x88x20mm (6.5x3.46x0.79in) per unit Housing Material: Metal Net Weight: 0.335kg (0.74lb) Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 265x70x210mm (10.43x2.76x8.27in) Gross Weight: 1.29kg (2.84lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents HDBaseT HDMI KVM Extender, Transmitter HDBaseT HDMI KVM Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38343 EAN: 4002888383431 https://www.lindy-international.com/100m-Cat-6-HDMI-4K60-Audio-IR-RS- 232-HDBaseT-KVM-Extender.htm?websale8=ld0101.ld021102&pi=38343 &ci=10
