Prezentare detaliată

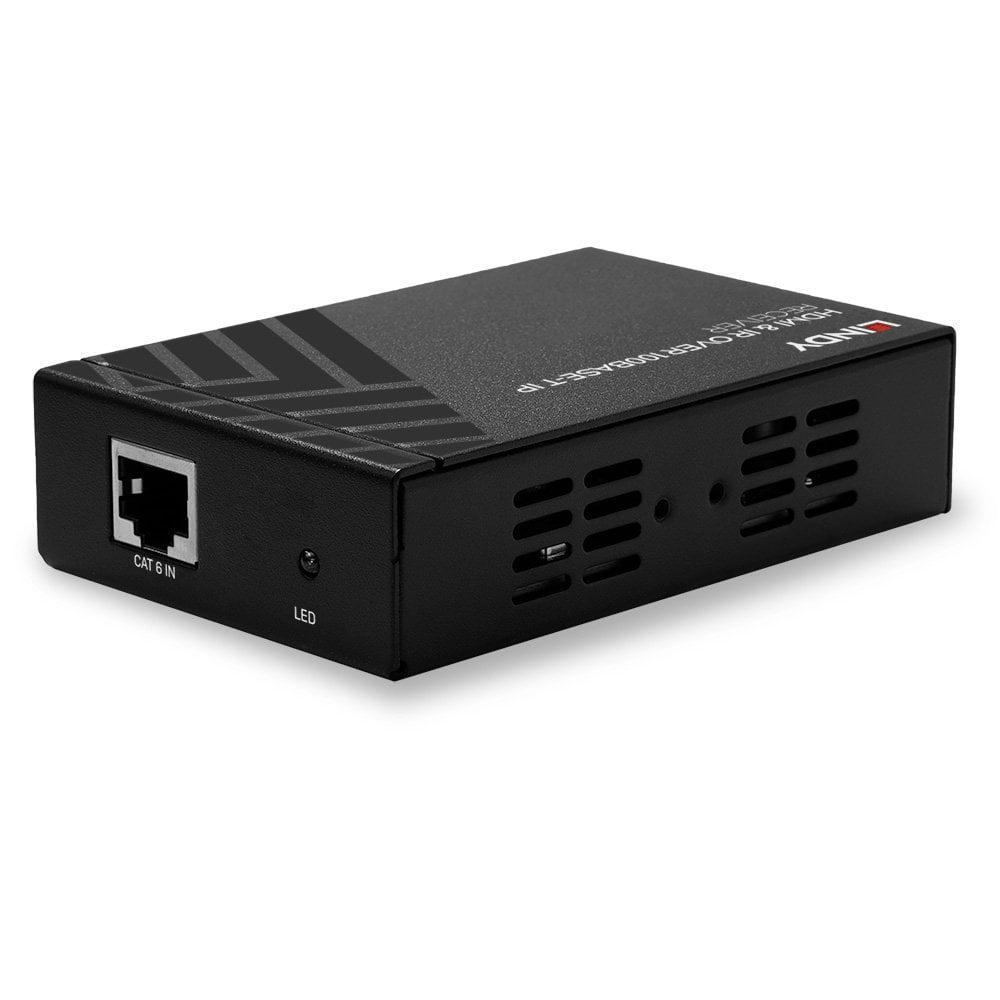

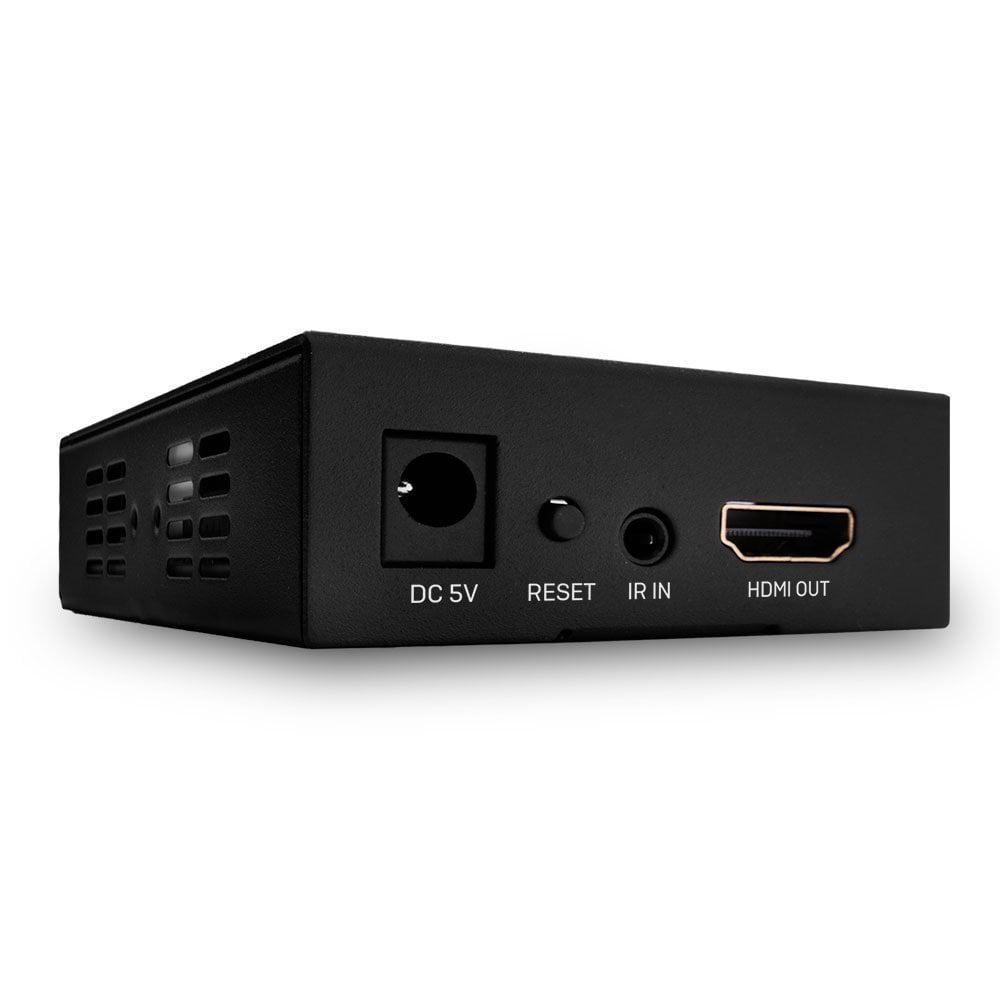

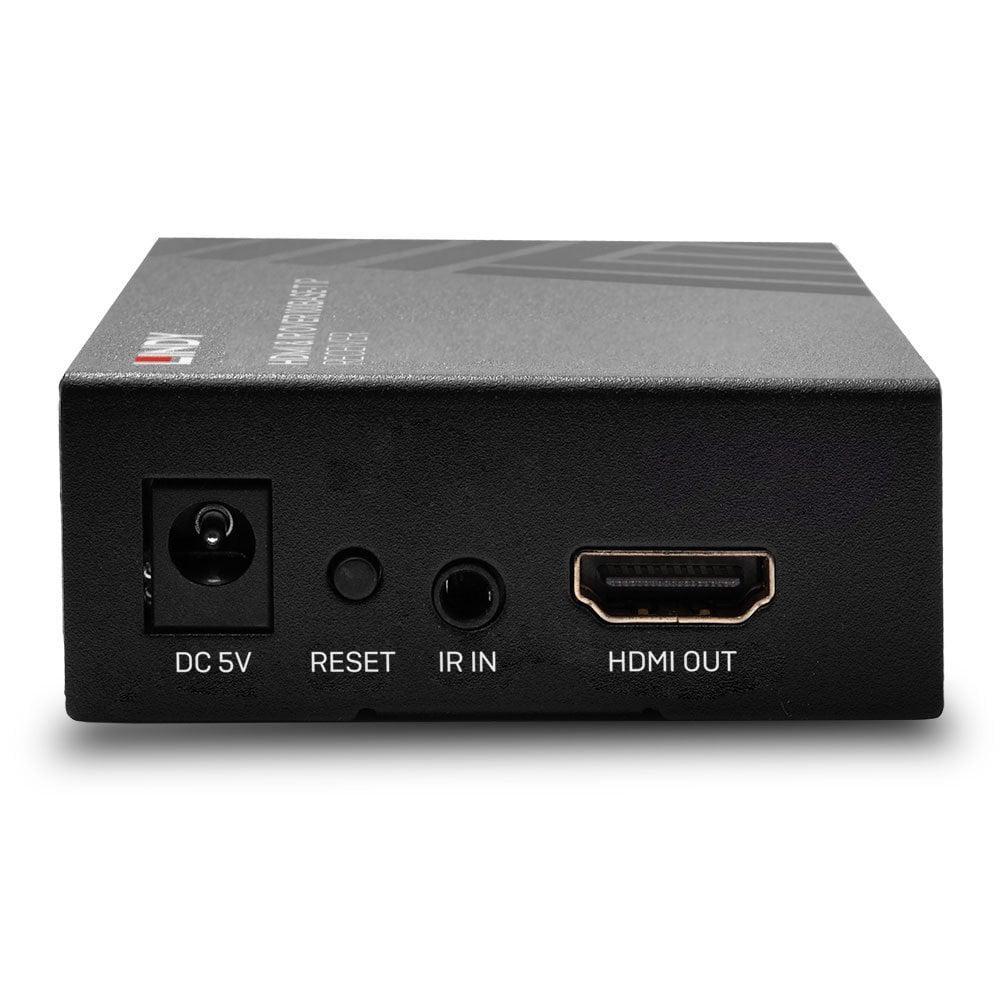

Lindy HDMI & IR over 100Base-T IP Receiver Description Add additional HDMI over IP receivers to create larger networked distribution setups Simple, scalable solution for developing 1-to-many or many-to-many installations Supports resolutions up to 1920x1080@60Hz 4:4: 4 8bit Supports IR extension from the transmitter Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.2 Supported Bandwidth: 4.95 Gbps Maximum Distance: 100m (328.08ft) Maximum Resolution: 1920x1080@60Hz 4:4:4 8bit HDCP Support: Pass-through EDID Pass Through: - Supported Audio: 2 Channel PCM Separate Audio Ports: - IR Support: 20-60 kHz CEC Support: - Serial Interface: - Transmission Protocol: IP Transmission Medium: 1 x Cat.5e/6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: Taifatech 680 Special Features: - Connectors Transmitter Input: - Transmitter Output: - Receiver Input: RJ45 (Female), IR (Female) Receiver Ouput: HDMI (Female) Bidirectonal Ports: - Power: 5.5/2.1mm DC socket Physical Properties Dimensions WxHxD: 100x65x26mm (3.94x2.56x1.02in) per unit Housing Material: Metal Nett Weight: 0.245kg (0.54lb) Operating Temperature: 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 5VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: Gross Weight: 0.55kg (1.21lb) Warranty (Years): 2 Certificated: CE, FCC, REACH and RoHS Package Contents Receiver unit IR receiver cable Multi-Country Power Supply (EU, UK, US & AUS) Lindy manual https://www.lindy-international.com/HDMI-IR-over-100Base-T-IP- Receiver.htm?websale8=ld0101.ld021102&pi=38129&ci=20
