Prezentare detaliată

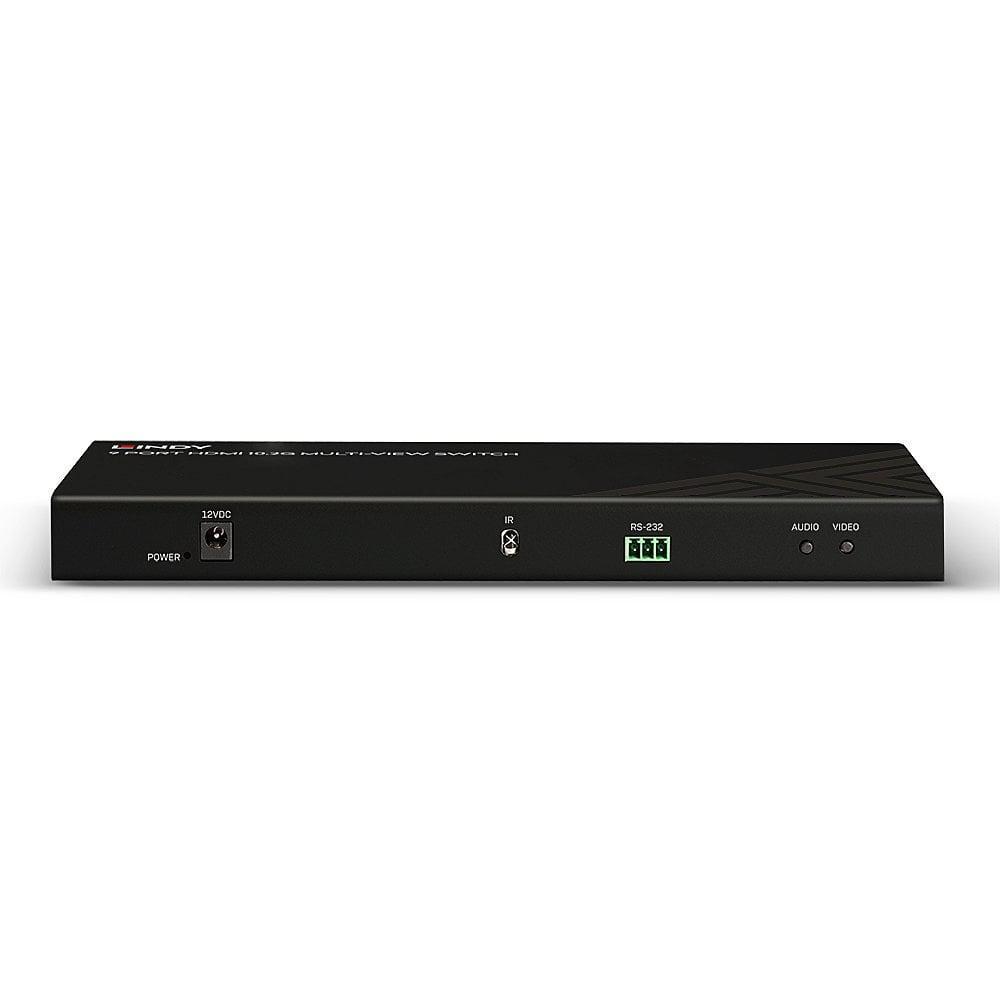

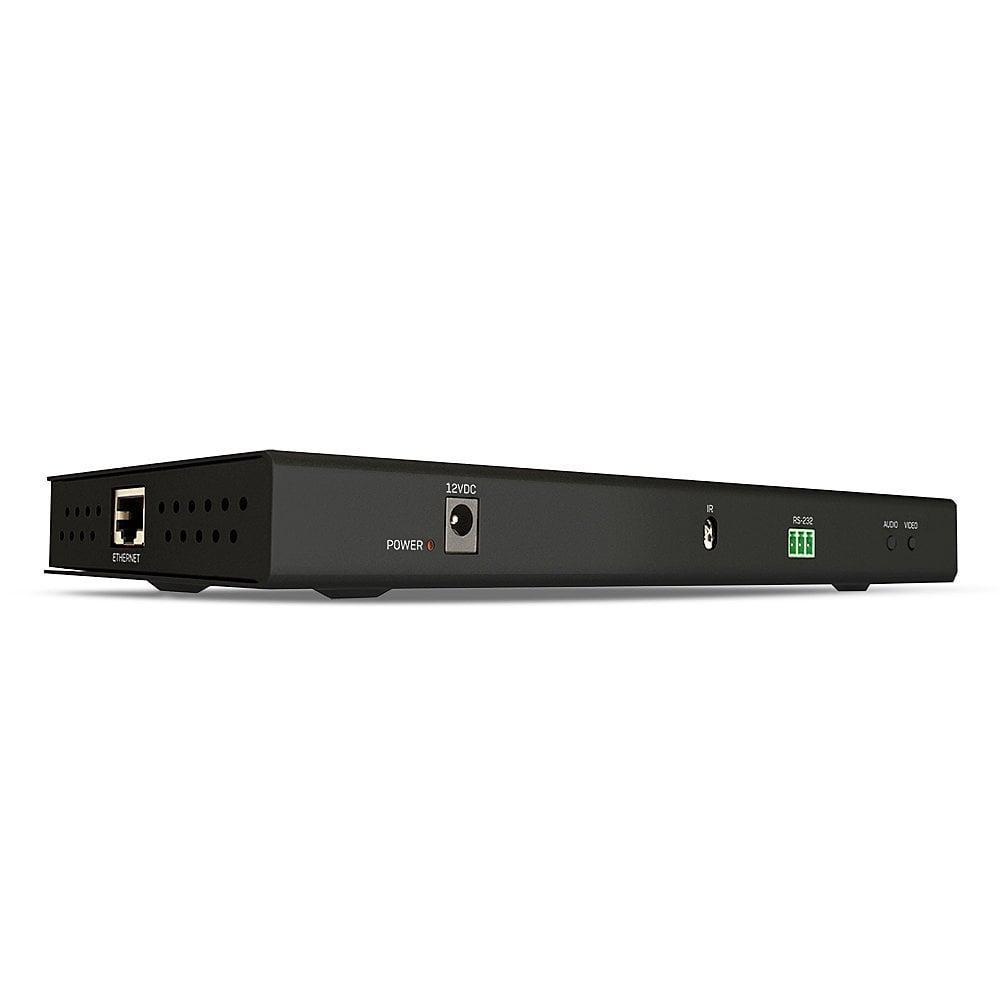

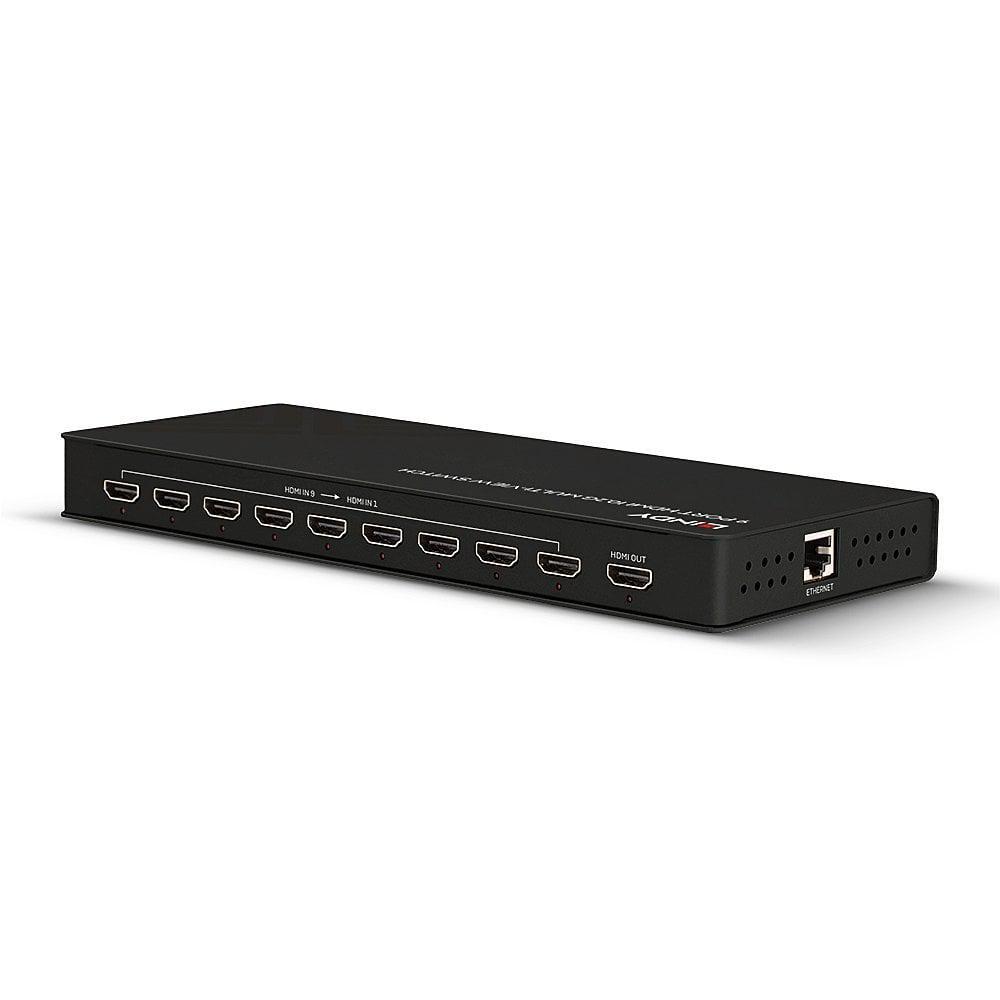

Lindy 9 Port HDMI 10.2G Multi-view Switch Description Connects 9 HDMI inputs and view on a single HDMI display Supports resolutions up to 3840x2160@30Hz 4:4:4 8bit Simple switching via push button, IR remote or RS-232 Seamless switching between sources Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.4 Supports Bandwidth: 10.2Gbps Maximum Resolution: 3840x2160@30Hz 4:4:4 8bit HDCP Support: 1.4 Supported Audio: HDMI Audio Pass-through Separate Audio Ports: - IR Support : 38KHz CEC Support: - Serial Interface: RS-232 Special Features: Seamless Switching Connectors Input: 9 x HDMI Type A (Female) Output: HDMI Type A (Female) Control: RS-232 Terminal Blocks (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 252x25x105mm (9.92x0.98x4.13in) Housing Material: Metal Net Weight: 1.1kg (2.43lb) Operating Temperature: -15°C - 55°C (5°F - 131°F) Storage Temperature: -15°C - 55°C (5°F - 131°F) Humidity: 0 - 90% RH (non-condensing) Power Requirements: 12VDC 2A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 280x55x195mm (11.02x2.17x7.68in) Gross Weight: 1.4kg (3.09lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents 9 Port HDMI 4K30 Multi-view Switch Multi-country Power Supply (UK, EU, US & AUS) 4 x Screws IR Remote Control with 2xAAA Battery Lindy Manual Purchasing Information No.: 38330 EAN: 4002888383301 https://www.lindy-international.com/9-Port-HDMI-4K30-Multi-View- Switch-.htm?websale8=ld0101.ld021102&pi=38330&ci=10
