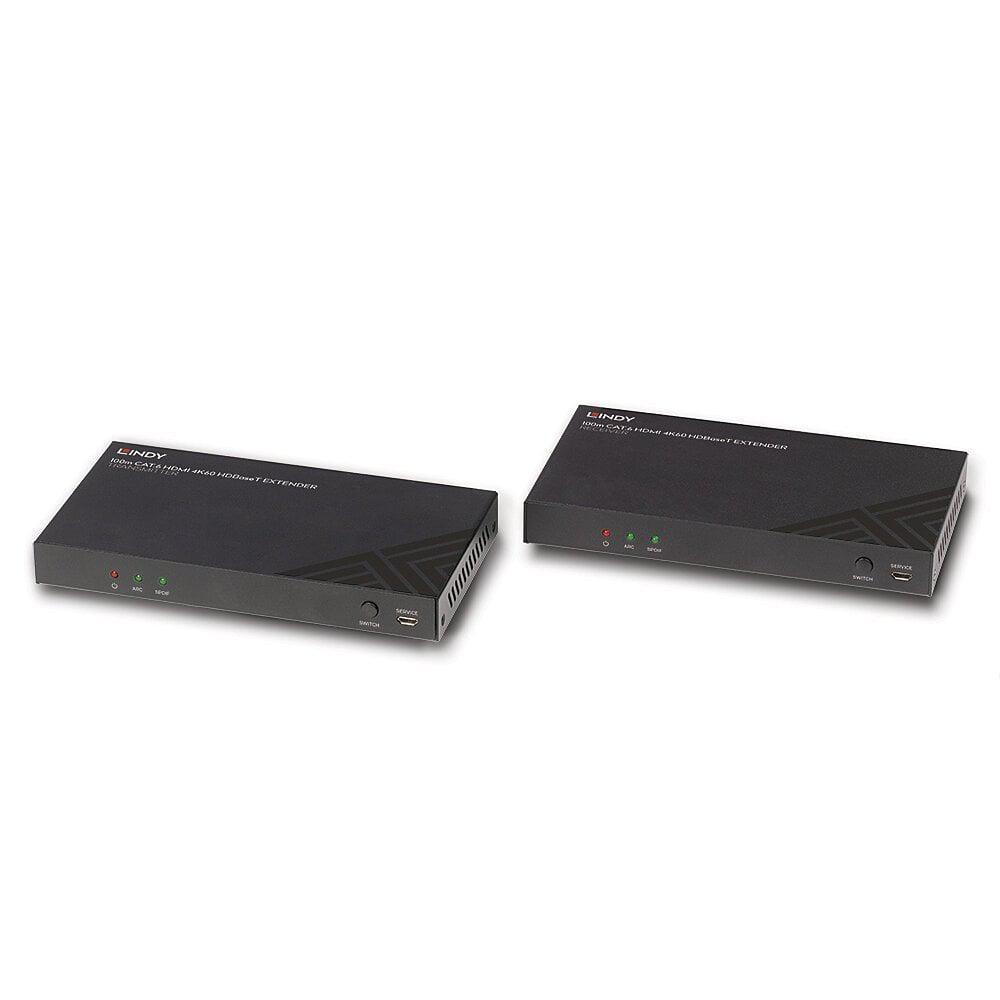

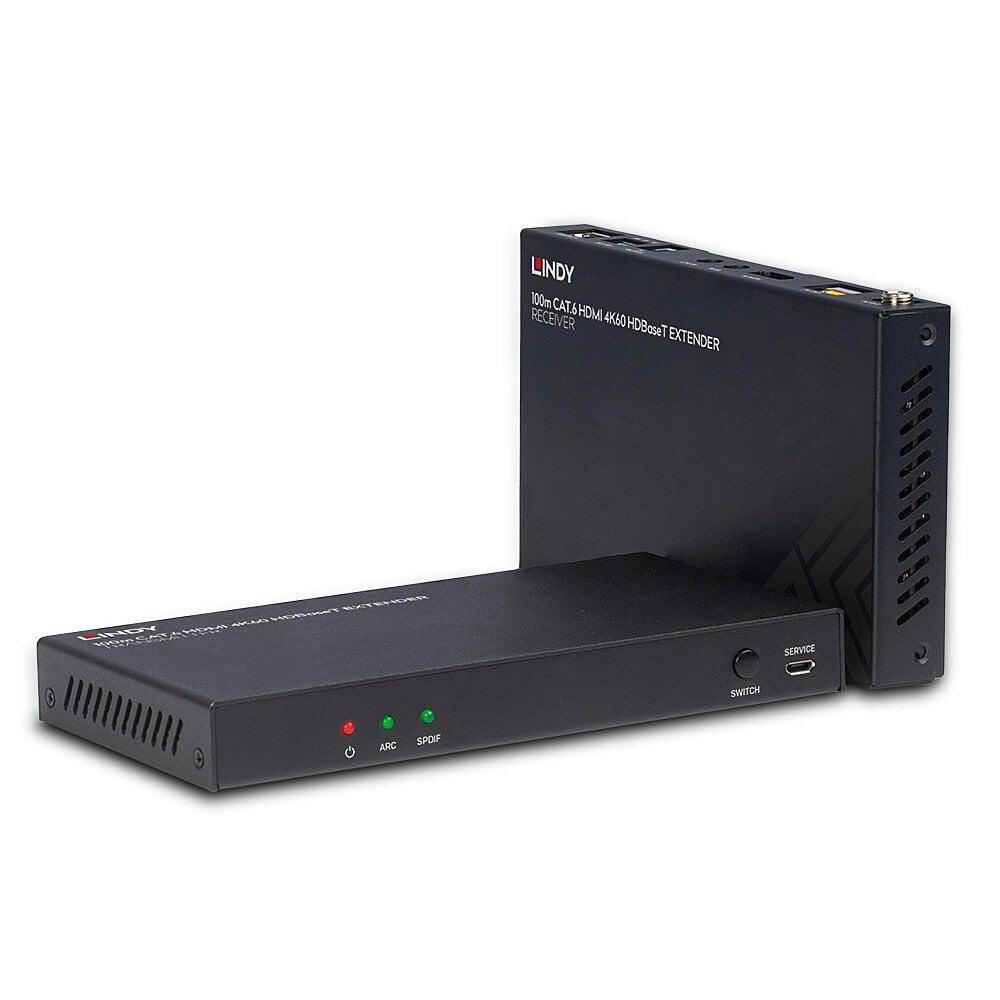

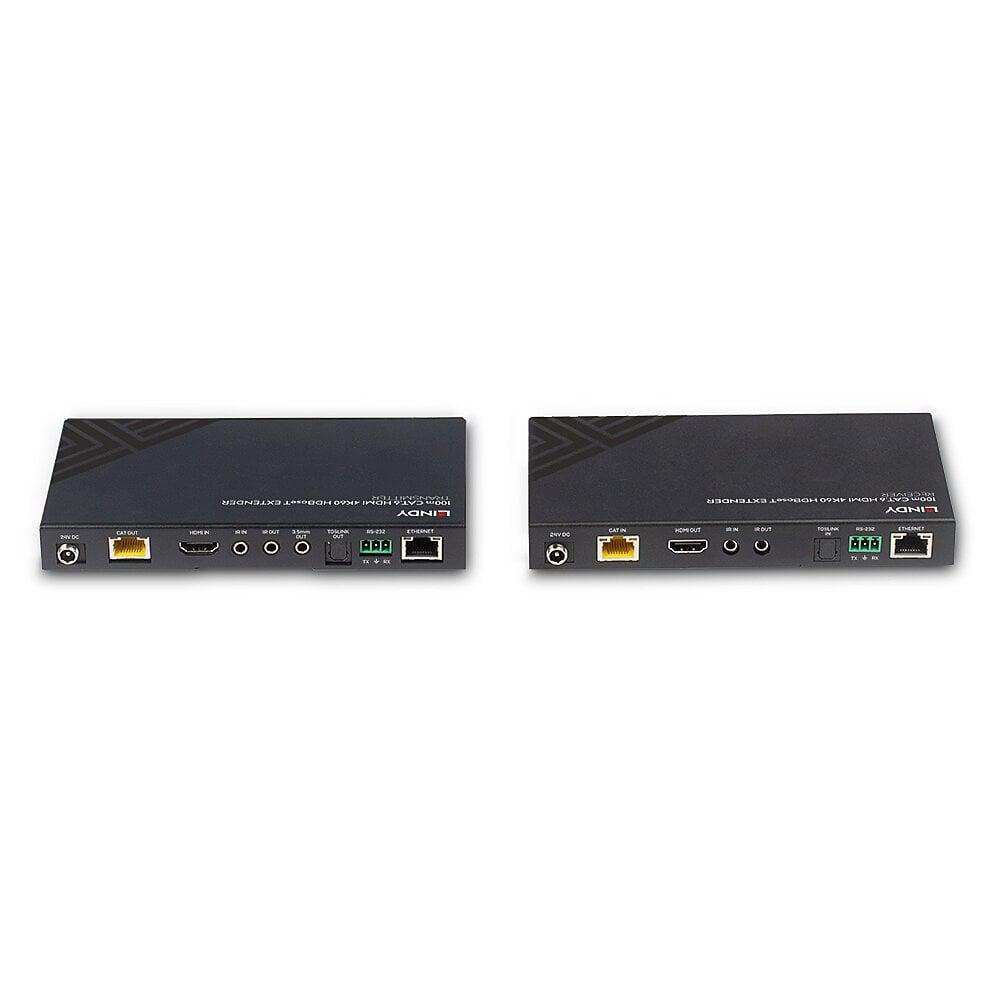

Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network

LINDY · NOD-LY-38340

Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network

Name: Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network
Brand: LINDY
SKU: NOD-LY-38340
Price: 5055 RON
Availability: BackOrder

Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR ARC Support as well as RS-232, CEC & Ethernet pass-through & bi- directional IR for simple control Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 2.0 Supported Bandwidth: 18 Gbps Maximum Distance: 70m (229.66ft) - 3840x2160@60Hz 4:4:4 8bit 100m (328.08ft) - 1920x1080@60Hz Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit HDCP Support: 2.2 EDID Pass Through: Pass-through Supported Audio: HDMI Audio Pass-through TosLink (Optical) Up to 5.1Ch 3.5mm Up to 2.0Ch Separate Audio Ports: TosLink (Optical), 3.5mm IR Support: 20 - 60KHz CEC Support: Pass-through Serial Interface: RS-232 Transmission Protocol: HDBaseT Transmission Medium: 1 x Cat.6 Laser Class (only for Fibre): - Wavelength (only for Fibre): - Chipset: VS2310TX-A1 Special Features: HDMI Loop Out Port PoC (Power over Cat.6) ARC Support Connectors Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female) Transmitter Output: RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) Receiver Input: RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) Receiver Output: HDMI Type A (Female), 3.5mm IR (Female) Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) Power: 5.5/2.1mm Physical Properties Dimensions (approx.) WxDxH: 163x90x16mm (6.42x3.54x0.63in) per unit Housing Material: Metal Net Weight: 0.77kg (1.7lb) Operating Temperature : 0°C - 40°C (32°F - 104°F) Storage Temperature: -20°C - 60°C (-4°F - 140°F) Humidity: 20 - 90% RH (non-condensing) Power Requirements: 24VDC 1A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 265x70x210mm (10.43x2.76x8.27in) Gross Weight: 1.28kg (2.82lb) Warranty (Years): 2 Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Contents HDBaseT HDMI Extender, Transmitter HDBaseT HDMI Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual Purchasing Information No.: 38340 EAN: 4002888383400 https://www.lindy-international.com/100m-Cat-6-HDMI-4K60-Audio-IR-RS- 232-HDBaseT-Extender-.htm?websale8=ld0101.ld021102&pi=38340 &ci=10

4.178 lei

prețuri fără TVA · 5.055 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.4.178 lei

LINDY · PerifericeDoar pentru firme (B2B)

Lindy 100m Cat.6 HDMI 4K60 HDBaseT Extender Description Distributes HDMI resolutions up to 100m over Cat.6 network

SKU: NOD-LY-38340

AC adapter output current: 1 A
AC adapter output voltage: 24 V
Cable types supported: Cat6
Certification: CE, UKCA, FCC, RoHS & REACH
Connectivity technology: Wired
Distanta maxima: 100 m

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

4.178 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandLINDY

Cod produsNOD-LY-38340

CategoriePeriferice

AC adapter output current1 A

AC adapter output voltage24 V

Cable types supportedCat6

CertificationCE, UKCA, FCC, RoHS & REACH

Connectivity technologyWired

Distanta maxima100 m

Harmonized System (HS) code84733080

Interfata HDMIDa

ManualYes

MaterialMetal

Maximum digital resolution3840 x 2160 pixels

Maximum refresh rate60 Hz

Maximum transfer distance100 m

Numar porturi RJ-452

Numar porturi USB2

Operating relative humidity (H-H)20 - 90%

Operating temperature (T-T)0 - 40 °C

Package depth70 mm

Package height210 mm

Package weight1.28 kg

Package width265 mm

Product colourBlack

Receiver depth9 cm

Receiver height1.6 cm

Receiver local video port typeHDMI

Receiver width16.3 cm

Rezolutie maxima3840 x 2160 pixeli

RJ-45 ports quantity (receiver)1

RJ-45 ports quantity (transmitter)1

Storage temperature (T-T)-20 - 60 °C

Supported bandwidth18 Gbit/s

Transmitter depth9 cm

Transmitter height1.6 cm

Transmitter video port typeHDMI

Transmitter width16.3 cm

TypeTransmitter & receiver

USB 2.0 ports quantity2

USB port typeUSB Type-A

Weight770 g

Specificații

Brand	LINDY
Cod produs	NOD-LY-38340
Categorie	Periferice
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
AC adapter output current	1 A
AC adapter output voltage	24 V
Cable types supported	Cat6
Certification	CE, UKCA, FCC, RoHS & REACH
Connectivity technology	Wired
Distanta maxima	100 m
Harmonized System (HS) code	84733080
Interfata HDMI	Da
Manual	Yes
Material	Metal
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Maximum transfer distance	100 m
Numar porturi RJ-45	2
Numar porturi USB	2
Operating relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 40 °C
Package depth	70 mm
Package height	210 mm
Package weight	1.28 kg
Package width	265 mm
Product colour	Black
Receiver depth	9 cm
Receiver height	1.6 cm
Receiver local video port type	HDMI
Receiver width	16.3 cm
Rezolutie maxima	3840 x 2160 pixeli
RJ-45 ports quantity (receiver)	1
RJ-45 ports quantity (transmitter)	1
Storage temperature (T-T)	-20 - 60 °C
Supported bandwidth	18 Gbit/s
Transmitter depth	9 cm
Transmitter height	1.6 cm
Transmitter video port type	HDMI
Transmitter width	16.3 cm
Type	Transmitter & receiver
USB 2.0 ports quantity	2
USB port type	USB Type-A
Weight	770 g

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

AC adapter output current: 1 AAC adapter output voltage: 24 VCable types supported: Cat6Certification: CE, UKCA, FCC, RoHS & REACHConnectivity technology: WiredDistanta maxima: 100 m
