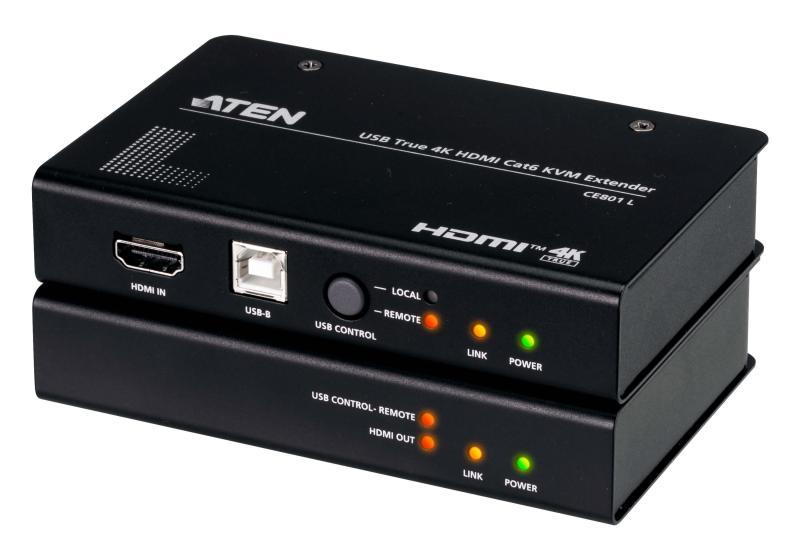

KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia de conectare: Prin cablu
ATEN · NOD-CE801-AT-G

KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia de conectare: Prin cablu

KVM Extender Aten CE801. Tipul: Transmițător & transmițător-receptor AV, Tehnologia de conectare: Prin cablu, Maximă de transfer de la distanţă: 100 m. Tip port transmițător video: HDMI, Tip port transmițător local video: HDMI, Tip port transmițător local tastatură/mouse: USB. Tip port receptor local video: HDMI, Tip port receptor local tastatură/mouse: USB. Tip port USB: USB Tip-A. Voltajul de ieşire al adaptorului AC: 5 V, Consum energie (transmițător) (max): 2,59 W, Consum energie (receptor): 1,88 W
1.128 lei
prețuri fără TVA · 1.365 lei cu TVA
La comandă·5–7 zile
Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →
Cantitate
1
Preț de volum de la 5 buc. — cere ofertă
Total 1 buc.1.128 lei
BrandATEN
Cod produsNOD-CE801-AT-G
CategoriePeriferice
AC adapter includedYes
AC adapter output voltage5 V
Cable types supportedCat6, Cat6a
Cables includedUSB Type-A to USB Type-B
Connectivity technologyWired
Country of originChina
DC-in jackYes
Distanta maxima100 m
Extended display identification data (EDID)Yes
Harmonized System (HS) code85176200
HDCPYes
HDCP version2.3
HDMI-INTERFACEHDMI 1.3
Interfata HDMIDa
KVM port selectionPush-buttons
LED indicatorsLink, Power, Status
ManualYes
Master (outer) case gross weight6.99 kg
Master (outer) case height194 mm
Master (outer) case length336 mm
Master (outer) case net weight5.27 kg
Master (outer) case volume19566.941 cm³
Master (outer) case width300 mm
MaterialMetal
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate60 Hz
Maximum transfer distance100 m
MAXIMUM-DISTANCE70M
MAXIMUM-RESOLUTION3840x2160@60Hz
Mounting bracket(s) includedYes
Numar porturi RJ-451
Numar porturi USB4
Operating relative humidity (H-H)0 - 80%
Operating temperature (T-T)0 - 40 °C
Package volume3029.9026 cm³
Package weight1.38 kg
Power consumption (receiver) (max)1.88 W
Power consumption (transmitter) (max)2.59 W
Product colourBlack
Rack mountingYes
Receiver depth12.8 cm
Receiver height2.5 cm
Receiver local keyboard/mouse port typeUSB
Receiver local video port typeHDMI
Receiver weight310 g
Receiver width8.15 cm
Rezolutie maxima3840 x 2160 pixeli
RJ-45 ports quantity (receiver)1
RJ-45 ports quantity (transmitter)1
RS-232 ports2
Storage temperature (T-T)-20 - 60 °C
Supported bandwidth18 Gbit/s
SUPPORTED-BANDWIDTH10.2GBPS
TRANSMISSION-PROTOCOLCAT X
Transmitter depth12.8 cm
Transmitter height2.5 cm
Transmitter local keyboard/mouse port typeUSB
Transmitter local video portYes
Transmitter local video port typeHDMI
Transmitter USB Type-B ports quantity1
Transmitter video port typeHDMI
Transmitter weight320 g
Transmitter width8.21 cm
TypeAV transmitter & transceiver
USB 2.0 ports quantity4
USB port typeUSB Type-A
