TP-LINK · NOD-TL-SG3210XHP-M2

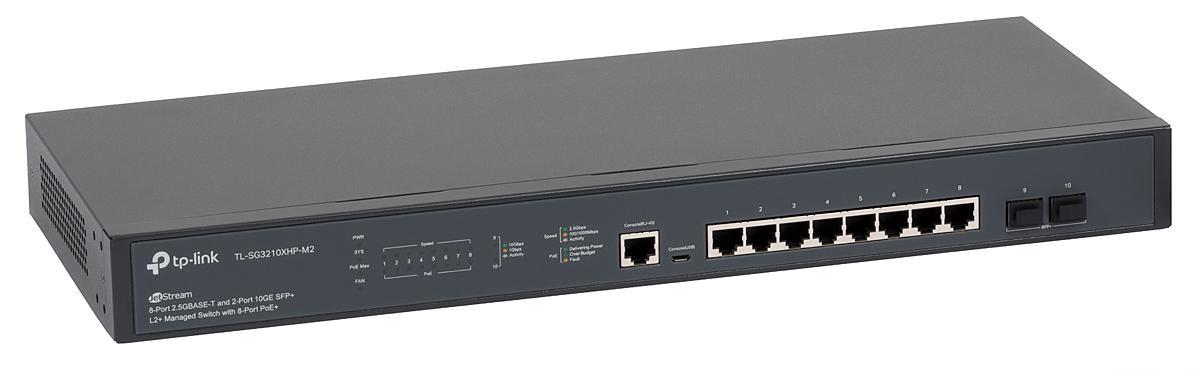

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports

Name: "JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports
Brand: TP-LINK
SKU: NOD-TL-SG3210XHP-M2
Price: 3957 RON
Availability: BackOrder

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"

3.270 lei

prețuri fără TVA · 3.957 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.3.270 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports

SKU: NOD-TL-SG3210XHP-M2

10G support: Yes
2.5G Ethernet (copper) ports quantity: 8
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Access Control List (ACL): Yes
ARP inspection: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

3.270 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SG3210XHP-M2

CategorieNetworking

10G supportYes

2.5G Ethernet (copper) ports quantity8

AC input frequency50/60 Hz

AC input voltage100 - 240 V

Access Control List (ACL)Yes

ARP inspectionYes

AuthenticationMAC-based authentication, Port-based authentication

Authentication typeAAA, TACACS+

Basic switching RJ-45 Ethernet ports quantity8

Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)

BPDU filtering/protectionYes

Broadcast storm controlYes

Cables includedAC

CertificationCE, FCC, RoHS

Cloud-managedYes

Configuring Location Settings (CLI)Yes

Console portRJ-45/Micro-USB

Depth180 mm

DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Ethernet LAN data rates100,1000,2500 Mbit/s

Flow control supportYes

Form factor1U

Forwarding rate59.52 Mpps

GARP VLAN Registration Protocol (GVRP)Yes

Harmonized System (HS) code85176990

Head-of-line (HOL) blockingYes

Heat dissipation996.35 BTU/h

Height44 mm

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

IP routingYes

IP-MAC-Port bindingYes

Jumbo frames9000

Jumbo frames supportYes

LAN port typeGigabit

LAN-Ports8

LayerLayer-2

LED indicatorsYes

Link aggregationYes

Loop protectionYes

MAC address filteringYes

MAC address table16000 entries

ManagementDa

Management protocolsSNMPv1/v2c/v3, SNTP

MIB supportRFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Montare in RackNu

Multicast Listener Discovery (MLD) snoopingY

Multicast supportYes

Networking standardsIEEE 802.1D, IEEE 802.1s, IEEE 802.1w

Number of fans2 fan(s)

Number of IP interfaces16

Number of static routes48

Number of VLANs4000

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 45 °C

Package depth250 mm

Package height80 mm

Package typeBox

Package weight2.84 kg

Package width528 mm

Packet buffer memory12 MB

Password protectionYes

PoEDa

Port mirroringYes

Porturi RJ 455-10

Porturi SFP1-2

Power connectorAC-in jack

Power consumption (max)292 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) power per port30 W

Power over Ethernet plus (PoE+) ports quantity8

Power sourceAC

Power supply includedYes

Product colourBlack

Quality of Service (QoS) supportYes

Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)

Quick start guideYes

Rack mountingYes

RackableNo

Rate limitingYes

Redundant-PSUYes

Security algorithmsHTTPS, SSH, SSH-2, SSL/TLS

SFP module slots quantity2

SFP+ module slots quantity2

Spanning tree protocolYes

SSH/SSL supportYes

StackableNo

Static port securityYes

Static routeYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Switch layerL2

Switch typeManaged

Switching capacity80 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget240 W

Traffic classificationYes

Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

Viteza transfer2.5G

VLAN supportYes

Web-based managementYes

Width440 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SG3210XHP-M2
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	Yes
2.5G Ethernet (copper) ports quantity	8
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Access Control List (ACL)	Yes
ARP inspection	Yes
Authentication	MAC-based authentication, Port-based authentication
Authentication type	AAA, TACACS+
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Cables included	AC
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/Micro-USB
Depth	180 mm
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates	100,1000,2500 Mbit/s
Flow control support	Yes
Form factor	1U
Forwarding rate	59.52 Mpps
GARP VLAN Registration Protocol (GVRP)	Yes
Harmonized System (HS) code	85176990
Head-of-line (HOL) blocking	Yes
Heat dissipation	996.35 BTU/h
Height	44 mm
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
IP routing	Yes
IP-MAC-Port binding	Yes
Jumbo frames	9000
Jumbo frames support	Yes
LAN port type	Gigabit
LAN-Ports	8
Layer	Layer-2
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address filtering	Yes
MAC address table	16000 entries
Management	Da
Management protocols	SNMPv1/v2c/v3, SNTP
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Montare in Rack	Nu
Multicast Listener Discovery (MLD) snooping	Y
Multicast support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Number of fans	2 fan(s)
Number of IP interfaces	16
Number of static routes	48
Number of VLANs	4000
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Package depth	250 mm
Package height	80 mm
Package type	Box
Package weight	2.84 kg
Package width	528 mm
Packet buffer memory	12 MB
Password protection	Yes
PoE	Da
Port mirroring	Yes
Porturi RJ 45	5-10
Porturi SFP	1-2
Power connector	AC-in jack
Power consumption (max)	292 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Power source	AC
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide	Yes
Rack mounting	Yes
Rackable	No
Rate limiting	Yes
Redundant-PSU	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity	2
SFP+ module slots quantity	2
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	No
Static port security	Yes
Static route	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L2
Switch type	Managed
Switching capacity	80 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	240 W
Traffic classification	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Viteza transfer	2.5G
VLAN support	Yes
Web-based management	Yes
Width	440 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: Yes2.5G Ethernet (copper) ports quantity: 8AC input frequency: 50/60 HzAC input voltage: 100 - 240 VAccess Control List (ACL): YesARP inspection: Yes
