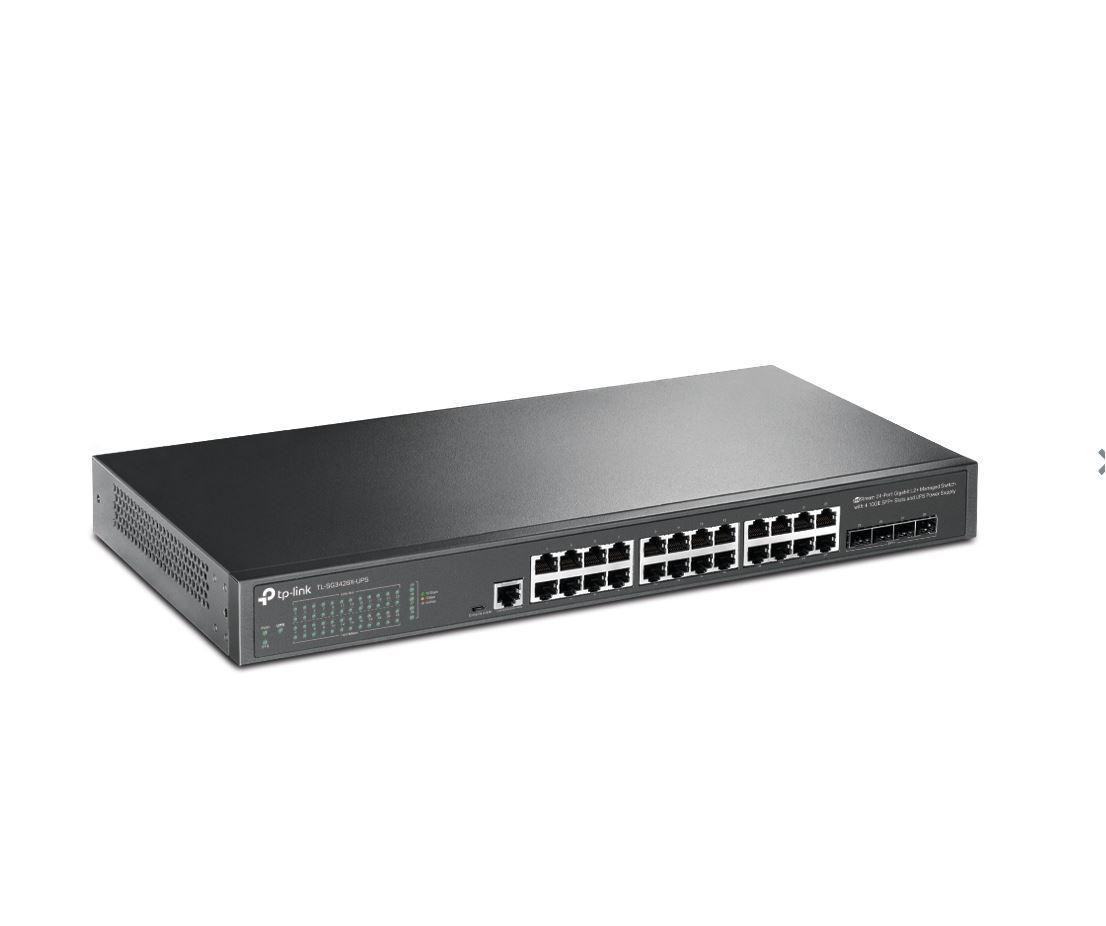

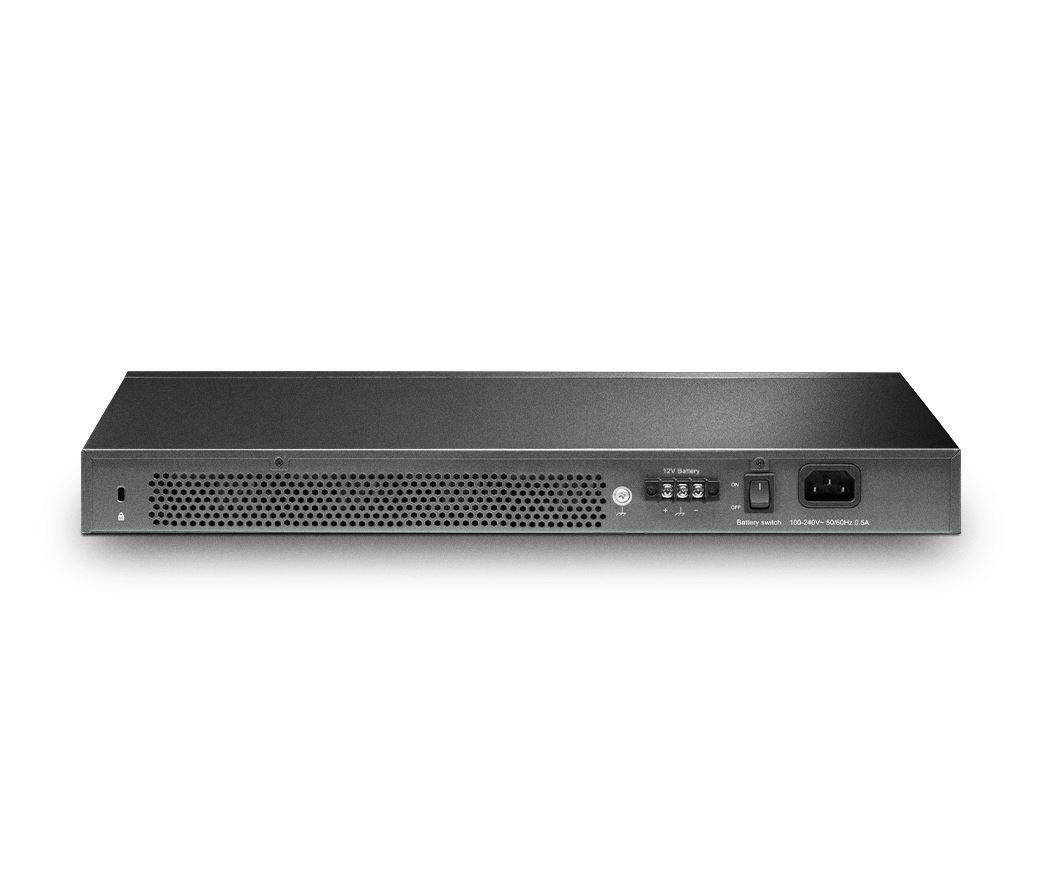

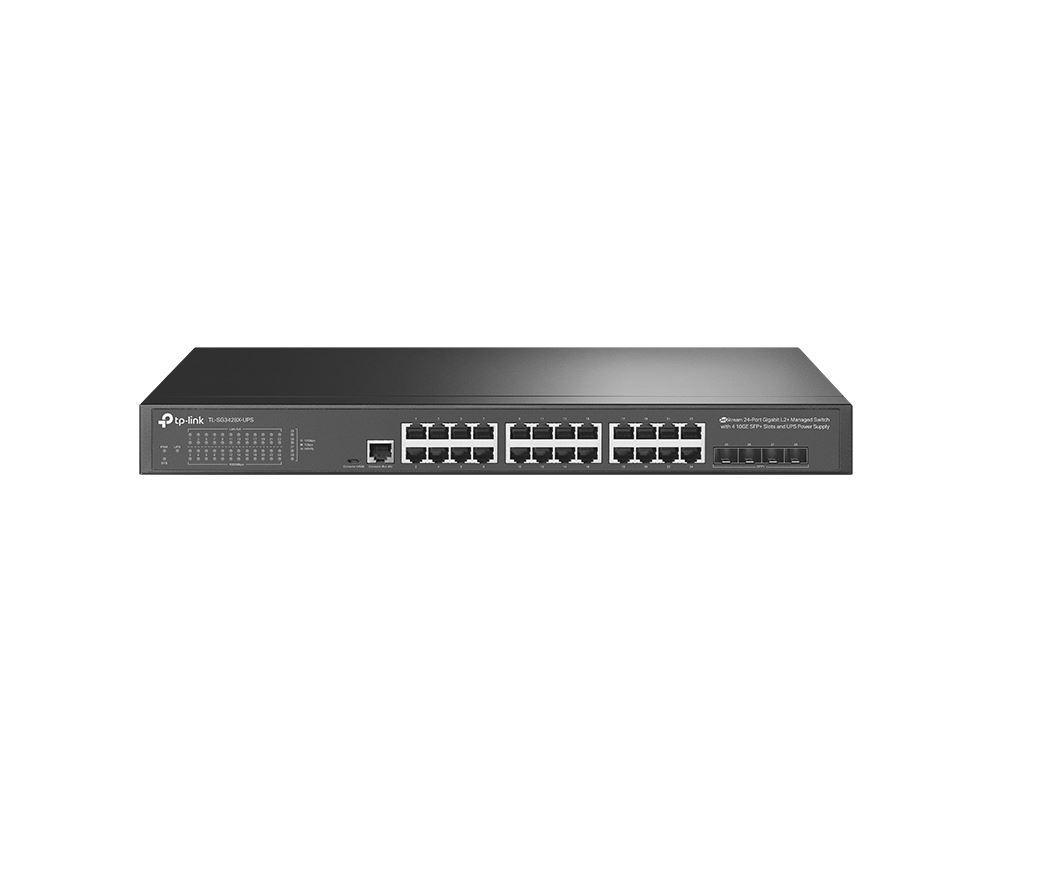

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots and UPS Power Supply PORT: 24× Gigabit RJ45 Ports

TP-LINK · NOD-TL-SG3428X-UPS

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots and UPS Power Supply PORT: 24× Gigabit RJ45 Ports

Name: "JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots and UPS Power Supply PORT: 24× Gigabit RJ45 Ports
Brand: TP-LINK
SKU: NOD-TL-SG3428X-UPS
Price: 2887 RON
Availability: BackOrder

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots and UPS Power Supply PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Taca cs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"

2.386 lei

prețuri fără TVA · 2.887 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.2.386 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

"JetStream™ 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots and UPS Power Supply PORT: 24× Gigabit RJ45 Ports

SKU: NOD-TL-SG3428X-UPS

10G support: Yes
AC input frequency: 50/60 Hz
AC input voltage: 100 - 240 V
Access Control List (ACL): Yes
ARP inspection: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

2.386 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SG3428X-UPS

CategorieNetworking

10G supportYes

AC input frequency50/60 Hz

AC input voltage100 - 240 V

Access Control List (ACL)Yes

ARP inspectionYes

AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication

Authentication typeAAA, TACACS+

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

BPDU filtering/protectionYes

Broadcast storm controlYes

Cables includedAC

CertificationCE, FCC, RoHS

Cloud-managedYes

Configuring Location Settings (CLI)Yes

Console portRJ-45/Micro-USB

Depth180 mm

DHCP featuresDHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Flow control supportYes

Form factor1U

Forwarding rate95.23 Mpps

Head-of-line (HOL) blockingYes

Heat dissipation108.84 BTU/h

Height44 mm

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

IP routingYes

IP-MAC-Port bindingYes

IPv4 & IPv6 featuresIPv6 Telnet, IPv6 ping, IPv6 tracert

Jumbo frames9000

Jumbo frames supportYes

LAN-Port-TypeGigabit

LED indicatorsYes

Link aggregationYes

Loop protectionYes

MAC address filteringYes

MAC address table16000 entries

ManagementDa

Management protocolsSNMPv1/v2c/v3, SNTP

ManualYes

MIB supportRFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Montare in RackDa

Multicast Listener Discovery (MLD) snoopingY

Multicast supportYes

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x

Number of queues8

Number of VLANs4000

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 45 °C

Package typeBox

Packet buffer memory12 MB

PoENu

Port mirroringYes

Porturi RJ 4524-28

Porturi SFP3-4

Power connectorDC-in jack

Power consumption (max)31.9 W

Power over Ethernet (PoE)No

Power sourceAC

Power supply includedYes

Product colourBlack

Quality of Service (QoS) supportYes

Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)

Quick start guideYes

Rack mount kitYes

Rack mountingYes

Rate limitingYes

Reset buttonYes

Security algorithmsHTTPS, SSH, SSH-2, SSL/TLS

SFP module slots quantity4

SFP+ module slots quantity4

Spanning tree protocolYes

SSH/SSL supportYes

StackableYes

Static port securityYes

Static routeYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Switch layerL2/L3

Switch typeManaged

Switching capacity128 Gbit/s

System event logYes

Traffic classificationYes

Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Voice VLAN

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Width440 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SG3428X-UPS
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	Yes
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Access Control List (ACL)	Yes
ARP inspection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	AAA, TACACS+
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Cables included	AC
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/Micro-USB
Depth	180 mm
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Flow control support	Yes
Form factor	1U
Forwarding rate	95.23 Mpps
Head-of-line (HOL) blocking	Yes
Heat dissipation	108.84 BTU/h
Height	44 mm
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
IP routing	Yes
IP-MAC-Port binding	Yes
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Jumbo frames	9000
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address filtering	Yes
MAC address table	16000 entries
Management	Da
Management protocols	SNMPv1/v2c/v3, SNTP
Manual	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Montare in Rack	Da
Multicast Listener Discovery (MLD) snooping	Y
Multicast support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Number of queues	8
Number of VLANs	4000
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Package type	Box
Packet buffer memory	12 MB
PoE	Nu
Port mirroring	Yes
Porturi RJ 45	24-28
Porturi SFP	3-4
Power connector	DC-in jack
Power consumption (max)	31.9 W
Power over Ethernet (PoE)	No
Power source	AC
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide	Yes
Rack mount kit	Yes
Rack mounting	Yes
Rate limiting	Yes
Reset button	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity	4
SFP+ module slots quantity	4
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	Yes
Static port security	Yes
Static route	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L2/L3
Switch type	Managed
Switching capacity	128 Gbit/s
System event log	Yes
Traffic classification	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Voice VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Width	440 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: YesAC input frequency: 50/60 HzAC input voltage: 100 - 240 VAccess Control List (ACL): YesARP inspection: YesAuthentication: Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
