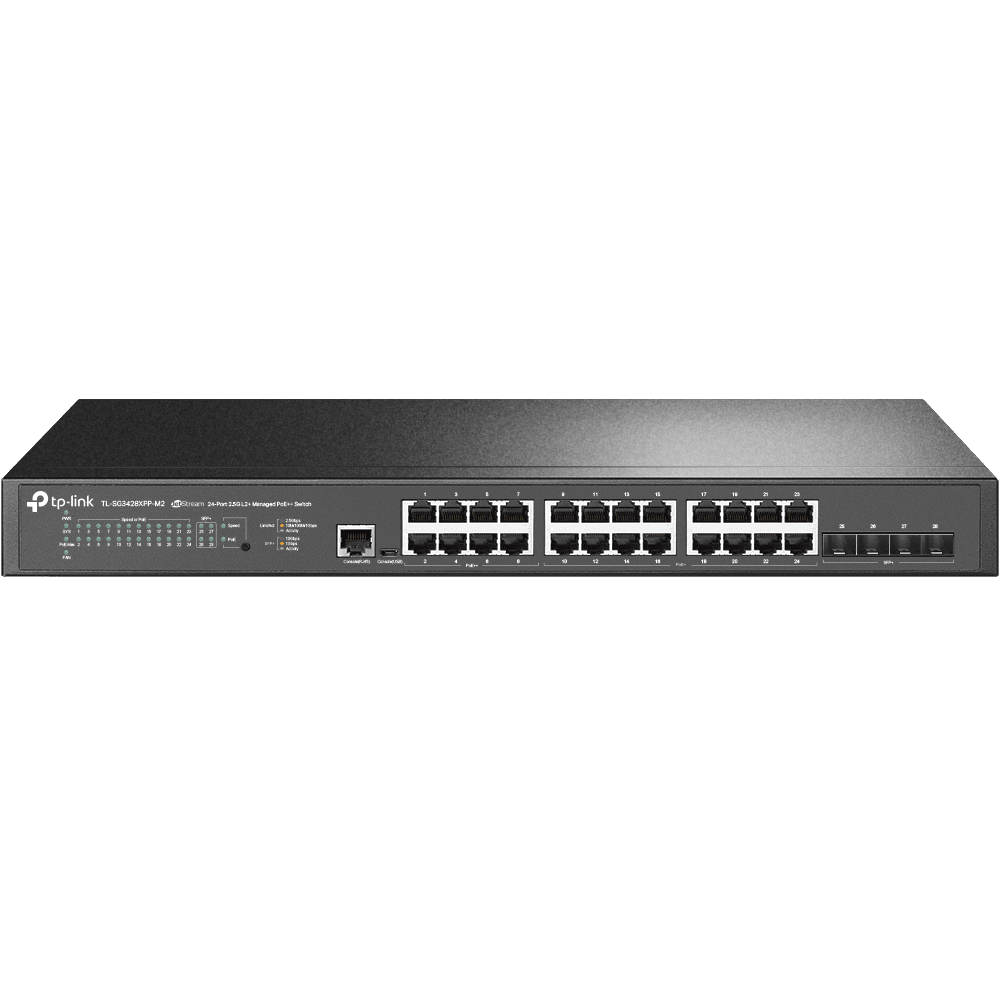

"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24× 2.5G

TP-LINK · NOD-TL-SG3428XPP-M2

"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24× 2.5G

Name: "JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24× 2.5G
Brand: TP-LINK
SKU: NOD-TL-SG3428XPP-M2
Price: 5735 RON
Availability: BackOrder

"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24× 2.5G RJ45 Ports (8× 2.5G PoE++ Ports & 16× 2.5G PoE+ Ports), 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 500 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"

4.740 lei

prețuri fără TVA · 5.735 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.4.740 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

"JetStream™ 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24× 2.5G

SKU: NOD-TL-SG3428XPP-M2

10G support: Yes
2.5G Ethernet (copper) ports quantity: 24
AC input voltage: 100 - 240 V
Access Control List (ACL): Yes
ARP inspection: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

4.740 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SG3428XPP-M2

CategorieNetworking

10G supportYes

2.5G Ethernet (copper) ports quantity24

AC input voltage100 - 240 V

Access Control List (ACL)Yes

ARP inspectionYes

AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication

Authentication typeAAA, IEEE 802.1x, RADIUS, TACACS+

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)

BPDU filtering/protectionYes

Broadcast storm controlYes

Cables includedAC

Cloud-managedYes

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Configuring Location Settings (CLI)Yes

Console portRJ-45/micro-USB

Depth330 mm

DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s

Flash memory32 MB

Flow control supportYes

Form factor1U

Forwarding rate148.8 Mpps

Full duplexYes

GARP VLAN Registration Protocol (GVRP)Yes

Half duplexYes

Head-of-line (HOL) blockingYes

Heat dissipation2153.45 BTU/h

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

Internal memory256 MB

IP-MAC-Port bindingYes

IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert

IPv4 routes48

IPv6 routes48

Jumbo frames9000

Jumbo frames supportYes

LAN-Port-TypeGigabit

LAN-Ports24

LayerLayer-2

LED indicatorsYes

Link aggregationYes

Loop protectionYes

MAC address table32000 entries

ManagementDa

Management protocolsSNMP v1, v2c, v3

Memory typeDRAM

MIB supportRFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925

Montare in RackDa

Multicast Listener Discovery (MLD) snoopingMLD v1/v2

Multicast supportYes

Number of fans3 fan(s)

Number of IP interfaces32

Number of queues8

Number of static routes48

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 40 °C

Packet buffer memory16 MB

Password protectionYes

PoEDa

Port mirroringYes

Porturi RJ 4524-28

Porturi SFP1-2

Power consumption (max)629.1 W

Power over Ethernet (PoE)Yes

Power over Ethernet 4PPoE (PoE++) ports quantity8

Power over Ethernet plus (PoE+) ports quantity16

Power sourceAC/PoE

Power supply includedYes

Quality of Service (QoS) supportYes

Queue scheduling algorithmsSP, WRR+SP, Weighted Round Robin (WRR)

Quick start guideYes

Rack mount kitYes

Rack mountingYes

RackableYes

Rate limitingYes

Redundant fans supportYes

Redundant power supply (RPS) supportYes

Redundant-PSUYes

Security algorithmsHTTPS, SSH, SSH-2, SSL/TLS

SFP module slots quantity4

SFP+ module slots quantity4

Spanning tree protocolYes

SSH/SSL supportYes

StackableNo

Static port securityYes

Static routeYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Sustainability complianceYes

Switch layerL2+

Switch typeManaged

Switching capacity200 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget500 W

Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN

Viteza transfer2.5G

VLAN supportYes

Web-based managementYes

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SG3428XPP-M2
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
10G support	Yes
2.5G Ethernet (copper) ports quantity	24
AC input voltage	100 - 240 V
Access Control List (ACL)	Yes
ARP inspection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, IEEE 802.1x, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Cables included	AC
Cloud-managed	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/micro-USB
Depth	330 mm
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Flash memory	32 MB
Flow control support	Yes
Form factor	1U
Forwarding rate	148.8 Mpps
Full duplex	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Half duplex	Yes
Head-of-line (HOL) blocking	Yes
Heat dissipation	2153.45 BTU/h
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Internal memory	256 MB
IP-MAC-Port binding	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
IPv4 routes	48
IPv6 routes	48
Jumbo frames	9000
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LAN-Ports	24
Layer	Layer-2
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address table	32000 entries
Management	Da
Management protocols	SNMP v1, v2c, v3
Memory type	DRAM
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Montare in Rack	Da
Multicast Listener Discovery (MLD) snooping	MLD v1/v2
Multicast support	Yes
Number of fans	3 fan(s)
Number of IP interfaces	32
Number of queues	8
Number of static routes	48
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	16 MB
Password protection	Yes
PoE	Da
Port mirroring	Yes
Porturi RJ 45	24-28
Porturi SFP	1-2
Power consumption (max)	629.1 W
Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	16
Power source	AC/PoE
Power supply included	Yes
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide	Yes
Rack mount kit	Yes
Rack mounting	Yes
Rackable	Yes
Rate limiting	Yes
Redundant fans support	Yes
Redundant power supply (RPS) support	Yes
Redundant-PSU	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
SFP module slots quantity	4
SFP+ module slots quantity	4
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	No
Static port security	Yes
Static route	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Sustainability compliance	Yes
Switch layer	L2+
Switch type	Managed
Switching capacity	200 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	500 W
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
Viteza transfer	2.5G
VLAN support	Yes
Web-based management	Yes

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: Yes2.5G Ethernet (copper) ports quantity: 24AC input voltage: 100 - 240 VAccess Control List (ACL): YesARP inspection: YesAuthentication: Guest VLAN, MAC-based authentication, Port-based authentication
