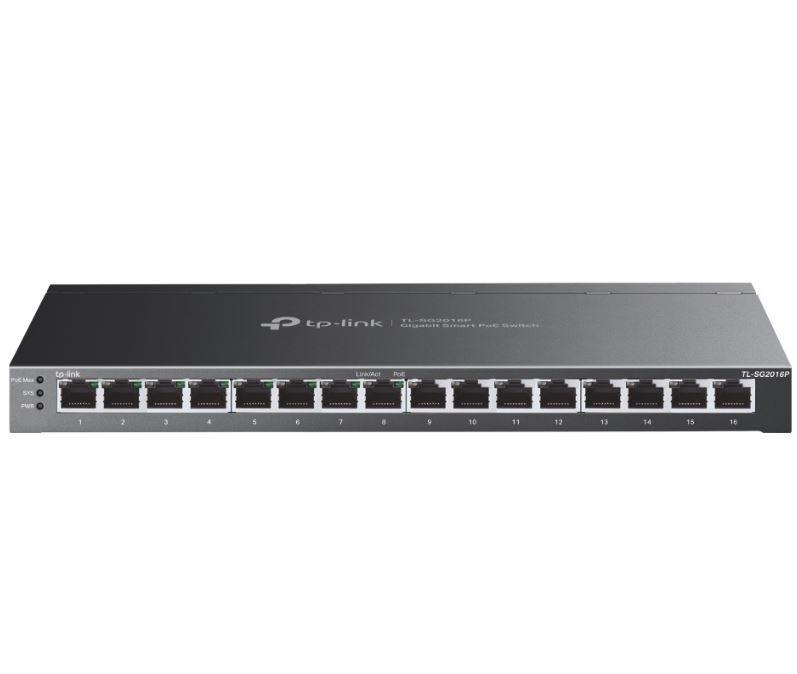

TP-LINK · NOD-TL-SG2016P

"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at

Name: "JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at
Brand: TP-LINK
SKU: NOD-TL-SG2016P
Price: 1234 RON
Availability: LimitedAvailability

"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at, 120 W PoE Power, Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6"

1.020 lei

prețuri fără TVA · 1.234 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.020 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at

SKU: NOD-TL-SG2016P

10G support: No
Access Control List (ACL): Yes
ARP inspection: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.020 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SG2016P

CategorieNetworking

10G supportNo

Access Control List (ACL)Yes

ARP inspectionYes

AuthenticationGuest VLAN, MAC-based authentication, Port-based authentication

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity16

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

BPDU filtering/protectionYes

Broadcast storm controlYes

Cables includedAC

CertificationCE, FCC, RoHS

Cloud-managedYes

Configuring Location Settings (CLI)Yes

Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T

DC input voltage53.5 V

Depth111.7 mm

DHCP featuresDHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Ethernet LAN data rates10,100,1000 Mbit/s

FanlessYes

Firmware upgradeableYes

Flow control supportYes

Forwarding rate23.81 Mpps

GARP VLAN Registration Protocol (GVRP)Yes

Heat dissipation499.98 BTU/h

Height25.4 mm

IGMP snoopingYes

Installed SFP modules quantity0

Installed SFP+ modules quantity0

IP-MAC-Port bindingYes

IPv4 & IPv6 featuresDual stack IPv4/IPv6

Jumbo frames9000

Jumbo frames supportYes

LAN-Port-TypeGigabit

LAN-Ports16

LayerLayer-2

LED indicatorsPoE, Power, System

Link aggregationYes

MAC address entriesDynamic MAC address entries, Static MAC address entries

MAC address filteringYes

MAC address table8000 entries

ManagementDa

MIB supportRFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Montare in RackNu

Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2

Multicast supportYes

Number of queues8

Number of VLANs4000

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 40 °C

Packet buffer memory4.1 MB

PoEDa

Port mirroringYes

Porturi RJ 4511-18

Power connectorDC-in jack

Power consumption (max)146.5 W

Power over Ethernet (PoE)Yes

Power over Ethernet plus (PoE+) ports quantity8

Power sourceDC/PoE

Quality of Service (QoS) supportYes

Queue scheduling algorithmsSP, Weighted Round Robin (WRR)

Rack mountingYes

RackableNo

Rate limitingYes

Redundant-PSUNo

Security algorithmsEAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS

Spanning tree protocolYes

SSH/SSL supportYes

StackableNo

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Supported network protocolsICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2

Switch layerL2/L2+

Switch typeManaged

Switching capacity32 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget120 W

Virtual LAN featuresMulticast VLAN, Tagged VLAN, Voice VLAN

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Width286 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SG2016P
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
10G support	No
Access Control List (ACL)	Yes
ARP inspection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Cables included	AC
Certification	CE, FCC, RoHS
Cloud-managed	Yes
Configuring Location Settings (CLI)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
DC input voltage	53.5 V
Depth	111.7 mm
DHCP features	DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates	10,100,1000 Mbit/s
Fanless	Yes
Firmware upgradeable	Yes
Flow control support	Yes
Forwarding rate	23.81 Mpps
GARP VLAN Registration Protocol (GVRP)	Yes
Heat dissipation	499.98 BTU/h
Height	25.4 mm
IGMP snooping	Yes
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
IP-MAC-Port binding	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Jumbo frames	9000
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LAN-Ports	16
Layer	Layer-2
LED indicators	PoE, Power, System
Link aggregation	Yes
MAC address entries	Dynamic MAC address entries, Static MAC address entries
MAC address filtering	Yes
MAC address table	8000 entries
Management	Da
MIB support	RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Montare in Rack	Nu
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Multicast support	Yes
Number of queues	8
Number of VLANs	4000
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	4.1 MB
PoE	Da
Port mirroring	Yes
Porturi RJ 45	11-18
Power connector	DC-in jack
Power consumption (max)	146.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power source	DC/PoE
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Rack mounting	Yes
Rackable	No
Rate limiting	Yes
Redundant-PSU	No
Security algorithms	EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	No
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Supported network protocols	ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Switch layer	L2/L2+
Switch type	Managed
Switching capacity	32 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	120 W
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Width	286 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

10G support: NoAccess Control List (ACL): YesARP inspection: YesAuthentication: Guest VLAN, MAC-based authentication, Port-based authenticationAuto MDI/MDI-X: YesAuto-negotiation: Yes
