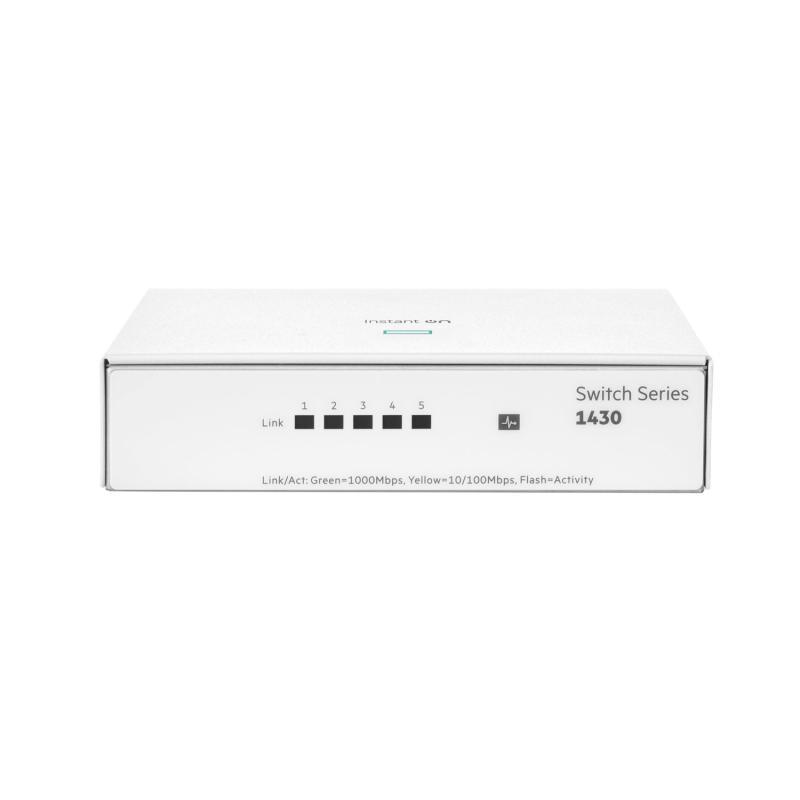

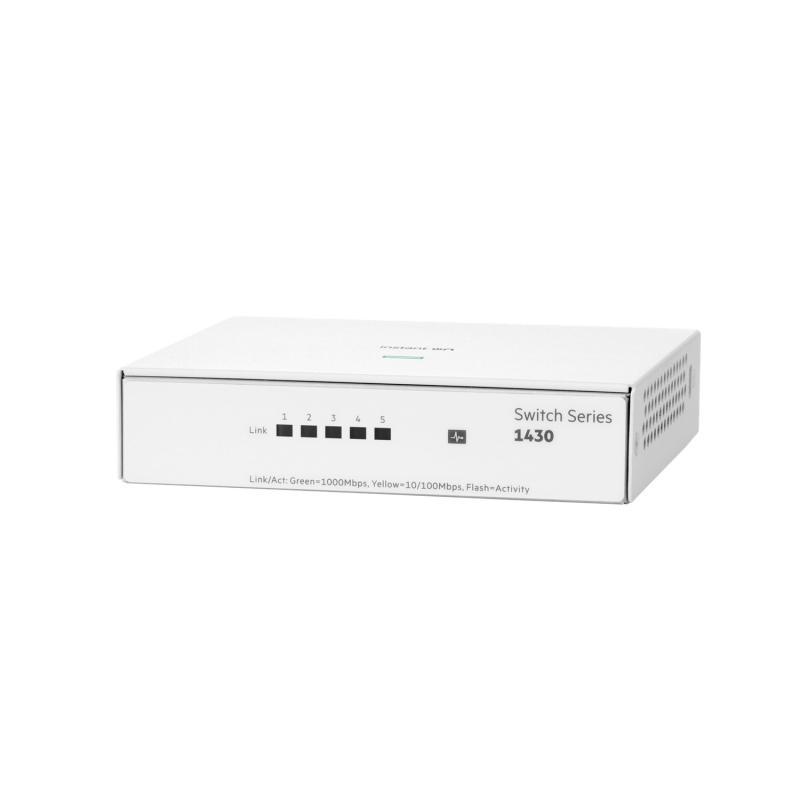

HPE Networking Instant On Switch 5p Gigabit 1430

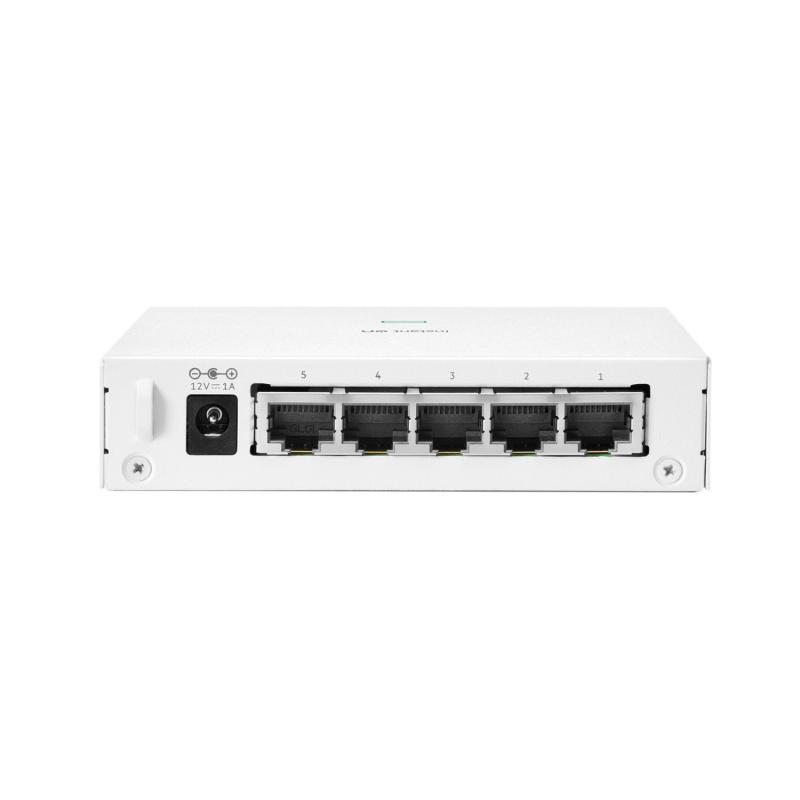

• <h4>Lifecycle</h4><ul><li><b>Obsolete Date</b> 30-04-2026</li></ul><h4>Specifications</h4><ul><li><b>Shipping dimensions</b> 9.3 x 11.6 x 2.6 cm</li><li><b>Management features</b> Unmanaged</li><li><b>Input voltage</b> 100-240VAC</li><li><b>Warranty</b> Limited lifetime warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty duration. Community support is available for the life of the product.</li><li><b>Throughput</b> 7.44 Mpps</li><li><b>Shipping dimensions</b> 3.66 x 4.57 x 1.02 in</li><li><b>Ports</b> 5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only</li><li><b>Power consumption</b> Maximum: 12W Idle: 1W</li><li><b>Shipping weight</b> 0.27 kg</li><li><b>Memory and processor</b> 2Kb EEPROM; Packet buffer size: 1.0 Mb</li><li><b>Switching capacity</b> 10 Gbps</li><li><b>Shipping weight</b> 0.60 lb</li><li><b>Power supply</b> External Power Adapter</li><li><b>Operating temperature</b> 0°C to 40°C, 32°F to 104°F</li></ul><h4>Quickspecs</h4><ul><li>QuickSpecs (PDF)</li><li>QuickSpecs</li><li>QuickSpecs (HTML)</li><li>QuickSpecs</li></ul><h4>Overview</h4><p>The HPE Networking Instant On Switch 1430 is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.</p><h4>What's new</h4><ul><li>Up to 124W of PoE to power APs, IP Phones, and other IoT devices.</li><li>Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.</li><li>No configuration or management needed.</li><li>Plug-and-play with fully automated functions and zero ongoing maintenance.</li><li>Fan-less design for silent deployment in office spaces.</li></ul><h4>Features</h4><p>The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.</p><p>No configuration beyond installation of optional 1 GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.</p><b>Plug-and-Play Operation</b><b>Unmanaged Ethernet Connectivity for Small Businesses</b><p>The HPE Networking Instant On Switch 1430 is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one 5-port, two 8-port, two 16-port, one 24-port, and one 26-port model with 2 SFP uplinks models.</p><p>Two dedicated 1 G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.</p><p>Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).</p><p>Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.</p><b>Energy Efficiency and Traffic Optimization</b><p>With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.</p><p>All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.</p><p>Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.</p><p>The HPE Networking Instant On Switch 1430 series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.</p><p>Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.</p><p>Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.</p><p>The HPE Networking Instant On Switch 1430 models are easy to use with zero configuration and no required ongoing administration.</p><h4>Compatible products</h4><ul><li>HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver</li><li>Aruba IOn 1G SFP LC SX 500m MMF XCVR</li></ul><h4>Documents</h4><ul><li>HPE Networking Instant On Switch 1430 QuickSpecs</li></ul>
