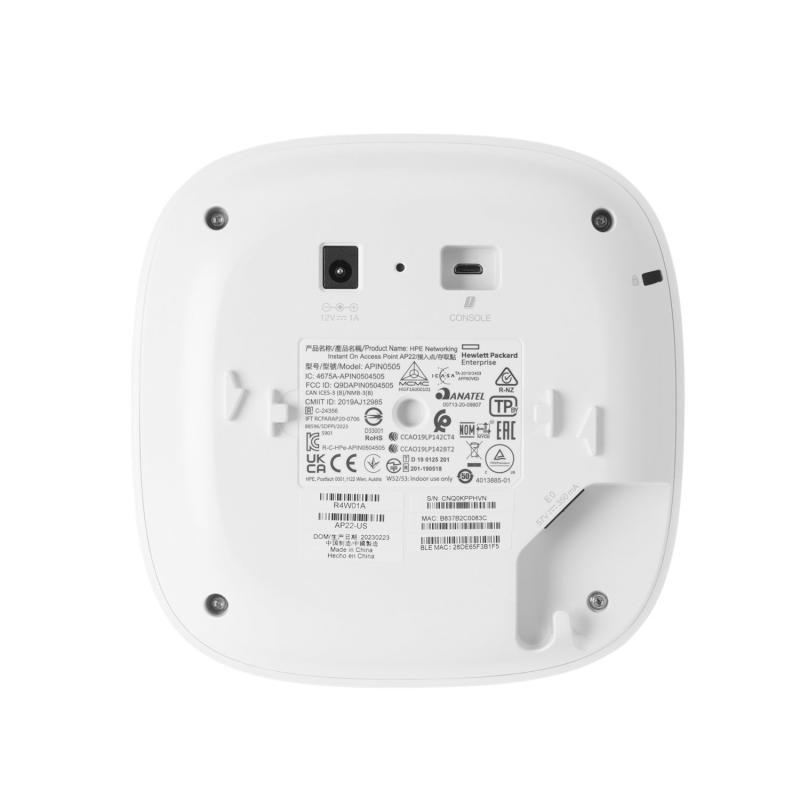

HPE Networking Instant On Indoor Access Point 2x2 Wi-Fi 6 (RW) AP22

• <h4>Lifecycle</h4><ul><li><b>Obsolete Date</b> 31-12-2099</li><li><b>End of support date</b> 31-12-2104</li></ul><h4>Specifications</h4><ul><li><b>Mounting</b> Ceiling/Wall-mount clip</li><li><b>Radio coverage</b> Dual-radio 802.11ax 2x2 5 GHz/2.4 GHz MIMO</li><li><b>Input voltage</b> Power over Ethernet (PoE): 802.3af (class 3) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU</li><li><b>Power consumption</b> Max power consumption: 10.1W (PoE), 8.8W (DC)</li><li><b>Warranty</b> Instant On 2-year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.</li><li><b>Connectivity, standard</b> Ultra-fast 802.11ax</li><li><b>Ports</b> 1 GbE BaseT Uplink DC Power Connector Bluetooth Low Energy (BLE) LED status Indicators Reset/LED control button Kensington security slot.</li><li><b>Certifications</b> Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3</li><li><b>Wi-Fi antenna</b> Antennas: Down-tilt Dual Omni-directional 2x2 MIMO Antenna Gain: 4.9 dBi in 2.4 GHz 5.7 dBi in. 5 GHz Maximum transmit power: 5 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +20 dBm (+17 dBm per chain, 3 dB MIMO gain)</li></ul><h4>Quickspecs</h4><ul><li>QuickSpecs</li><li>QuickSpecs (HTML)</li><li>QuickSpecs</li><li>QuickSpecs (PDF)</li></ul><h4>Overview</h4><p>HPE Networking Instant On Access Points AP22 delivers affordable, business-grade 802.11ax Wi-Fi for high performance, high density small business environments. Business-grade capabilities are designed to meet the growing number of mobile, IoT, and security needs. The compact form factor of the AP22 delivers multi-user capabilities and a maximum aggregate peak data rate of 1.2 Gbps for high-definition video streaming and cloud application requirements. Everything from mounting hardware to easy-to-use web and mobile app management tools, and business-grade software features are included; no extra charge or need for external controllers.</p><h4>What's new</h4><ul><li>Wi-Fi 6 for high performance and efficiency</li><li>Supports up to 75 associated clients</li><li>Support for WPA2/WPA3 protected employee and guest login with Enhanced Open for per user guest access</li></ul><h4>Features</h4><p>HPE Networking Instant On Access Points AP22 includes an easy-to-use web GUI and templates; access points are simple to deploy and are up and running in minutes.</p><p>HPE Networking Instant On Access Points AP22 supports the Wi-Fi 6 standard, including features such as orthogonal frequency-division multiple access (OFDMA) and bi-directional MIMO (MIMO).</p><p>HPE Networking Instant On Access Points AP22 support features Target Wake Time (TWT) that help establish a schedule when clients need to communicate with an AP.</p><p>Gain insights into customers with third party captive portal integration with partners like Skyfii, Purple, Aislelabs, and Wavespot.</p><p>HPE Networking Instant On Access Points AP22 are ideal for single or distributed small business sites such as graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.</p><p>Simple to build landing page allows customization of your guest access page with your own brand and logo.</p><p>Conveniently expands your network to hard-to-wire areas – nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.</p><p>HPE Networking Instant On Access Points AP22 have built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.</p><b>Reduce High Cost of Cabling with Full-scale Wireless Mesh Coverage</b><b>Incredible Efficiency with Wi-Fi 6</b><b>Creates a Custom Guest Access Experience</b><p>Block undesired applications and websites with greater traffic visibility without the need for any external gateway or additional costs; the control is at your fingertips.</p><p>Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.</p><p>HPE Networking Instant On Access Points AP22 comes with integrated router, gateway, and firewall functionality.</p><p>HPE Networking Instant On Access Points AP22 comes with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.</p><b>Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open</b><h4>Compatible products</h4><ul><li>HPE Networking Instant On 12V/18W Power Adaptor US EU</li><li>HPE Networking Instant On 802.3af 15.4W POE Midspan Injector</li><li>HPE Aruba Networking AP-MNT-W4 White Low Profile Basic AP Flat Surface Mount Kit</li><li>ARUBA INSTANT ON 12V POWER ADAPTER RW</li><li>HPE Aruba Networking Foundational Care 3Y NBD Exch Instant ON Access Point SVC</li><li>HPE Networking Instant On AP22 Flush Mount Sleeve</li></ul><h4>Documents</h4><ul><li>Interconnected retail on a massive scale – The Home Depot</li><li>Interconnected retail on a massive scale – The Home Depot</li><li>HPE Networking Instant On Wi-Fi 6 Access Points QuickSpecs</li></ul>
