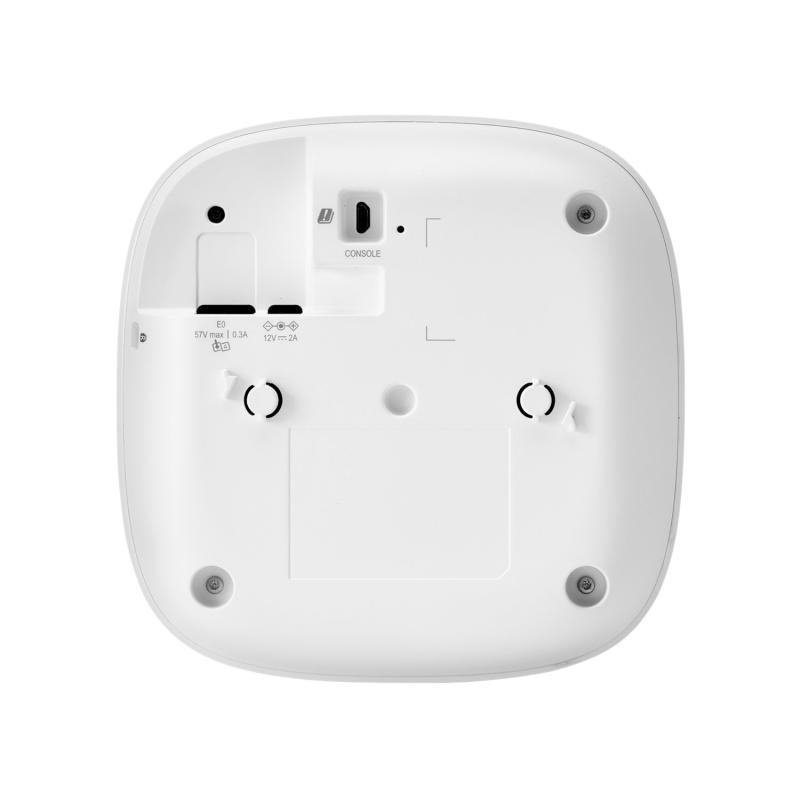

HPE Networking Instant On Access Point Bundle with PSU Dual Radio Tri Band 2x2 Wi-Fi 6E (EU) AP32

• <h4>Lifecycle</h4><ul><li><b>Obsolete Date</b> 31-12-2099</li></ul><h4>Specifications</h4><ul><li><b>Mounting</b> Ceiling/Wall-mount clip</li><li><b>Input voltage</b> PoE: 802.3at (class 4) DC power (12V) Note: Power sources are sold separately unless you purchase the bundle SKU</li><li><b>Power consumption</b> Max power consumption: 12.9W (PoE) 11.0W (DC)</li><li><b>Certifications</b> Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3</li><li><b>Warranty</b> Instant On 2-year warranty includes 24X7 phone support for the first 90 days and chat support for the entire warranty period. Community support is available for the life of the product.</li><li><b>Connectivity, standard</b> Ultra-fast 802.11ax</li><li><b>Wi-Fi antenna</b> Antennas: Dual omni-directional 2x2 MIMO Antenna Gain: 2.8 dBi in 2.4 GHz 4.5 dBi in 5 GHz and 6 GHz Maximum transmit power: 5 GHz and 6 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain) 2.4 GHz band: +21 dBm (+18 dBm per chain, 3 dB MIMO gain)</li><li><b>Radio coverage</b> Dual-Radio, tri-band 802.11ax 2x2 6 GHz/5 GHz/2.4 GHz* MIMO Note: * Only two active bands are selectable.</li><li><b>Ports</b> 1x 2.5 GbE Base-T uplink port DC power connector LED status indicators Reset/LED control button Kensington security slot</li></ul><h4>Quickspecs</h4><ul><li>QuickSpecs</li><li>QuickSpecs</li><li>QuickSpecs (PDF)</li><li>QuickSpecs (HTML)</li></ul><h4>Overview</h4><p>The HPE Networking Instant On Access Point AP32 is a Wi-Fi CERTIFIED 6E™ wireless access point built to bring future-ready connectivity to small and medium businesses. The AP32 supports the new 6E wireless protocol that broadcasts on the 6 GHz band, which is reserved for Wi-Fi 6E-enabled devices, and offers higher capacity and capability for the devices. This higher capacity needs a strong backhaul, so the AP32 comes with a 2.5 GbE uplink port and PoE to make connectivity and power easy. With a 2x2 antenna array supporting 2 spatial streams, the AP32 provides robust connectivity for up to 75 devices and 2.8 Gbps of wireless throughput. In the HPE Networking Instant On mobile app, choose to broadcast the 5 GHz and 6 GHz bands to achieve faster throughput speed, or switch to 2.4 GHz and 6 GHz for impressive range for modern laptops or smartphones.</p><h4>What's new</h4><ul><li>The modern minimal design blends the HPE Networking Instant On AP32 into any environment. Enable quiet mode to disable lights for less distraction.</li><li>Wi-Fi CERTIFIED 6E™ support for up to 75 user devices.</li><li>2.5 Gigabit Ethernet uplink port that relieves bottlenecks brought by bandwidth-intense applications.</li><li>6 GHz band dedicated to Wi-Fi 6E-enabled devices with up to 2.4 Gbps wireless throughput.</li><li>Keep your network protected with the HPE Networking Instant On Instant On mobile app or web portal, cloud-connected so you can manage or troubleshoot problems anywhere in the world.</li></ul><h4>Features</h4><p>Multiple Input, Multiple Output (MIMO): Allows the access point to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) simultaneously.</p><p>HPE Networking Instant On AP32 access points come with top-level security features, always on, out of the box, such as WPA2/WPA3 and Enhanced Open support for protecting your wireless network.</p><p>Use the HPE Networking Instant On mobile app or web portal to see where clients on your network are going with the application's insight.</p><p>Block certain types of traffic in the mobile app or web portal to keep your network safe and employees productive.</p><p>This Tri-band, dual radio access point offers different broadcasting configurations: 6 GHz and 5 GHz for impressive throughput, 2.4 GHz and 6 GHz to support IoT and the most recent wireless devices, and 2.4 GHz and 5 GHz for businesses not yet ready to use the latest wireless standards.</p><b>Wi-Fi 6E 6 GHz Band to Fast-Track your Devices</b><p>HPE Networking Instant On Access Point AP32 is ready to elevate your growing network needs with Wi-Fi 6E.</p><p>Easily manage and update the HPE Networking Instant On AP32 band setting in the HPE Networking Instant On mobile app from anywhere.</p><b>802.11ax Wi-Fi Certified 6E</b><p>HPE Networking Instant On AP32 access points feature Orthogonal Frequency-Division Multiple Access (OFDMA), allowing multiple Wi-Fi 6 capable clients to be handled simultaneously per channel. This improves efficiency by boosting overall capacity, reducing latency, and improving end-user experience.</p><p>Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.</p><b>Safeguard your Network with WPA-Enterprise Features</b><h4>Compatible products</h4><ul><li>HPE Aruba Networking Foundational Care 3Y NBD Exch Instant ON Access Point SVC</li></ul><h4>Documents</h4><ul><li>Interconnected retail on a massive scale – The Home Depot</li><li>Interconnected retail on a massive scale – The Home Depot</li><li>HPE Networking Instant On Wi-Fi 6 Access Points QuickSpecs</li></ul>
