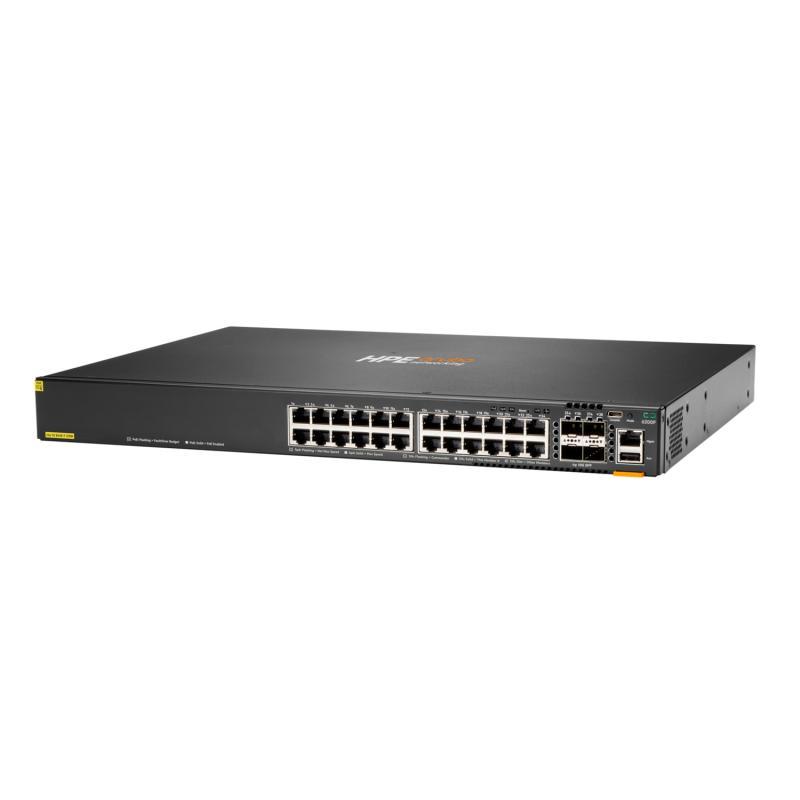

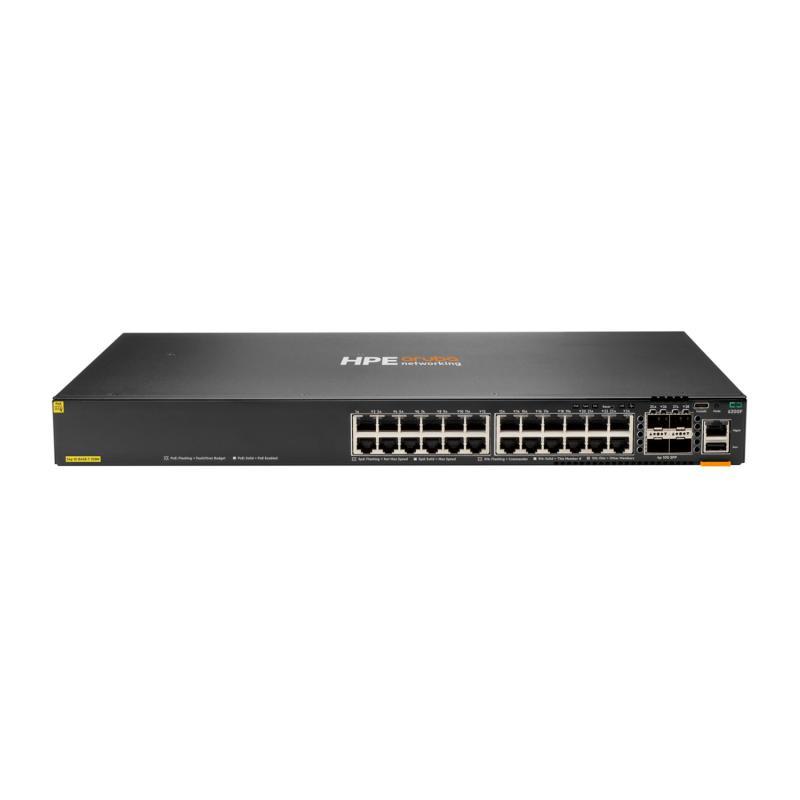

HPE Aruba Networking CX 6200F 24G Class4 PoE 4SFP+ 370W Switch

• <h4>Lifecycle</h4><ul><li><b>Obsolete Date</b> 30-06-2027</li><li><b>End of support date</b> 31-12-2104</li></ul><h4>Specifications</h4><ul><li><b>Stacking capabilities</b> 8-members</li><li><b>Memory and processor</b> CPU: Quad-core Arm® Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC</li><li><b>Power consumption</b> 65W at 230 VAC</li><li><b>PoE capability</b> 370W</li><li><b>Input voltage</b> 100V–120V/200V–240V</li><li><b>Warranty</b> Limited lifetime warranty. See warranty details.</li><li><b>Throughput</b> Up to 95.2 Mpps</li><li><b>Latency</b> 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec</li><li><b>Ports</b> 24 x 10/100/1000BASE-T Class 4 PoE ports 4 x 1/10G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x Bluetooth adapter to be used with CX Mobile app</li><li><b>Power supply</b> Fixed power supply (500W) Up to 370W of Class 4 PoE Power</li><li><b>Switching capacity</b> 128 Gbps</li><li><b>Management features</b> Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software</li><li><b>Fans</b> Fixed fans</li><li><b>Operating temperature</b> 32°F to 113°F (0°C to 45°C) up to 5000 ft; derate 1°C for every 1000 ft from 5000 ft to 10,000 ft.</li></ul><h4>Quickspecs</h4><ul><li>QuickSpecs (PDF)</li><li>QuickSpecs (HTML)</li><li>QuickSpecs</li><li>QuickSpecs</li></ul><h4>Overview</h4><p>The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.</p><h4>What's new</h4><ul><li>Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency</li><li>Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security</li><li>Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)</li><li>Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing</li><li>Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app</li><li>HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification</li></ul><h4>Features</h4><p>Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).</p><p>The HPE Aruba Networking CX Mobile App simplifies connecting and stacking this switch series with easy one-touch deployment. Import switch information into HPE Aruba Networking Switch Multi-Edit Software for simplified configuration management and to continual conformance validation.</p><p>Switch-to-switch tunnels with Virtual Extensible Local-Area Networks (VXLAN) for low-latency and high performance use cases.</p><p>Reduces time-consuming and error-prone task of adds, moves and changes.</p><p>The HPE Aruba Networking CX 6200 Switch Series supports dynamic segmentation that automatically applies and enforces common and consistent user, device, and application-aware policies on HPE Aruba Networking wired and wireless networks.</p><p>Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for IT and end-users.</p><b>Smarter segmentation</b><p>Ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.</p><b>AI-ready performance and power</b><p>The HPE Aruba Networking CX 6200 Switch Series provides Layer 2/3 access switching with high performance, security, and ease of use for latency-sensitive, AI resources at the enterprise edge, SMB, and branch office networks.</p><p>A fully distributed architecture with Gen7 ASICs delivers very low latency, increased packet buffering, and efficient power consumption. Switching and routing are wire-speed to meet the demands of bandwidth-intensive workloads.</p><p>HPE Aruba Networking Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.</p><p>Deploy wireless access points and Internet of Things (IoT) devices with CX 6200 models that support up to 1440W IEEE 802.3at Class 6 PoE for up to 60W per port.</p><p>Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.</p><p>HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.</p><p>The HPE Aruba Networking CX 6200 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use GUI, or industry-standard CLI.</p><b>Simplified configuration and management</b><p>The time series database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.</p><p>Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security-related issues easily through the use of Python® agents and REST APIs.</p><p>The HPE Aruba Networking CX 6200 Switch Series delivers visibility and built-in analytics for real-time monitoring and accelerated troubleshooting. The HPE Aruba Networking CX Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.</p><b>Automation and analytics</b><p>Unified management across wired, wireless, and WAN using HPE Aruba Networking Central.</p><p>HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes, and helps ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.</p><h4>Compatible products</h4><ul><li>HPE ANW 1G SFP RJ45 100m XCVR</li><li>ARUBA NETEDIT SINGLE NODE 1YR SUB E-STU</li><li>HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver</li><li>HPE Aruba Networking X371 12VDC 250W 100-240VAC Power Supply</li><li>HPE Aruba Networking 1G SFP LC LH 70km SMF Transceiver</li><li>HPE Aruba Networking Central Switch Class-2 Foundation 3 year Subscription E-STU</li><li>ARUBA CENTRAL 62/29XX F 5Y E-STU</li><li>HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver</li><li>ARUBA NETEDIT SINGLE NODE 3YR SUBSCRIPTI</li><li>HPE 2.5M C15 to C14 Pwr Cord</li><li>HPE Aruba Networking 100M SFP LC FX 2km MMF Transceiver</li><li>HPE Aruba Networking 10G SFP+ to SFP+ 1m Direct Attach Copper Cable</li><li>HPE Aruba Networking USB-A reversible to USB-C PC-to-Switch 3m Cable</li><li>HPE Aruba Networking 2930F 12G PoE+ 2G/2SFP+ Switch</li><li>HPE Aruba Networking 2930F 8G PoE+ 2SFP+ Switch</li><li>HPE Aruba Networking X372 54VDC 680W 100-240VAC Power Supply</li><li>HPE Aruba Networking 10G SFP+ LC LRM 220m OM2 MMF Transceiver</li><li>HPE ARUBA NETWORKING BT ADAPTER</li><li>HPE Aruba Networking X414 1U Universal 4-post Rack Mount Kit</li><li>ARUBA USB-C TO USB-C PC-TO-SWITCH CABLE</li><li>HPE Aruba Networking 10G SFP+ LC ER 40km SMF Transceiver</li><li>HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver</li><li>HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable</li><li>HPE Aruba Networking X751 Front to Back Fan Tray</li><li>HPE Aruba Networking X372 54VDC 1050W 110-240VAC Power Supply</li><li>HPE Aruba Networking Central Switch Class-2 Foundation 1 year Subscription E-STU</li><li>ARUBA X2C2 RJ45 TO DB9 CONSOLE CABLE</li><li>HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver</li></ul><h4>Documents</h4><ul><li>HPE Aruba Networking CX Switching and VMware NSX Solution Overview</li></ul>
