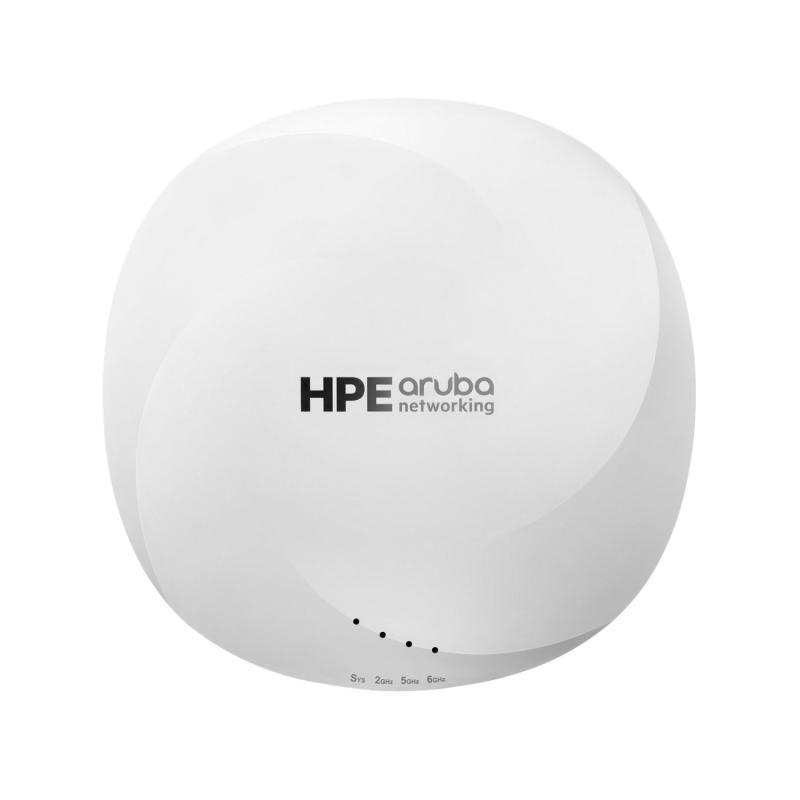

HPE Aruba Networking AP-615-RW Dual Radio Tri Band 2x2 Wi-Fi 6E Int Antennas Campus AP

• <h4>Lifecycle</h4><ul><li><b>Obsolete Date</b> 31-12-2099</li></ul><h4>Specifications</h4><ul><li><b>Wi-Fi antenna</b> AP-615: Integrated down-tilt omni-directional antennas for 2x2 MIMO. Built-in antennas are optimized for horizontal ceiling-mounted orientation of the access point. The down-tilt angle gain is roughly 30° to 40°.</li><li><b>Warranty</b> Limited lifetime warranty. See the warranty duration guide.</li><li><b>Radio configuration options</b> 2.4 GHz and 5 GHz or 2.4 GHz and 6 GHz or 5 GHz and 6 GHz</li><li><b>AP management</b> On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service</li><li><b>AP operating system support</b> HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS HPE Aruba Networking Wireless Operating System 10</li><li><b>Cellular support</b> USB LTE modem (sold separately)</li><li><b>Deployment</b> Indoor</li><li><b>Integrated sensor</b> No</li><li><b>IoT support</b> Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio, USB 2.0 type A</li><li><b>Location services</b> 802.11 FTM support; GNSS receiver</li><li><b>Ultra tri-band (UTB) filtering</b> No</li><li><b>Wi-Fi generation</b> Wi-Fi 6E (802.11ax with 6 GHz)</li><li><b>Wi-Fi radios</b> 2x2:2</li><li><b>Wired network interface</b> 1 x 2.5 Gbps</li><li><b>Max bandwidths and peak data rate per band</b> 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), 3.6 Gbps maximum peak data rate</li><li><b>MACsec support</b> No</li><li><b>Certifications</b> UL2043 plenum rating Wi‑Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Wi-Fi CERTIFIED Location™ Bluetooth SIG Ethernet Alliance (PoE, PD device, class 4)</li><li><b>Regulatory</b> FCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-1, EN60601-1-2 For more country-specific regulatory information and approvals, contact your HPE representative.</li><li><b>Ports</b> E0: Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot</li></ul><h4>Quickspecs</h4><ul><li>QuickSpecs</li><li>QuickSpecs (HTML)</li><li>QuickSpecs (PDF)</li><li>QuickSpecs</li></ul><h4>Overview</h4><p>HPE Aruba Networking 610 Series Campus Access Points are designed to take advantage of the 6 GHz band and achieve up to a combined maximum 3.6 Gbps data rate for higher throughput and faster speeds indoors. Adding support for the 6 GHz band increases capacity by up to 1200 MHz with more 80/160 MHz channels to support growing demands due to bandwidth-hungry video, growth in client and Internet of Things (IoT) devices, and expanded use of the cloud. The compact and cost-effective 610 series features dual radios that can be tuned to any two of the three spectrum bands for Wi-Fi: 2.4 GHz, 5 GHz, and 6 GHz. Full tri-band coverage is available in a multi-access point deployment. Built-in GPS receivers and fine time measurements enable the 610 series to automatically locate themselves and serve as reference points for accurate indoor location measurements. The 610 series includes a limited lifetime warranty.</p><h4>What's new</h4><ul><li>The 610 series provides up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and augmented reality/virtual reality applications</li><li>Unlock the 6 GHz band to deliver up to 1200 MHz additional capacity and up to 3.6 Gbps combined peak datarate</li><li>Built-in GPS receivers and fine time measurement allow APs to automatically locate themselves and serve as reference points for accurate indoor location measurements</li><li>Software programable, dual-radio operating modes deliver cost-effective coverage across any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz with full tri-band coverage in multi-AP deployments</li><li>Low power consumption enables unrestricted operation from an 802.3af (Class 3) PoE source [1]</li><li>It is offered as optional eco-friendly 10-pack</li></ul><h4>Features</h4><p>The access point supports Open Locate, an emerging standard that allows APs to share their location over the air and through cloud-based APIs.</p><b>More Capacity and Wider Channels with Wi-Fi 6E</b><p>The 610 series is designed for indoor environments</p><p>HPE Aruba Networking 610 Series Campus Access Points with dual radios deliver up to a maximum combined 3.6 Gbps data rate for higher throughput and faster speeds.</p><b>Cost-effective and Compact 6 GHz Coverage</b><p>With up to seven 160 MHz channels, the APs increase performance for low-latency, bandwidth-hungry applications.</p><p>HPE Aruba Networking 610 Series Campus Access Points equip enterprises with 6 GHz coverage providing up to 1200 MHz additional capacity at an attractive price point.</p><p>Software-programable radios can be configured to cover any two of the three Wi-Fi 6E bands: 2.4 GHz, 5 GHz, 6 GHz.</p><p>Client and RF optimization to match clients with the best available access point and reduce coverage gaps.</p><p>Zero touch provisioning (ZTP) provides ease of implementation in branch offices and remote sites, without on-site technical expertise.</p><p>It offers low power (802.3af Class 3) and compact form factor for ease of deployment.</p><b>Extends Capabilities of Wi-Fi 6 (802.11ax)</b><p>Unique AP capabilities include ClientMatch, advanced cellular coexistence (ACC), and intelligent power monitoring (IPM) to customize user experience and energy use.</p><p>HPE Aruba Networking 610 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.</p><p>Wi-Fi 6E extends support for Wi-Fi 6 features such as OFDMA, MU-MIMO, and target wait time (TWT) for better multi-user performance and improved efficiency.</p><b>Indoor Location-Aware Access Points</b><p>HPE Aruba Networking 610 Series Campus Access Points include built-in GPS receivers and fine time measurement to automatically and accurately locate themselves.</p><h4>Media</h4><b>Aruba 1-2-3: What is the future of Wi-Fi?</b><p>After nearly 20 years of being limited to the 2.4 and 5 GHz bands, Wi-Fi 6E introduces the 6 GHz band which gives us access to much more bandwidth to support a wide range of applications and devices.</p><h4>Compatible products</h4><ul><li>HPE Aruba Networking AP-POE-AFGE 1-Port GbE 802.3af 15.4W Midspan Injector</li><li>HPE Aruba Networking AP-MNT-D Campus AP Type D Solid Surface Mount Bracket Kit</li><li>HPE Aruba Networking AP-MNT-MP10-D Campus AP 10-Pack Solid Surface Mount Bracket Kit</li><li>HPE Aruba Networking AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable</li><li>HPE Aruba Networking AP-MNT-C Campus AP Type C Suspended Ceiling Rail 9/16 Profile Mnt Bracket Kit</li><li>HPE Aruba Networking AP-MNT-E Campus AP Type E Wall-Box Mount Bracket Kit</li><li>HPE Aruba Networking AP-MNT-A Campus AP Type A Suspended Ceiling Rail Flat 9/16 Mount Bracket Kit</li><li>HPE Aruba Networking AP-MNT-MP10-U</li><li>HPE Aruba Networking AP-POE-ATSR 1-Port Smart Rate 802.3at 30W Midspan Injector</li><li>HPE Aruba Networking AP-AC2-12B 12V/48W AC/DC Desktop Style Power Adapter with 2.1/5.5mm Connector</li><li>HPE ANW AP-MNT-U CAMPUS TYPE U BRKT KIT</li><li>HPE Aruba Networking AP-MNT-B Campus AP Type B Suspended Ceiling Rail Flat 15/16 Mount Bracket Kit</li><li>Aruba 3Y FC NBD Exch AP-615 Campus SVC</li><li>Aruba 3Y FC NBD Exch HWAP-615 Campus SVC</li><li>AP-MOD-SERU CONSOLE ADAPTER MODULE</li></ul><h4>Documents</h4><ul><li>HPE Aruba Networking 610 Series Campus Access Points</li><li>HPE Aruba Networking 610 Series Campus Access Points</li><li>Wi-Fi 6 vs Wi-Fi 6E Infographic</li><li>Interconnected retail on a massive scale – The Home Depot</li><li>HPE Aruba Networking 610 Series Campus Access Points QuickSpecs</li><li>Interconnected retail on a massive scale – The Home Depot</li></ul> [1] By default (with IPM disabled) the AP-615 will disable the USB port (only) when on Class 3 PoE. The IPM feature can be used to avoid this restriction. <br/>
