TP-LINK · NOD-TL-SM321A

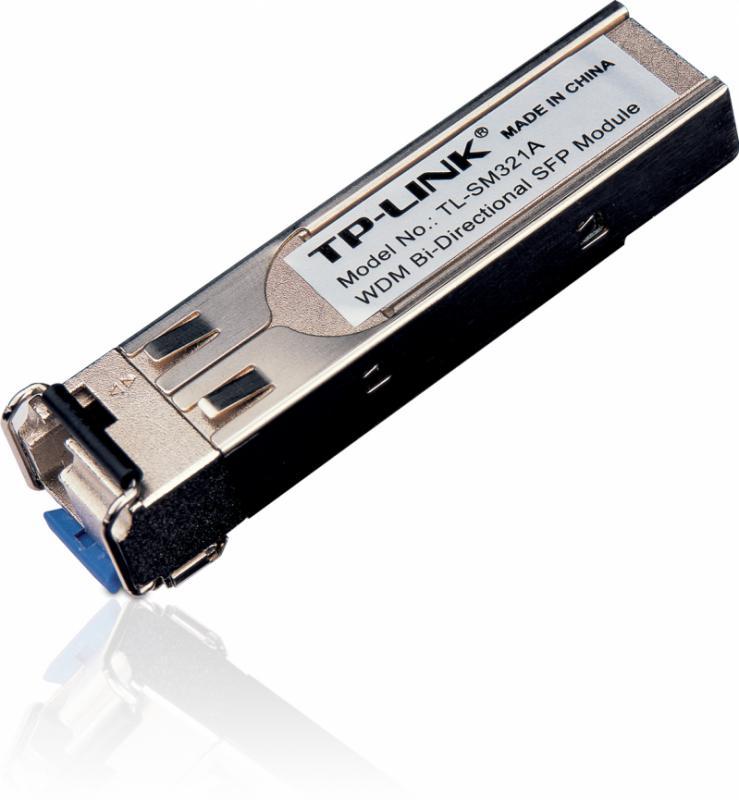

"Gigabit Single-Mode WDM Bi-Directional SFP Module SPEC: LC Connector, TX:1550nm/RX:1310nm, Single-mode, 10 km "

Name: "Gigabit Single-Mode WDM Bi-Directional SFP Module SPEC: LC Connector, TX:1550nm/RX:1310nm, Single-mode, 10 km "
Brand: TP-LINK
SKU: NOD-TL-SM321A
Price: 182 RON
Availability: BackOrder

150 lei

prețuri fără TVA · 182 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.150 lei

TP-LINK · NetworkingDoar pentru firme (B2B)

"Gigabit Single-Mode WDM Bi-Directional SFP Module SPEC: LC Connector, TX:1550nm/RX:1310nm, Single-mode, 10 km "

SKU: NOD-TL-SM321A

Certification: FCC, CE
Compliance certificates: RoHS
Data Transfer Rate: 1250 Mbit/s
Depth: 129 mm
Fiber cable diameters supported (core/cladding): 9/125 µm
Fiber ethernet cabling technology: 1000BASE

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

150 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandTP-LINK

Cod produsNOD-TL-SM321A

CategorieNetworking

CertificationFCC, CE

Compliance certificatesRoHS

Data Transfer Rate1250 Mbit/s

Depth129 mm

Fiber cable diameters supported (core/cladding)9/125 µm

Fiber ethernet cabling technology1000BASE

Fiber optic connectorLC (UPC)

Harmonized System (HS) code85369010

Height12.9 mm

Input voltage3.3 V

Interface typeSFP

Maximum data transfer rate1250 Mbit/s

Maximum transfer distance10000 m

Multi-mode fiber (MMF) supportedNo

Networking standardsIEEE 802.3z

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 70 °C

Package depth122.5 mm

Package height385 mm

Package weight60 g

Package width815 mm

Plug and PlayYes

Product colourMetallic

Rx wavelength (max)1310 nm

SFP transceiver standardBX

SFP transceiver typeFiber optic

Single-mode fiber (SMF) supportedYes

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 80 °C

Switch-CM-TypeSFP

Tx wavelength (max)1550 nm

Wavelength-division multiplexing (WDM)Yes

Width55.4 mm

Specificații

Brand	TP-LINK
Cod produs	NOD-TL-SM321A
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Certification	FCC, CE
Compliance certificates	RoHS
Data Transfer Rate	1250 Mbit/s
Depth	129 mm
Fiber cable diameters supported (core/cladding)	9/125 µm
Fiber ethernet cabling technology	1000BASE
Fiber optic connector	LC (UPC)
Harmonized System (HS) code	85369010
Height	12.9 mm
Input voltage	3.3 V
Interface type	SFP
Maximum data transfer rate	1250 Mbit/s
Maximum transfer distance	10000 m
Multi-mode fiber (MMF) supported	No
Networking standards	IEEE 802.3z
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 70 °C
Package depth	122.5 mm
Package height	385 mm
Package weight	60 g
Package width	815 mm
Plug and Play	Yes
Product colour	Metallic
Rx wavelength (max)	1310 nm
SFP transceiver standard	BX
SFP transceiver type	Fiber optic
Single-mode fiber (SMF) supported	Yes
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 80 °C
Switch-CM-Type	SFP
Tx wavelength (max)	1550 nm
Wavelength-division multiplexing (WDM)	Yes
Width	55.4 mm

Configurație

"Gigabit Single-Mode WDM Bi-Directional SFP Module SPEC: LC Connector, TX:1550nm/RX:1310nm, Single-mode, 10 km "

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

"Gigabit Single-Mode WDM Bi-Directional SFP Module SPEC: LC Connector, TX:1550nm/RX:1310nm, Single-mode, 10 km "

Certification: FCC, CECompliance certificates: RoHSData Transfer Rate: 1250 Mbit/sDepth: 129 mmFiber cable diameters supported (core/cladding): 9/125 µmFiber ethernet cabling technology: 1000BASE
