D-LINK · NOD-DGS-1210-28P/ME

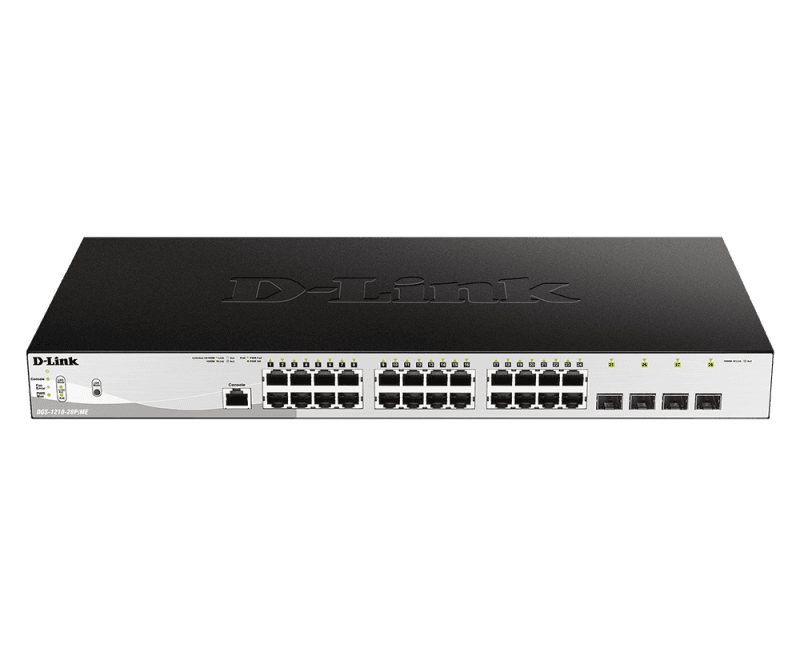

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount

Name: D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount
Brand: D-LINK
SKU: NOD-DGS-1210-28P/ME
Price: 1240 RON
Availability: InStock

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan

1.025 lei

prețuri fără TVA · 1.240 lei cu TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.1.025 lei

D-LINK · NetworkingDoar pentru firme (B2B)

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount

SKU: NOD-DGS-1210-28P/ME

AC input frequency: 50/60 Hz
Access Control List (ACL): Yes
Access Control List (ACL) ingress: 256
Access Control List (ACL) rules: 256
Active link detection: Yes
ARP inspection: Yes

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

1.025 leiprețuri fără TVA

Disponibil la furnizor · 9 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandD-LINK

Cod produsNOD-DGS-1210-28P/ME

CategorieNetworking

AC input frequency50/60 Hz

Access Control List (ACL)Yes

Access Control List (ACL) ingress256

Access Control List (ACL) rules256

Active link detectionYes

ARP inspectionYes

Authentication typeAAA, RADIUS, TACACS+

Auto MDI/MDI-XYes

Auto-negotiationYes

Basic switching RJ-45 Ethernet ports quantity24

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

BPDU filtering/protectionYes

Broadcast storm controlYes

Cable types supportedCat5, Cat5e

CertificationFCC Class A CE Class A ICES-003 VCCI Class A C-Tick BSMI

Compliance certificatesBSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI

Configuring Location Settings (CLI)Yes

Console portRJ-45

Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T

Depth250 mm

DHCP featuresDHCP server, DHCP client

Ethernet LAN data rates1000 Mbit/s

FanlessNo

Fiber ethernet cabling technology1000BASE-X

Fiber optic connectorSFP

Flash memory32 MB

Flow control supportYes

Form factor1U

Forwarding rate41.7 Mpps

Full duplexYes

GARP VLAN Registration Protocol (GVRP)Yes

Gigabit Ethernet (copper) ports quantity24

Half duplexYes

Harmonized System (HS) code85176990

Heat dissipation857.98 BTU/h

Height44 mm

IGMP snoopingYes

Input voltage100-240 V

Installed SFP modules quantity4

Installed SFP+ modules quantity4

Internal memory256 MB

IP-MAC-Port bindingYes

IPv4 routes64

IPv6 routes32

LAN-Port-TypeGigabit

LAN-Ports24

LayerUnmanaged

LED indicatorsActivity, Fan fail, Link, Power, Speed

Link aggregationYes

Loop protectionYes

MAC address filteringYes

MAC address table16000 entries

ManagementDa

Master (outer) cases per pallet (air)24 pc(s)

Master (outer) cases per pallet (sea)40 pc(s)

Maximum data transfer rate1 Gbit/s

Mean time between failures (MTBF)331669 h

Memory typeDDR3-SDRAM

Montare in RackDa

Multicast featuresControllable multicast

Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2

Multicast supportYes

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Noise level52.9 dB

Number of fans3 fan(s)

Number of IP interfaces4

Number of multicast groups filtered256

Number of queues8

Number of static routes96

Number of VLANs4094

Operating relative humidity (H-H)0 - 95%

Operating temperature (T-T)-5 - 50 °C

Package depth521 mm

Package height92 mm

Package weight4.93 kg

Package width365 mm

Packet buffer memory1.5 MB

Pallet gross length110 cm

Pallet gross weight (air)401.7 kg

Pallet gross weight (sea)652.9 kg

Pallet gross width120 cm

Pallet height (air)131.4 cm

Pallet height (sea)2.1 m

Password protectionYes

PoEDa

Port mirroringYes

Porturi RJ 4524-28

Porturi SFP3-4

Power consumption (max)251.5 W

Power consumption (typical)238.4 W

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity24

Power protection featuresSurge protection

Power sourceAC

Products per pallet (air)72 pc(s)

Products per pallet (sea)120 pc(s)

Products per shipping (inner) case3 pc(s)

Quality of Service (QoS) supportYes

Queue scheduling algorithmsStrict Priority Queue (SPQ), Weighted Round Robin (WRR)

Rack mountingYes

RackableYes

Redundant-PSUNo

Security algorithmsEAP, SNMP, SNMPv2, SNMPv3

SFP module slots quantity4

SFP/SFP+ slots quantity4

Shipping (inner) case gross weight15.7 kg

Shipping (inner) case height39.3 cm

Shipping (inner) case length53.9 cm

Shipping (inner) case net weight14.8 kg

Shipping (inner) case width29.5 cm

Spanning tree protocolYes

SSH/SSL supportYes

StackableNo

Static routeYes

Storage relative humidity (H-H)0 - 95%

Storage temperature (T-T)-20 - 70 °C

Store-and-forwardYes

Sustainability certificatesUL ECOLOGO

Sustainability complianceYes

Switch layerL2

Switch typeManaged

Switching capacity56 Gbit/s

System event logYes

Total Power over Ethernet (PoE) budget193 W

Traffic classificationYes

Virtual LAN featuresMAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN

Viteza transferGigabit

VLAN supportYes

Web-based managementYes

Weight3.7 kg

Width440 mm

Specificații

Brand	D-LINK
Cod produs	NOD-DGS-1210-28P/ME
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
AC input frequency	50/60 Hz
Access Control List (ACL)	Yes
Access Control List (ACL) ingress	256
Access Control List (ACL) rules	256
Active link detection	Yes
ARP inspection	Yes
Authentication type	AAA, RADIUS, TACACS+
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
BPDU filtering/protection	Yes
Broadcast storm control	Yes
Cable types supported	Cat5, Cat5e
Certification	FCC Class A CE Class A ICES-003 VCCI Class A C-Tick BSMI
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Configuring Location Settings (CLI)	Yes
Console port	RJ-45
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Depth	250 mm
DHCP features	DHCP server, DHCP client
Ethernet LAN data rates	1000 Mbit/s
Fanless	No
Fiber ethernet cabling technology	1000BASE-X
Fiber optic connector	SFP
Flash memory	32 MB
Flow control support	Yes
Form factor	1U
Forwarding rate	41.7 Mpps
Full duplex	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Gigabit Ethernet (copper) ports quantity	24
Half duplex	Yes
Harmonized System (HS) code	85176990
Heat dissipation	857.98 BTU/h
Height	44 mm
IGMP snooping	Yes
Input voltage	100-240 V
Installed SFP modules quantity	4
Installed SFP+ modules quantity	4
Internal memory	256 MB
IP-MAC-Port binding	Yes
IPv4 routes	64
IPv6 routes	32
LAN-Port-Type	Gigabit
LAN-Ports	24
Layer	Unmanaged
LED indicators	Activity, Fan fail, Link, Power, Speed
Link aggregation	Yes
Loop protection	Yes
MAC address filtering	Yes
MAC address table	16000 entries
Management	Da
Master (outer) cases per pallet (air)	24 pc(s)
Master (outer) cases per pallet (sea)	40 pc(s)
Maximum data transfer rate	1 Gbit/s
Mean time between failures (MTBF)	331669 h
Memory type	DDR3-SDRAM
Montare in Rack	Da
Multicast features	Controllable multicast
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
Multicast support	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Noise level	52.9 dB
Number of fans	3 fan(s)
Number of IP interfaces	4
Number of multicast groups filtered	256
Number of queues	8
Number of static routes	96
Number of VLANs	4094
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Package depth	521 mm
Package height	92 mm
Package weight	4.93 kg
Package width	365 mm
Packet buffer memory	1.5 MB
Pallet gross length	110 cm
Pallet gross weight (air)	401.7 kg
Pallet gross weight (sea)	652.9 kg
Pallet gross width	120 cm
Pallet height (air)	131.4 cm
Pallet height (sea)	2.1 m
Password protection	Yes
PoE	Da
Port mirroring	Yes
Porturi RJ 45	24-28
Porturi SFP	3-4
Power consumption (max)	251.5 W
Power consumption (typical)	238.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power protection features	Surge protection
Power source	AC
Products per pallet (air)	72 pc(s)
Products per pallet (sea)	120 pc(s)
Products per shipping (inner) case	3 pc(s)
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Rack mounting	Yes
Rackable	Yes
Redundant-PSU	No
Security algorithms	EAP, SNMP, SNMPv2, SNMPv3
SFP module slots quantity	4
SFP/SFP+ slots quantity	4
Shipping (inner) case gross weight	15.7 kg
Shipping (inner) case height	39.3 cm
Shipping (inner) case length	53.9 cm
Shipping (inner) case net weight	14.8 kg
Shipping (inner) case width	29.5 cm
Spanning tree protocol	Yes
SSH/SSL support	Yes
Stackable	No
Static route	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-20 - 70 °C
Store-and-forward	Yes
Sustainability certificates	UL ECOLOGO
Sustainability compliance	Yes
Switch layer	L2
Switch type	Managed
Switching capacity	56 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	193 W
Traffic classification	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN
Viteza transfer	Gigabit
VLAN support	Yes
Web-based management	Yes
Weight	3.7 kg
Width	440 mm

Configurație

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan

AC input frequency: 50/60 HzAccess Control List (ACL): YesAccess Control List (ACL) ingress: 256Access Control List (ACL) rules: 256Active link detection: YesARP inspection: Yes
