CUDY · NOD-GS1010P

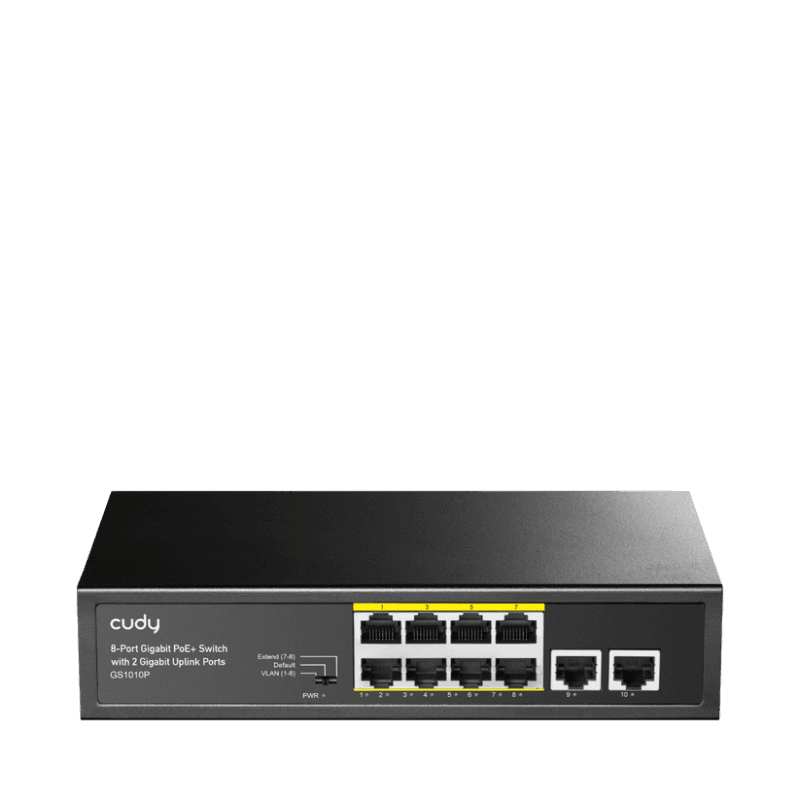

CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x porturi RJ45 10/100/1000 Uplink, VLAN ON/OFF

Name: CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x porturi RJ45 10/100/1000 Uplink, VLAN ON/OFF
Brand: CUDY
SKU: NOD-GS1010P
Price: 419 RON
Availability: BackOrder

CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x porturi RJ45 10/100/1000 Uplink, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF，,standard 802.3af/at, Aternative 1/2(+),3/6(-), Rack-mountable Steel Case, sursa interna de 120W

346 lei

prețuri fără TVA · 419 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.346 lei

CUDY · NetworkingDoar pentru firme (B2B)

CUDY Switch Unmanaged PoE+, 8x porturi RJ-45 10/100/1000M PSE +2x porturi RJ45 10/100/1000 Uplink, VLAN ON/OFF

SKU: NOD-GS1010P

Bandwidth: 20 Gbit/s
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Cable types supported: Cat3, Cat5, Cat5e
Cables included: AC
Copper ethernet cabling technology: 100BASE-T

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

346 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandCUDY

Cod produsNOD-GS1010P

CategorieNetworking

Bandwidth20 Gbit/s

Basic switching RJ-45 Ethernet ports quantity10

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Cable types supportedCat3, Cat5, Cat5e

Cables includedAC

Copper ethernet cabling technology100BASE-T

Depth150 mm

Ethernet LAN data rates10,100 Mbit/s

FanlessYes

Form factorDesktop/Wall-Mounting

Forwarding rate14.88 Mpps

Housing materialMetal

Jumbo frames supportYes

LAN-Port-TypeGigabit

LAN-Ports8

LayerLayer-2

LED indicatorsActivity, Link, Power

MAC address table2048 entries

ManagementNu

Montare in RackDa

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Number of VLANs8

Operating temperature (T-T)-20 - 50 °C

Output current2.3 A

Output voltage52 V

Packet buffer memory0.448 MB

Plug and PlayYes

PoENu

Porturi RJ 455-10

Power connectorAC-in jack

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity8

Power over Ethernet (PoE) power per port30 W

Power over Ethernet plus (PoE+) ports quantity8

Power sourceAC

Power supply includedYes

Quick start guideYes

Rack mountingYes

RackableNo

Redundant-PSUNo

StackableNo

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 80 °C

Store-and-forwardYes

Switching capacity20 Gbit/s

Total Power over Ethernet (PoE) budget120 W

Uplink ports quantity2

Viteza transferGigabit

VLAN supportYes

Wall mountableYes

Weight630 g

Width220 mm

Specificații

Brand	CUDY
Cod produs	NOD-GS1010P
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Bandwidth	20 Gbit/s
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cable types supported	Cat3, Cat5, Cat5e
Cables included	AC
Copper ethernet cabling technology	100BASE-T
Depth	150 mm
Ethernet LAN data rates	10,100 Mbit/s
Fanless	Yes
Form factor	Desktop/Wall-Mounting
Forwarding rate	14.88 Mpps
Housing material	Metal
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LAN-Ports	8
Layer	Layer-2
LED indicators	Activity, Link, Power
MAC address table	2048 entries
Management	Nu
Montare in Rack	Da
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Number of VLANs	8
Operating temperature (T-T)	-20 - 50 °C
Output current	2.3 A
Output voltage	52 V
Packet buffer memory	0.448 MB
Plug and Play	Yes
PoE	Nu
Porturi RJ 45	5-10
Power connector	AC-in jack
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Power source	AC
Power supply included	Yes
Quick start guide	Yes
Rack mounting	Yes
Rackable	No
Redundant-PSU	No
Stackable	No
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 80 °C
Store-and-forward	Yes
Switching capacity	20 Gbit/s
Total Power over Ethernet (PoE) budget	120 W
Uplink ports quantity	2
Viteza transfer	Gigabit
VLAN support	Yes
Wall mountable	Yes
Weight	630 g
Width	220 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Bandwidth: 20 Gbit/sBasic switching RJ-45 Ethernet ports quantity: 10Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)Cable types supported: Cat3, Cat5, Cat5eCables included: ACCopper ethernet cabling technology: 100BASE-T
