CUDY · NOD-FS1010PG

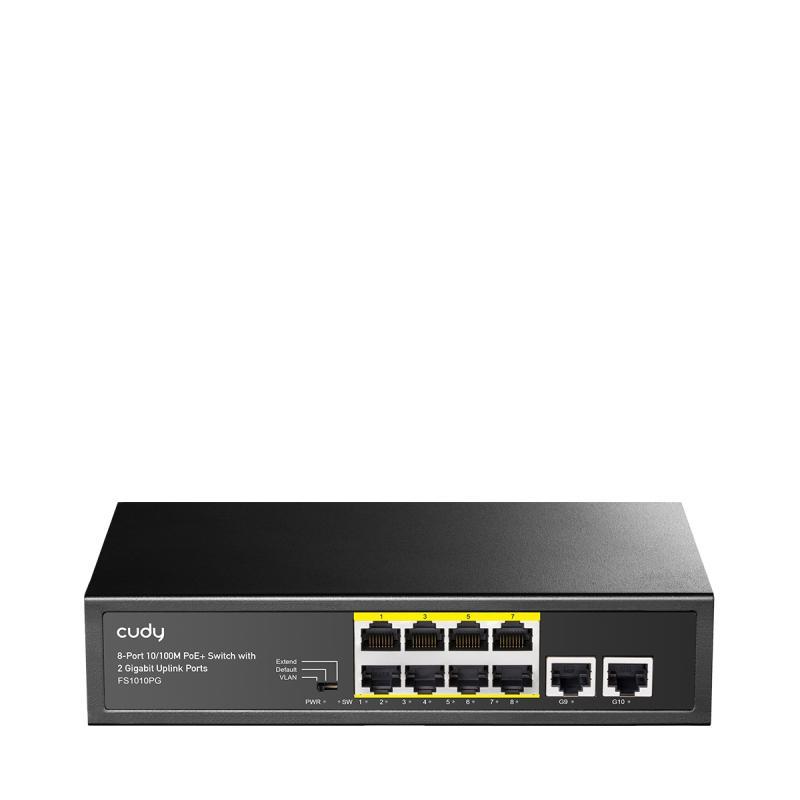

CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100/1000M Uplink Port Unmanaged PoE+ Switch,CCTV/VLAN/Watchdog ON/OFF

Name: CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100/1000M Uplink Port Unmanaged PoE+ Switch,CCTV/VLAN/Watchdog ON/OFF
Brand: CUDY
SKU: NOD-FS1010PG
Price: 267 RON
Availability: BackOrder

CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100/1000M Uplink Port Unmanaged PoE+ Switch,CCTV/VLAN/Watchdog ON/OFF Switch(New version), long distance:250M at CCTV mode. Support PD Alive Function, ±4 KV Surge Protection, 802.3af/at standard, Alternative 1/2(+),3/6(-), Steel Case,Watchdog, 120W Internal Power Supply

221 lei

prețuri fără TVA · 267 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.221 lei

CUDY · NetworkingDoar pentru firme (B2B)

CUDY 8-Port 10/100M PSE RJ-45 +2 RJ45 10/100/1000M Uplink Port Unmanaged PoE+ Switch,CCTV/VLAN/Watchdog ON/OFF

SKU: NOD-FS1010PG

AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Bandwidth: 2 Gbit/s
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Cable types supported: Cat3, Cat4, Cat5, Cat5e

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

221 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandCUDY

Cod produsNOD-FS1010PG

CategorieNetworking

AC input frequency50 - 60 Hz

AC input voltage100 - 240 V

Bandwidth2 Gbit/s

Basic switching RJ-45 Ethernet ports quantity8

Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)

Cable types supportedCat3, Cat4, Cat5, Cat5e

Cables includedAC

Copper ethernet cabling technology10BASE-T, 100BASE-TX

Depth150 mm

Ethernet LAN data rates10,100 Mbit/s

FanlessYes

Flow control supportYes

Forwarding rate1.48 Mpps

Full duplexYes

Half duplexYes

Height44 mm

Housing materialMetal

Jumbo frames1528

Jumbo frames supportYes

LAN-Port-TypeGigabit

LAN-Ports8

LayerLayer-2

LED indicatorsActivity, Link, PoE, Power

MAC address table8000 entries

ManagementNu

Mean time between failures (MTBF)50000 h

Montare in RackNu

Networking standardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x

Operating relative humidity (H-H)10 - 90%

Operating temperature (T-T)0 - 40 °C

Packet buffer memory0.25 MB

Plug and PlayYes

PoENu

Porturi RJ 455-10

Power connectorAC-in jack

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity8

Power over Ethernet (PoE) power per port30 W

Power over Ethernet plus (PoE+) ports quantity1

Power sourceAC

Power supply includedYes

Product colourBlack

RackableNo

Redundant-PSUNo

StackableNo

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 70 °C

Store-and-forwardYes

Surge protectionYes

Surge protection voltage4 kV

Total Power over Ethernet (PoE) budget120 W

Uplink ports quantity2

Viteza transferGigabit

VLAN supportYes

Width220 mm

Specificații

Brand	CUDY
Cod produs	NOD-FS1010PG
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Bandwidth	2 Gbit/s
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Cables included	AC
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Depth	150 mm
Ethernet LAN data rates	10,100 Mbit/s
Fanless	Yes
Flow control support	Yes
Forwarding rate	1.48 Mpps
Full duplex	Yes
Half duplex	Yes
Height	44 mm
Housing material	Metal
Jumbo frames	1528
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LAN-Ports	8
Layer	Layer-2
LED indicators	Activity, Link, PoE, Power
MAC address table	8000 entries
Management	Nu
Mean time between failures (MTBF)	50000 h
Montare in Rack	Nu
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Packet buffer memory	0.25 MB
Plug and Play	Yes
PoE	Nu
Porturi RJ 45	5-10
Power connector	AC-in jack
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	1
Power source	AC
Power supply included	Yes
Product colour	Black
Rackable	No
Redundant-PSU	No
Stackable	No
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Surge protection	Yes
Surge protection voltage	4 kV
Total Power over Ethernet (PoE) budget	120 W
Uplink ports quantity	2
Viteza transfer	Gigabit
VLAN support	Yes
Width	220 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

AC input frequency: 50 - 60 HzAC input voltage: 100 - 240 VBandwidth: 2 Gbit/sBasic switching RJ-45 Ethernet ports quantity: 8Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)Cable types supported: Cat3, Cat4, Cat5, Cat5e
