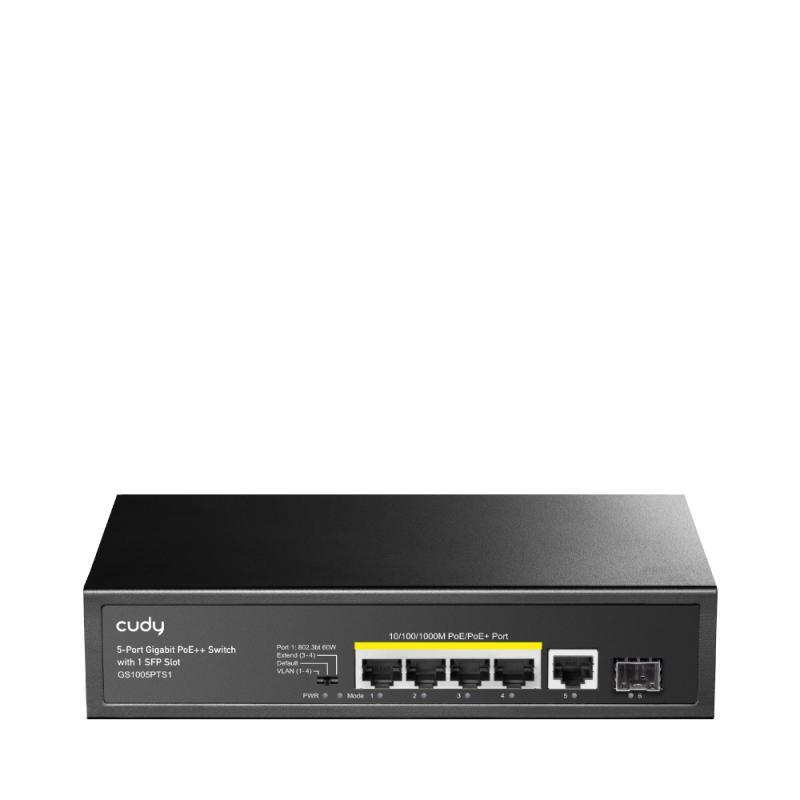

CUDY · NOD-GS1005PTS1

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af

Name: CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af
Brand: CUDY
SKU: NOD-GS1005PTS1
Price: 321 RON
Availability: BackOrder

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af, VLAN ON/OFF, Extend ON/OFF, Watchdog ON/OFF， Fanless, ±4KV Surge Protection,Watchdog, 120W Internal Power Supply

265 lei

prețuri fără TVA · 321 lei cu TVA

La comandă·5–7 zile

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.265 lei

CUDY · NetworkingDoar pentru firme (B2B)

CUDY 5-Port 10/100/1000M PoE+ Switch 120W, 4-Port 10/100/1000M PoE+ ports, 60 watts for port #1, 802.3at/af

SKU: NOD-GS1005PTS1

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Cables included: AC
Combo SFP ports quantity: 1
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

265 leiprețuri fără TVA

La comandă·5–7 zile

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandCUDY

Cod produsNOD-GS1005PTS1

CategorieNetworking

Basic switching RJ-45 Ethernet ports quantity5

Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1

Cables includedAC

Combo SFP ports quantity1

Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-TX

Ethernet LAN data rates10,100,1000 Mbit/s

FanlessYes

Fiber typeMulti-mode

Flow control supportYes

Full duplexYes

Half duplexYes

Housing materialMetal

Input current1.25 A

Installed SFP modules quantity1

Installed SFP+ modules quantity1

Jumbo frames9216

Jumbo frames supportYes

LAN-Port-TypeGigabit

LAN-Ports5

LayerLayer-2

LED indicatorsActivity, Link, Power

MAC address table2000 entries

ManagementNu

Master (outer) case height402 mm

Master (outer) case length320 mm

Master (outer) case net weight19 kg

Master (outer) case width505 mm

Mean time between failures (MTBF)100000 h

Montare in RackDa

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Operating altitude0 - 3048 m

Operating temperature (T-T)-20 - 50 °C

Output current1.25 A

Output voltage52 V

Package depth190 mm

Package height60 mm

Package typeBox

Package weight900 g

Package width245 mm

Packet buffer memory1 MB

Plug and PlayYes

PoENu

Porturi RJ 455-10

Porturi SFP1-2

Power connectorAC-in jack

Power over Ethernet (PoE)Yes

Power over Ethernet (PoE) ports quantity4

Power over Ethernet (PoE) power per port30 W

Power over Ethernet plus (PoE+) ports quantity1

Power sourceAC

Power supply includedYes

Products per master (outer) case20 pc(s)

Rack mountingYes

RackableNo

Redundant-PSUNo

StackableNo

Storage relative humidity (H-H)5 - 90%

Storage temperature (T-T)-40 - 85 °C

Store-and-forwardYes

Switching capacity12 Gbit/s

Switching optical modules typeGigabit Ethernet

Throughput8.928 Mpps

Total Power over Ethernet (PoE) budget120 W

Uplink ports quantity1

Viteza transferGigabit

VLAN supportYes

Wall mountableYes

Weight600 g

Width200 mm

Specificații

Brand	CUDY
Cod produs	NOD-GS1005PTS1
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	5–7 zile
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Cables included	AC
Combo SFP ports quantity	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX
Ethernet LAN data rates	10,100,1000 Mbit/s
Fanless	Yes
Fiber type	Multi-mode
Flow control support	Yes
Full duplex	Yes
Half duplex	Yes
Housing material	Metal
Input current	1.25 A
Installed SFP modules quantity	1
Installed SFP+ modules quantity	1
Jumbo frames	9216
Jumbo frames support	Yes
LAN-Port-Type	Gigabit
LAN-Ports	5
Layer	Layer-2
LED indicators	Activity, Link, Power
MAC address table	2000 entries
Management	Nu
Master (outer) case height	402 mm
Master (outer) case length	320 mm
Master (outer) case net weight	19 kg
Master (outer) case width	505 mm
Mean time between failures (MTBF)	100000 h
Montare in Rack	Da
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating altitude	0 - 3048 m
Operating temperature (T-T)	-20 - 50 °C
Output current	1.25 A
Output voltage	52 V
Package depth	190 mm
Package height	60 mm
Package type	Box
Package weight	900 g
Package width	245 mm
Packet buffer memory	1 MB
Plug and Play	Yes
PoE	Nu
Porturi RJ 45	5-10
Porturi SFP	1-2
Power connector	AC-in jack
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	1
Power source	AC
Power supply included	Yes
Products per master (outer) case	20 pc(s)
Rack mounting	Yes
Rackable	No
Redundant-PSU	No
Stackable	No
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 85 °C
Store-and-forward	Yes
Switching capacity	12 Gbit/s
Switching optical modules type	Gigabit Ethernet
Throughput	8.928 Mpps
Total Power over Ethernet (PoE) budget	120 W
Uplink ports quantity	1
Viteza transfer	Gigabit
VLAN support	Yes
Wall mountable	Yes
Weight	600 g
Width	200 mm

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

Basic switching RJ-45 Ethernet ports quantity: 5Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1Cables included: ACCombo SFP ports quantity: 1Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-TX
