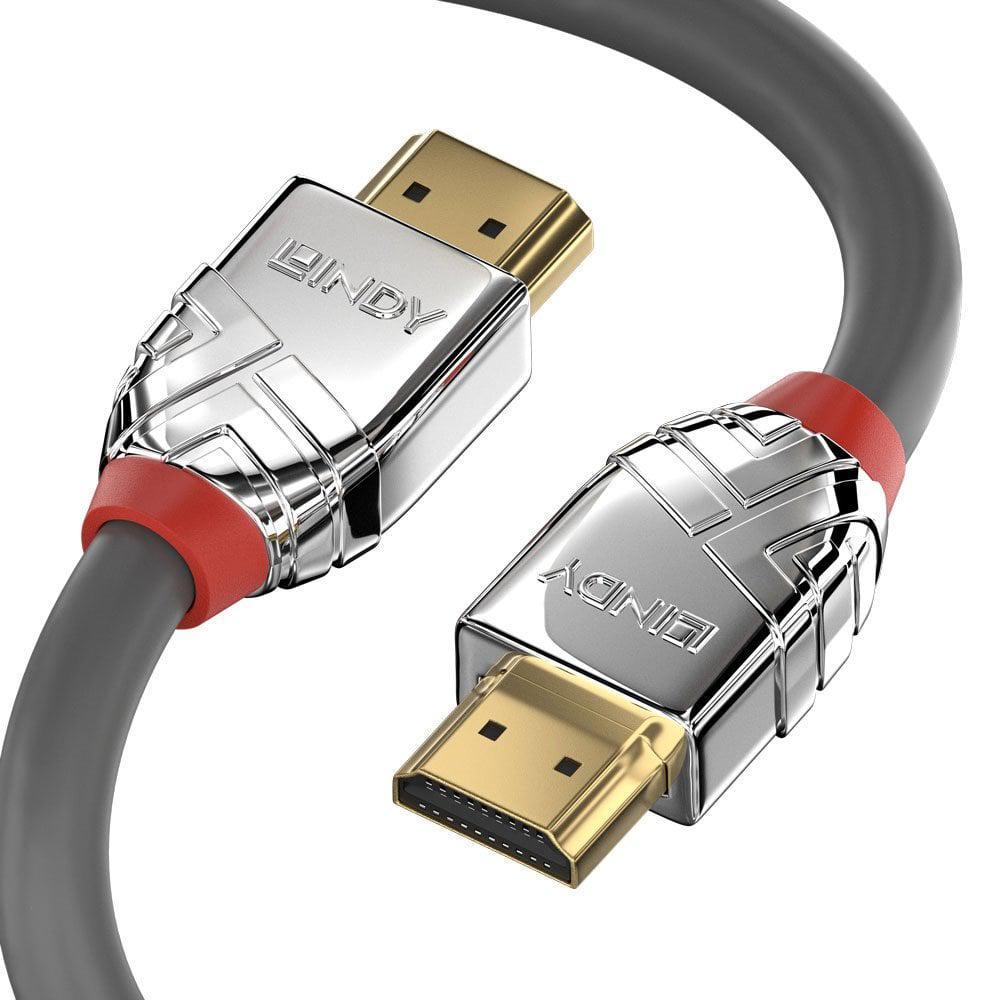

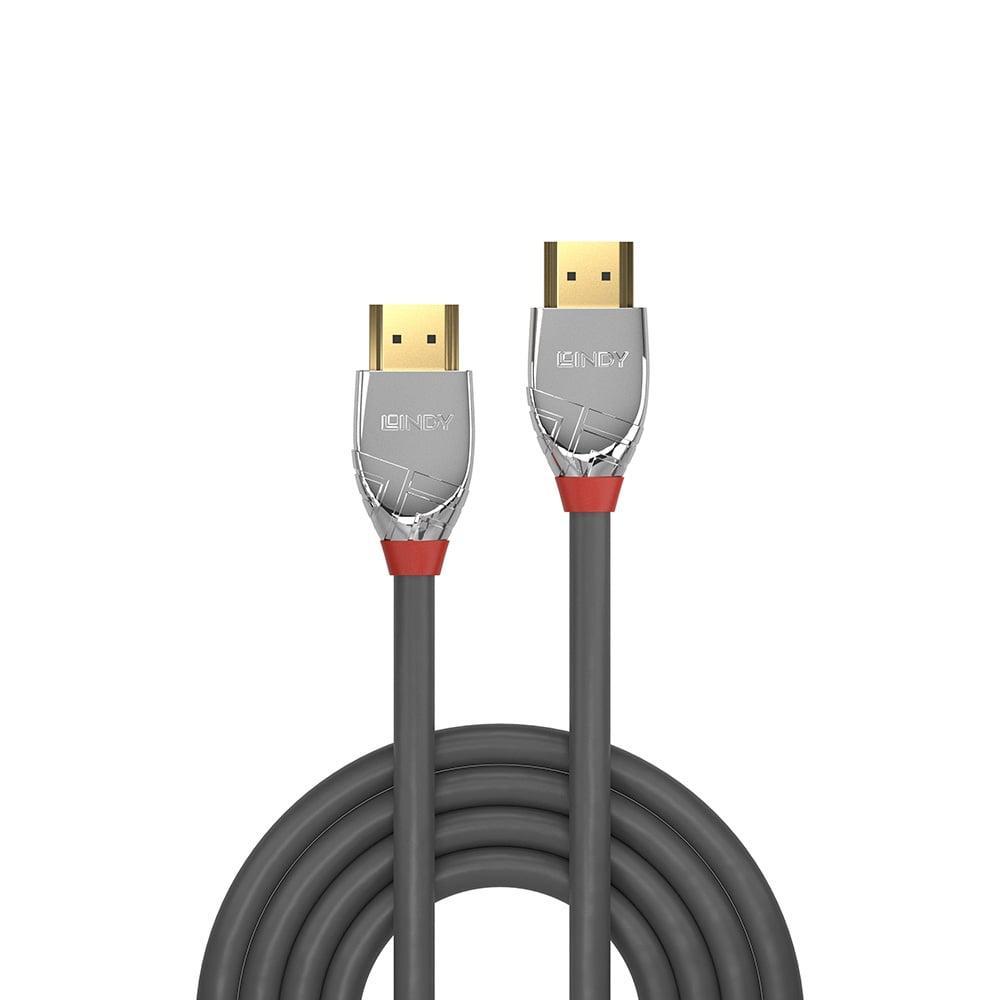

Cablu Lindy LY-37873, High Speed HDMI, Crom

LINDY · NOD-LY-37873

Cablu Lindy LY-37873, High Speed HDMI, Crom

Name: Cablu Lindy LY-37873, High Speed HDMI, Crom
Brand: LINDY
SKU: NOD-LY-37873
Price: 77 RON
Availability: InStock

<ul><li>Connector A: HDMI Type A Male</li><li>Connector B: HDMI Type A Male</li><li>Housing Material: Chrome Plated ABS Plastic</li><li>Connector Plating: 24K Gold 3µm</li><li>Pin Construction: Phosphor Copper</li><li>Pin Plating: 24K Gold 15µm</li><li>Dimensions, HDMI Connector (approx.) WxDxH: 20x10.6x34mm (0.79x0.42x1.34in)</li></ul>

64 lei

prețuri fără TVA · 77 lei cu TVA

Disponibil la furnizor · 13 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.64 lei

LINDY · ComponenteDoar pentru firme (B2B)

Cablu Lindy LY-37873, High Speed HDMI, Crom

SKU: NOD-LY-37873

3D: Yes
AWG wire size: 28
Bending radius (min): 6 cm
Cable diameter: 7.3 mm
Cable jacket material: Polyvinyl chloride (PVC)
Cable length: 3 m

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

64 leiprețuri fără TVA

Disponibil la furnizor · 13 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandLINDY

Cod produsNOD-LY-37873

CategorieComponente

3DYes

AWG wire size28

Bending radius (min)6 cm

Cable diameter7.3 mm

Cable jacket materialPolyvinyl chloride (PVC)

Cable length3 m

Cable materialTinned copper

Cable typeRound cable

Canal EthernetDa

CertificationRoHS, REACH, UL, ATC

Colour depth8 bit

Colour sampling4:4:4

Conector 1HDMI

Conector 2HDMI

Connector 1HDMI Type A (Standard)

Connector 1 dimensions (WxDxH)20 x 10.6 x 34 mm

Connector 1 form factorStraight

Connector 1 genderMale

Connector 2HDMI Type A (Standard)

Connector 2 dimensions (WxDxH)20 x 10.6 x 34 mm

Connector 2 form factorStraight

Connector 2 genderMale

Connector contacts platingGold

Connector housing materialAcrylonitrile butadiene styrene (ABS)

Connector materialGold

Contact materialPhosphor copper

Data transfer rate18 Gbit/s

Harmonized System (HS) code84733080

HDMI Ethernet channelYes

HDMI version2.0

Lungime Cablu2.1m - 3m

Maximum resolution4096 x 2160 pixels

Nominal attenuation300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Operating temperature (T-T)-10 - 80 °C

Package typePolybag

Product colourGrey, Silver

Quantity per pack1 pc(s)

Shield materialCopper

Storage temperature (T-T)-10 - 80 °C

Supported graphics resolutions4096 x 2160

Specificații

Brand	LINDY
Cod produs	NOD-LY-37873
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
3D	Yes
AWG wire size	28
Bending radius (min)	6 cm
Cable diameter	7.3 mm
Cable jacket material	Polyvinyl chloride (PVC)
Cable length	3 m
Cable material	Tinned copper
Cable type	Round cable
Canal Ethernet	Da
Certification	RoHS, REACH, UL, ATC
Colour depth	8 bit
Colour sampling	4:4:4
Conector 1	HDMI
Conector 2	HDMI
Connector 1	HDMI Type A (Standard)
Connector 1 dimensions (WxDxH)	20 x 10.6 x 34 mm
Connector 1 form factor	Straight
Connector 1 gender	Male
Connector 2	HDMI Type A (Standard)
Connector 2 dimensions (WxDxH)	20 x 10.6 x 34 mm
Connector 2 form factor	Straight
Connector 2 gender	Male
Connector contacts plating	Gold
Connector housing material	Acrylonitrile butadiene styrene (ABS)
Connector material	Gold
Contact material	Phosphor copper
Data transfer rate	18 Gbit/s
Harmonized System (HS) code	84733080
HDMI Ethernet channel	Yes
HDMI version	2.0
Lungime Cablu	2.1m - 3m
Maximum resolution	4096 x 2160 pixels
Nominal attenuation	300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Operating temperature (T-T)	-10 - 80 °C
Package type	Polybag
Product colour	Grey, Silver
Quantity per pack	1 pc(s)
Shield material	Copper
Storage temperature (T-T)	-10 - 80 °C
Supported graphics resolutions	4096 x 2160
