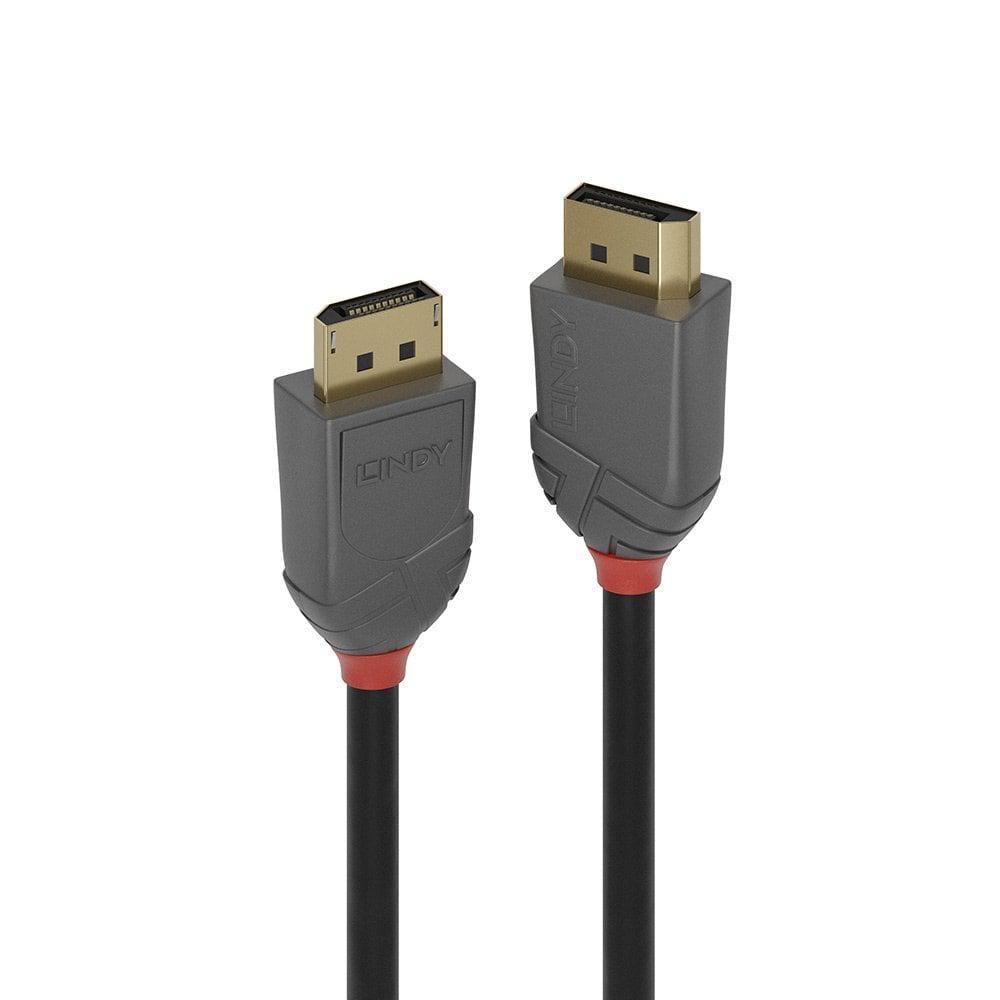

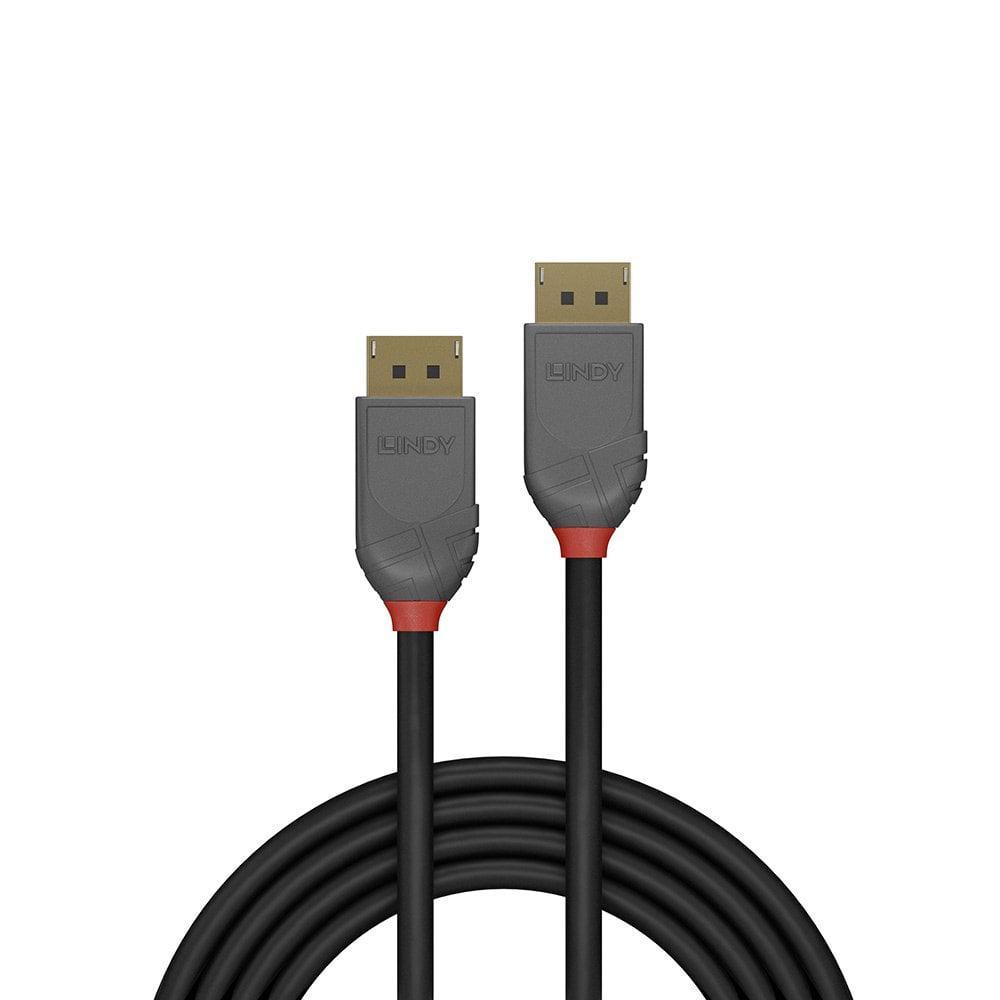

Cablu Lindy LY-36481, DisplayPort 1.4, Anthra Line
LINDY · NOD-LY-36481

Cablu Lindy LY-36481, DisplayPort 1.4, Anthra Line

Connectors <ul><li>Connector A: DisplayPort Male</li><li>Connector B: DisplayPort Male</li><li>Housing Material: ABS</li><li>Connector Plating: 24K Gold 15µm</li><li>Pin Construction: Phosphor Bronze</li><li>Pin Plating: 24K Gold 3µm</li><li>Dimensions (approx.) WxDxH: 21.0x38.9x13.6mm (0.83x1.53x0.54in) </li></ul><p>Cable Construction</p><ul><li>Length: 1m (3.28ft)</li><li>Standard: DisplayPort 1.4</li><li>Colour: Black</li><li>Type: Round</li><li>Jacket Diameter: 7.3mm (0.29in)</li><li>Jacket Material: PVC</li><li>Conductor Material: Tinned Copper</li><li>Conductor Gauge: 28AWG</li><li>Shielding: Copper Braid 65%</li></ul>
46 lei
prețuri fără TVA · 56 lei cu TVA
La comandă·5–7 zile
Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →
Cantitate
1
Preț de volum de la 5 buc. — cere ofertă
Total 1 buc.46 lei
BrandLINDY
Cod produsNOD-LY-36481
CategorieComponente
AWG wire size28
Bend radius (min)5.84 cm
Cable diameter7.3 mm
Cable length1 m
Cable materialTinned copper
Cable shieldingCopper
Cable typeRound cable
Canal EthernetNu
CertificationRoHS, REACH, UL
Colour sampling4:2:2
Conector 1DisplayPort
Conector 2DisplayPort
Connector 1DisplayPort
Connector 1 dimensions (WxDxH)21 x 38.9 x 13.6 mm
Connector 1 form factorStraight
Connector 1 genderMale
Connector 2DisplayPort
Connector 2 dimensions (WxDxH)21 x 38.9 x 13.6 mm
Connector 2 form factorStraight
Connector 2 genderMale
Connector contacts platingGold
Connector housing materialAcrylonitrile butadiene styrene (ABS)
Connector materialGold
Contact materialPhosphor bronze
Data transfer rate32.4 Gbit/s
DisplayPort version1.4
Harmonized System (HS) code84733080
Jacket materialPolyvinyl chloride (PVC)
Lungime Cablu1m - 1.5m
Maximum refresh rate60 Hz
Maximum resolution7680 x 4320 pixels
Nominal attenuation100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operating temperature (T-T)-20 - 80 °C
Package typePolybag
Plug and PlayYes
Product colourBlack, Grey
Quantity per pack1 pc(s)
Storage temperature (T-T)-25 - 85 °C
Supported graphics resolutions4096 x 2160, 7680 x 4320
