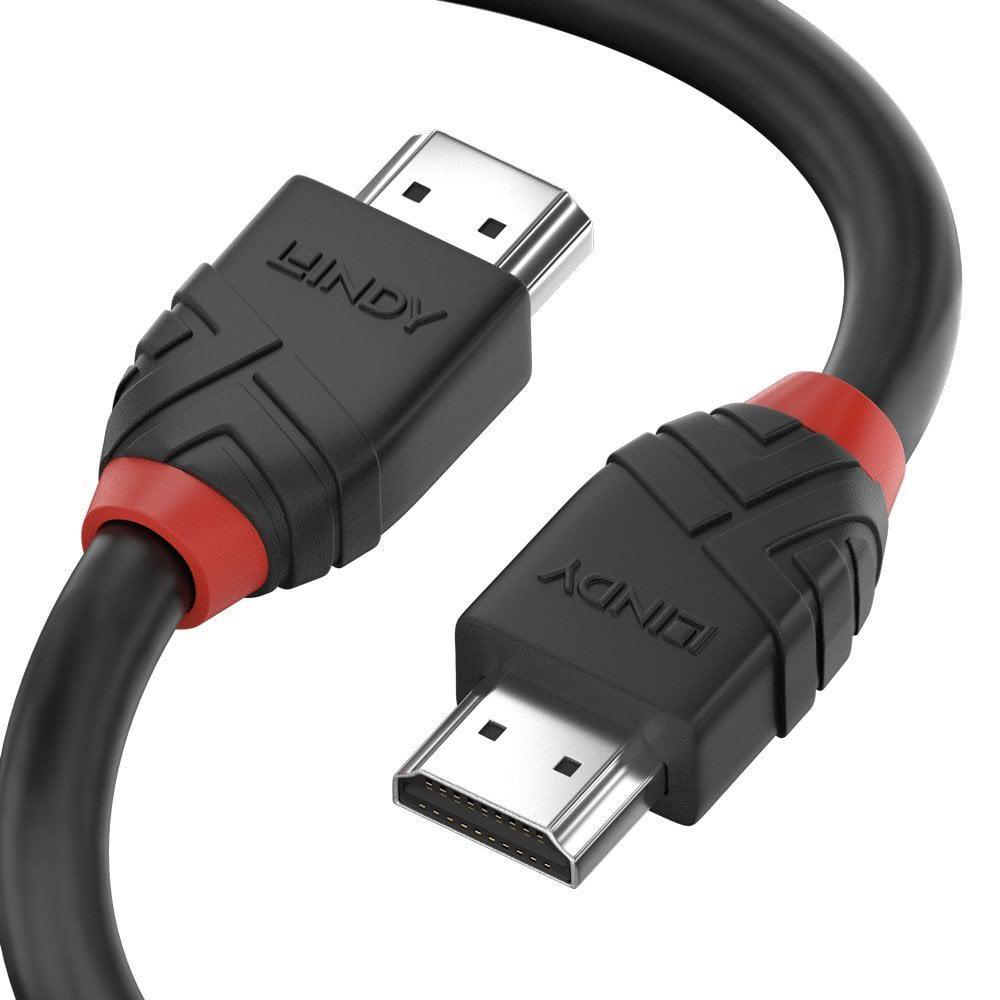

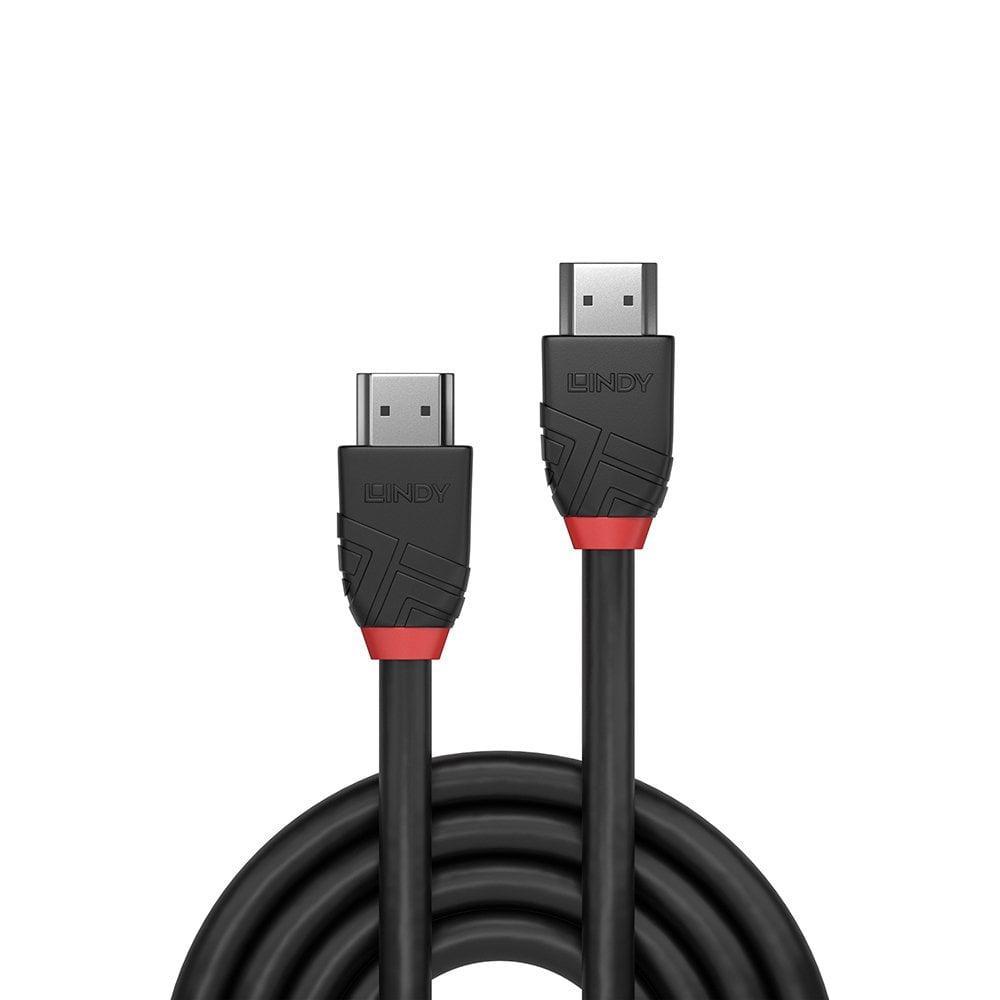

Cablu Lindy LY-36472, HDMI 2.0, Black Line

LINDY · NOD-LY-36472

Cablu Lindy LY-36472, HDMI 2.0, Black Line

Name: Cablu Lindy LY-36472, HDMI 2.0, Black Line
Brand: LINDY
SKU: NOD-LY-36472
Price: 25 RON
Availability: InStock

Connectors: <ul><li>Connector A: HDMI Type A Male</li><li>Connector B: HDMI Type A Male</li><li>Housing Material: PVC</li><li>Connector Plating: Nickel</li><li>Pin Construction: Phosphor Bronze</li><li>Pin Plating: Gold Flash</li><li>Dimensions (approx.) WxDxH: 19.2x34.1x10.6mm (0.76x1.34x0.42in)</li></ul>

21 lei

prețuri fără TVA · 25 lei cu TVA

Disponibil la furnizor · 7 buc·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.21 lei

LINDY · ComponenteDoar pentru firme (B2B)

Cablu Lindy LY-36472, HDMI 2.0, Black Line

SKU: NOD-LY-36472

AWG wire size: 30
Bending radius (min): 6 cm
Cable diameter: 6 mm
Cable jacket material: Polyvinyl chloride (PVC)
Cable length: 2 m
Cable material: Copper-clad steel (CCS)

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

21 leiprețuri fără TVA

Disponibil la furnizor · 7 buc·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandLINDY

Cod produsNOD-LY-36472

CategorieComponente

AWG wire size30

Bending radius (min)6 cm

Cable diameter6 mm

Cable jacket materialPolyvinyl chloride (PVC)

Cable length2 m

Cable materialCopper-clad steel (CCS)

Cable typeRound cable

Canal EthernetDa

CertificationRoHS, REACH, UL

Colour depth8 bit

Colour sampling4:4:4

Conector 1HDMI

Conector 2HDMI

Connector 1HDMI Type A (Standard)

Connector 1 dimensions (WxDxH)19.2 x 34.1 x 10.6 mm

Connector 1 form factorStraight

Connector 1 genderMale

Connector 2HDMI Type A (Standard)

Connector 2 dimensions (WxDxH)19.2 x 34.1 x 10.6 mm

Connector 2 form factorStraight

Connector 2 genderMale

Connector contacts platingGold

Connector housing materialPolyvinyl chloride (PVC)

Connector materialNickel

Contact materialPhosphor bronze

Data transfer rate18 Gbit/s

Harmonized System (HS) code84733080

HDMI Ethernet channelYes

HDMI version2.0

Lungime Cablu1.6m - 2m

Maximum resolution4096 x 2160 pixels

Nominal attenuation300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB

Operating temperature (T-T)-10 - 80 °C

Package typePolybag

Product colourBlack

Quantity per pack1 pc(s)

Shield materialAluminium

Storage temperature (T-T)-10 - 80 °C

Supported graphics resolutions4096 x 2160

Specificații

Brand	LINDY
Cod produs	NOD-LY-36472
Categorie	Componente
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
AWG wire size	30
Bending radius (min)	6 cm
Cable diameter	6 mm
Cable jacket material	Polyvinyl chloride (PVC)
Cable length	2 m
Cable material	Copper-clad steel (CCS)
Cable type	Round cable
Canal Ethernet	Da
Certification	RoHS, REACH, UL
Colour depth	8 bit
Colour sampling	4:4:4
Conector 1	HDMI
Conector 2	HDMI
Connector 1	HDMI Type A (Standard)
Connector 1 dimensions (WxDxH)	19.2 x 34.1 x 10.6 mm
Connector 1 form factor	Straight
Connector 1 gender	Male
Connector 2	HDMI Type A (Standard)
Connector 2 dimensions (WxDxH)	19.2 x 34.1 x 10.6 mm
Connector 2 form factor	Straight
Connector 2 gender	Male
Connector contacts plating	Gold
Connector housing material	Polyvinyl chloride (PVC)
Connector material	Nickel
Contact material	Phosphor bronze
Data transfer rate	18 Gbit/s
Harmonized System (HS) code	84733080
HDMI Ethernet channel	Yes
HDMI version	2.0
Lungime Cablu	1.6m - 2m
Maximum resolution	4096 x 2160 pixels
Nominal attenuation	300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Operating temperature (T-T)	-10 - 80 °C
Package type	Polybag
Product colour	Black
Quantity per pack	1 pc(s)
Shield material	Aluminium
Storage temperature (T-T)	-10 - 80 °C
Supported graphics resolutions	4096 x 2160

Configurație

Ai nevoie de o configurație diferită? Echipa noastră o poate personaliza — Cere ofertă.

Prezentare detaliată

AWG wire size: 30Bending radius (min): 6 cmCable diameter: 6 mmCable jacket material: Polyvinyl chloride (PVC)Cable length: 2 mCable material: Copper-clad steel (CCS)
