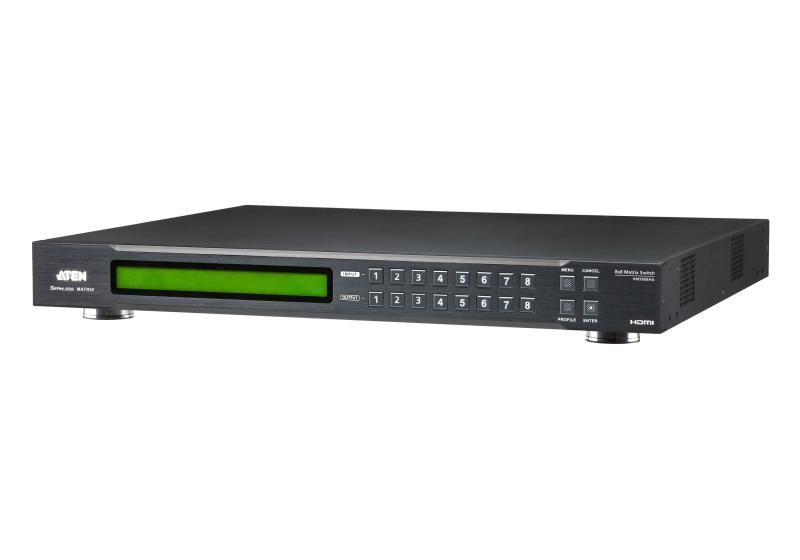

ATEN · NOD-VM5808HA-AT-G

ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de transfer de date: 6,75 Gbit/s

Name: ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de transfer de date: 6,75 Gbit/s
Brand: ATEN
SKU: NOD-VM5808HA-AT-G
Price: 33236 RON
Availability: LimitedAvailability

ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de transfer de date: 6,75 Gbit/s, Tact maxim pixel: 225 MHz. Culoare carcasă externă: Negru, Material carcasă: Metal. Consum de energie (tipic): 56,5 W, Tensiune AC intrare: 100 - 240 V, Frecvență de intrare AC: 50 - 60 Hz. Produse per cutie ambalaj (exterior): 1 buc., Greutate netă cutie ambalaj (exterior): 5,83 kg, Lungime cutie ambalaj (exterior): 515 mm. Lățime: 262,3 mm, Adâncime: 432,4 mm, Înălţime: 44 mm

27.468 lei

prețuri fără TVA · 33.236 lei cu TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Produs disponibil doar cu cont de firmă verificat. Creează cont B2B →

Cantitate

Preț de volum de la 5 buc. — cere ofertă

Total 1 buc.27.468 lei

ATEN · NetworkingDoar pentru firme (B2B)

ATEN VM5808H-AT-G. Tipul de produs: Comutator matrice scalare, Rata de transfer de date: 6,75 Gbit/s

SKU: NOD-VM5808HA-AT-G

3D: Yes
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Audio (L/R) out: 1
Built-in display: No
Cables included: AC

Prețuri de volum

Pentru 5+ bucăți primești preț negociat — trimite o cerere de ofertă din coș.

27.468 leiprețuri fără TVA

Disponibil la furnizor·termen de livrare confirmat la comandă

Cere ofertă pentru volum

Acest produs se poate comanda doar cu cont de firmă verificat. Creează cont B2B →

Retur gratuit 30 de zileFactură fiscală automatăGaranție de producător

BrandATEN

Cod produsNOD-VM5808HA-AT-G

CategorieNetworking

3DYes

AC input frequency50 - 60 Hz

AC input voltage100 - 240 V

Audio (L/R) out1

Built-in displayNo

Cables includedAC

Country of originTaiwan

Data transfer rate6.75 Gbit/s

Depth432.4 mm

Ethernet LAN (RJ-45) ports1

Extended display identification data (EDID)Yes

Firmware upgradeableYes

HDCPYes

HDCP version1.4

HDMI input ports quantity8

HDMI output ports quantity9

Heat dissipation265 BTU/h

Heat dissipation (max)272 BTU/h

Height44 mm

Housing colourBlack

Housing materialMetal

Input current1 A

Interfata HDMIDa

KVM-Ports8

KVM-TypeAnalog

ManualYes

Master (outer) case gross weight7.04 kg

Master (outer) case height130 mm

Master (outer) case length575 mm

Master (outer) case net weight5.87 kg

Master (outer) case volume37944.57 cm³

Master (outer) case width506 mm

Maximum pixel clock225 MHz

Maximum resolution1920 x 1080 pixels

Numar porturi HDMI5-10

On/off switchYes

Operating relative humidity (H-H)0 - 80%

Operating temperature (T-T)0 - 40 °C

Package depth575 mm

Package height130 mm

Package volume37944.57 cm³

Package weight7.04 kg

Package width506 mm

Power consumption (max)58.1 W

Power consumption (typical)56.6 W

Product typeAV matrix switcher

Rack capacity1U

Rack mount kitYes

Rack mountingYes

Rezolutie1920 x 1080

RS-232 ports1

Storage temperature (T-T)-20 - 60 °C

Weight5.54 kg

Width378.2 mm

Specificații

Brand	ATEN
Cod produs	NOD-VM5808HA-AT-G
Categorie	Networking
Garanție	Se confirmă la ofertare
Livrare	termen de livrare confirmat la comandă
3D	Yes
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Audio (L/R) out	1
Built-in display	No
Cables included	AC
Country of origin	Taiwan
Data transfer rate	6.75 Gbit/s
Depth	432.4 mm
Ethernet LAN (RJ-45) ports	1
Extended display identification data (EDID)	Yes
Firmware upgradeable	Yes
HDCP	Yes
HDCP version	1.4
HDMI input ports quantity	8
HDMI output ports quantity	9
Heat dissipation	265 BTU/h
Heat dissipation (max)	272 BTU/h
Height	44 mm
Housing colour	Black
Housing material	Metal
Input current	1 A
Interfata HDMI	Da
KVM-Ports	8
KVM-Type	Analog
Manual	Yes
Master (outer) case gross weight	7.04 kg
Master (outer) case height	130 mm
Master (outer) case length	575 mm
Master (outer) case net weight	5.87 kg
Master (outer) case volume	37944.57 cm³
Master (outer) case width	506 mm
Maximum pixel clock	225 MHz
Maximum resolution	1920 x 1080 pixels
Numar porturi HDMI	5-10
On/off switch	Yes
Operating relative humidity (H-H)	0 - 80%
Operating temperature (T-T)	0 - 40 °C
Package depth	575 mm
Package height	130 mm
Package volume	37944.57 cm³
Package weight	7.04 kg
Package width	506 mm
Power consumption (max)	58.1 W
Power consumption (typical)	56.6 W
Product type	AV matrix switcher
Rack capacity	1U
Rack mount kit	Yes
Rack mounting	Yes
Rezolutie	1920 x 1080
RS-232 ports	1
Storage temperature (T-T)	-20 - 60 °C
Weight	5.54 kg
Width	378.2 mm
