Prezentare detaliată

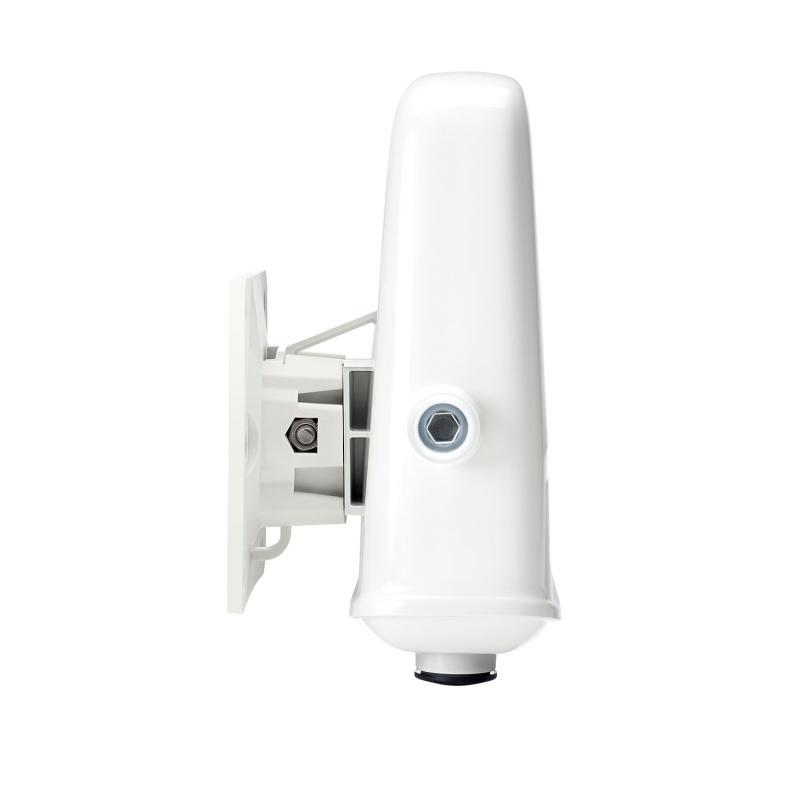

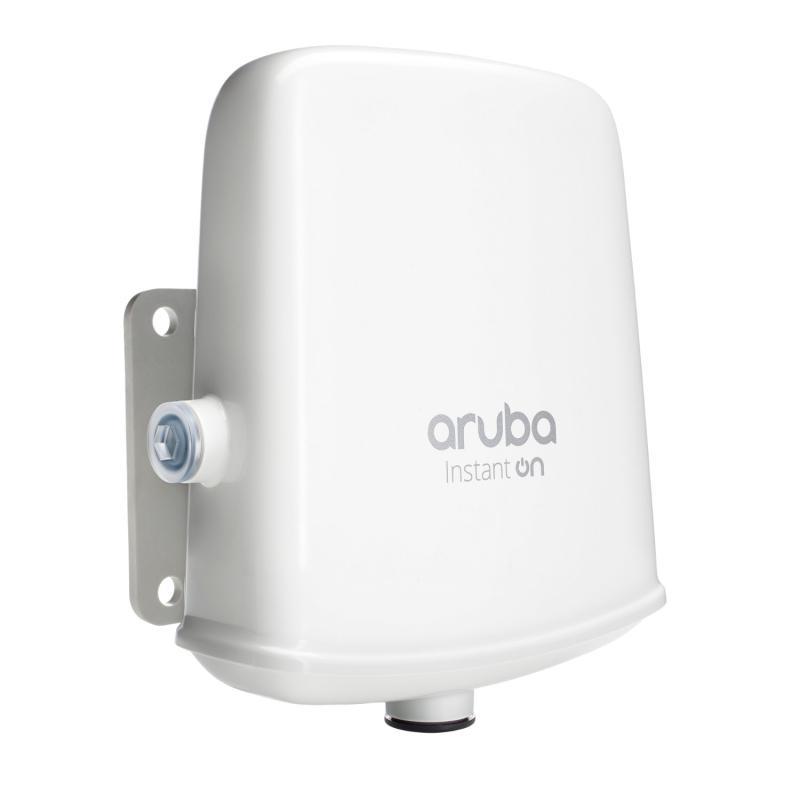

<h4>Lifecycle</h4><ul><li><b>Obsolete Date</b> 31-12-2099</li><li><b>End of support date</b> 31-12-2104</li></ul><h4>Specifications</h4><ul><li><b>Wi-Fi antenna</b> Two dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz)</li><li><b>Radio coverage</b> Dual Radio for simultaneous dual-band operation 5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5) 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)</li><li><b>Product dimensions (imperial)</b> 7.4 x 6.1 x 2.6 in</li><li><b>Weight</b> 650 g</li><li><b>Product dimensions (metric)</b> 187 x 156 x 67 mm</li><li><b>Input voltage</b> Power over Ethernet (PoE): 802.3af power consumption 13.5W max</li><li><b>Weight</b> 1.4 lb</li><li><b>Mounting</b> The access point ships with a mount bracket, can be mounted on the wall or a pole</li><li><b>Ports</b> (1) uplink Gigabit Ethernet port, with POE-in support (802.3af)</li><li><b>Regulatory</b> IEC 60950/62368 CB UL2043 for air-handling space (plenum rating)</li><li><b>Certifications</b> WPA2 ,WPA3 ,Enhanced Open (OWE) Wi-Fi Alliance certified (WFA) 802.11ac Wave 2 (Wi-Fi5)</li><li><b>Warranty</b> Aruba Instant On 2 Year warranty with 24X7 phone support for first 90 days and chat support for the entire warranty period. Community support as long as you own the products.</li><li><b>Connectivity, standard</b> IEEE 802.11ac, 802.11n</li></ul><h4>Quickspecs</h4><ul><li>QuickSpecs</li><li>QuickSpecs</li><li>QuickSpecs (PDF)</li><li>QuickSpecs (HTML)</li></ul><h4>Overview</h4><p>Aruba Instant On AP17 Outdoor Access Points deliver affordable, business-grade Wave 2 802.11ac Wi-Fi for medium-density small business environments requiring high performance and bandwidth. The weather-proof Aruba Instant On AP17 Outdoor Access Points are designed to deliver high-performance network coverage to outdoor and environmentally challenging locations like smaller manufacturing units and open-air restaurants. Enjoy stronger Wi-Fi strength even in the pool and patio area of your space. The compact form factor of the Aruba Instant On AP17 Outdoor Access Points deliver reliable and affordable multi-user capabilities and an aggregate peak data rate of 2 Gbps to support high-definition video streaming and cloud application requirements. These access points (AP) also come with a built-in controller to simplify deployment, making it easy to install and manage multiple access points without requiring extensive IT experience, additional hardware, or software applications.</p><h4>What's new</h4><ul><li>Comes with an integrated virtual controller for simple deployment of multiple access points.</li><li>Support for WPA2/WPA3 employee and guest login with Enhanced Open for per user guest access.</li><li>Entry-level wireless access points for small and growing businesses at a cost-sensitive price point.</li></ul><h4>Features</h4><p>Aruba Instant On AP17 Outdoor Access Points are designed for single or distributed small businesses sites such as tech start-ups, graphic design firms, cafés, restaurants, and other Wi-Fi hotspots.</p><p>The Aruba Instant On AP17 Outdoor Access Points are built with premium hardware and software quality that’s reliable and comes from a trusted vendor.</p><p>Effortless set-up right out of the box – in the palm of your hand.</p><b>Simplicity is the Key to a Great Wi-Fi Experience</b><p>Create up to eight different SSIDs under one network name to keep your data safe, whether surfing the web or checking HR data.</p><p>Aruba Instant On AP17 Outdoor Access Points come with integrated Wi-Fi Alliance security standard WPA2/WPA3 and Enhanced Open support for protected wireless access.</p><b>Safeguard Sensitive Data with WPA2/WPA3 and Enhanced Open</b><p>Conveniently expands your network to hard-to-wire areas and nearly eliminating spotty connections and dead zones, providing Wi-Fi where you need it.</p><p>Aruba Instant On AP17 Outdoor Access Points feature built-in wireless mesh capabilities to cost-effectively extend Wi-Fi connectivity without additional cables.</p><b>Eliminates High Cost of Cabling with Full-Scale Wireless Mesh Coverage</b><b>Fast Connectivity with 802.11ac Wave 2 Access Points that is Simple to Deploy</b><p>Aruba Instant On AP17 Outdoor Access Points include an easy to use web GUI and templates so access points are up and running in minutes.</p><p>802.11ac Wave 2 features include 4x4:4SS and up to 160 MHz channel bandwidth.</p><p>Dual-band wireless (2.4GHz and 5GHz) for combined speeds of up to 2Gbps support high-bandwidth activities such as video, voice, and conferencing solutions.</p><p>Aruba Instant On AP17 Outdoor Access Points allow for any change to the primary AP configuration to be automatically pushed to every AP in the same cluster.</p><p>A secondary AP automatically takes over if the primary AP experiences an outage for always-on Wi-Fi.</p><p>Simple to build landing page lets you customize your guest access page with your logo, your own brand, and acceptance of use language.</p><p>The Aruba Instant On portfolio comes with flexible management options to choose from: The Aruba Instant On mobile app guides you through step-by-step from initial set-up to ongoing management.</p><h4>Compatible products</h4><ul><li>HPE Aruba Networking Foundational Care 3Y NBD Exch Instant ON Access Point SVC</li><li>HPE Networking Instant On ION-MNT-OTDR Outdoor Bracket</li></ul><h4>Documents</h4><ul><li>Interconnected retail on a massive scale – The Home Depot</li><li>Aruba Instant On AP17 Outdoor Access Points</li><li>Interconnected retail on a massive scale – The Home Depot</li></ul>
